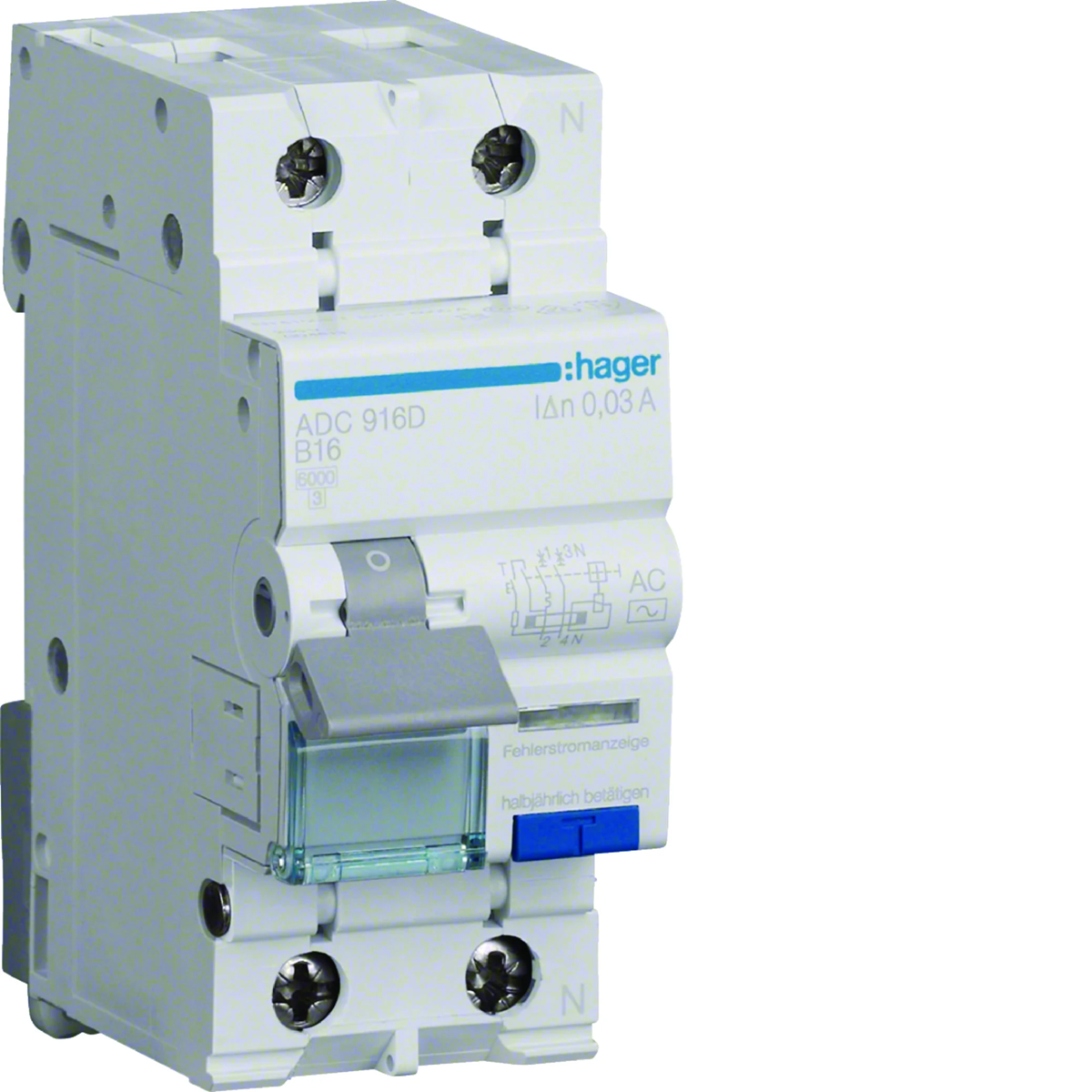

RCBO RCBO with overcurrent element 1P+N 6kA B 16A/30mA Type AC ADC916D

local index:
ARB459HAGE
Catalog No:
ADC916D
EAN code:
3250611010814
Manufacturer: HAGER
Level of security: IP20
Price:
40,54 €
gross / pcs.
(including VAT 23%)
Last lowest price: 40,54 € gross
Base price: 88,13 € gross -54%
Delivery in 3h
Accessible 120 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCBO RCBO with overcurrent element 1P+N 6kA B 16A/30mA Type AC

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    68 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    16 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to IEC 60947-2
    6 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,219 0,220 13,580 348,920
Width (m) 0,035 0,080 0,315 0,800
Length (m) 0,094 0,045 0,215 1,038
Depth (m) 0,070 0,100 0,360 1,200
