Electrical apparatus
RCDs
RCDs with protection
el12
sale
Get in the game - HAGER

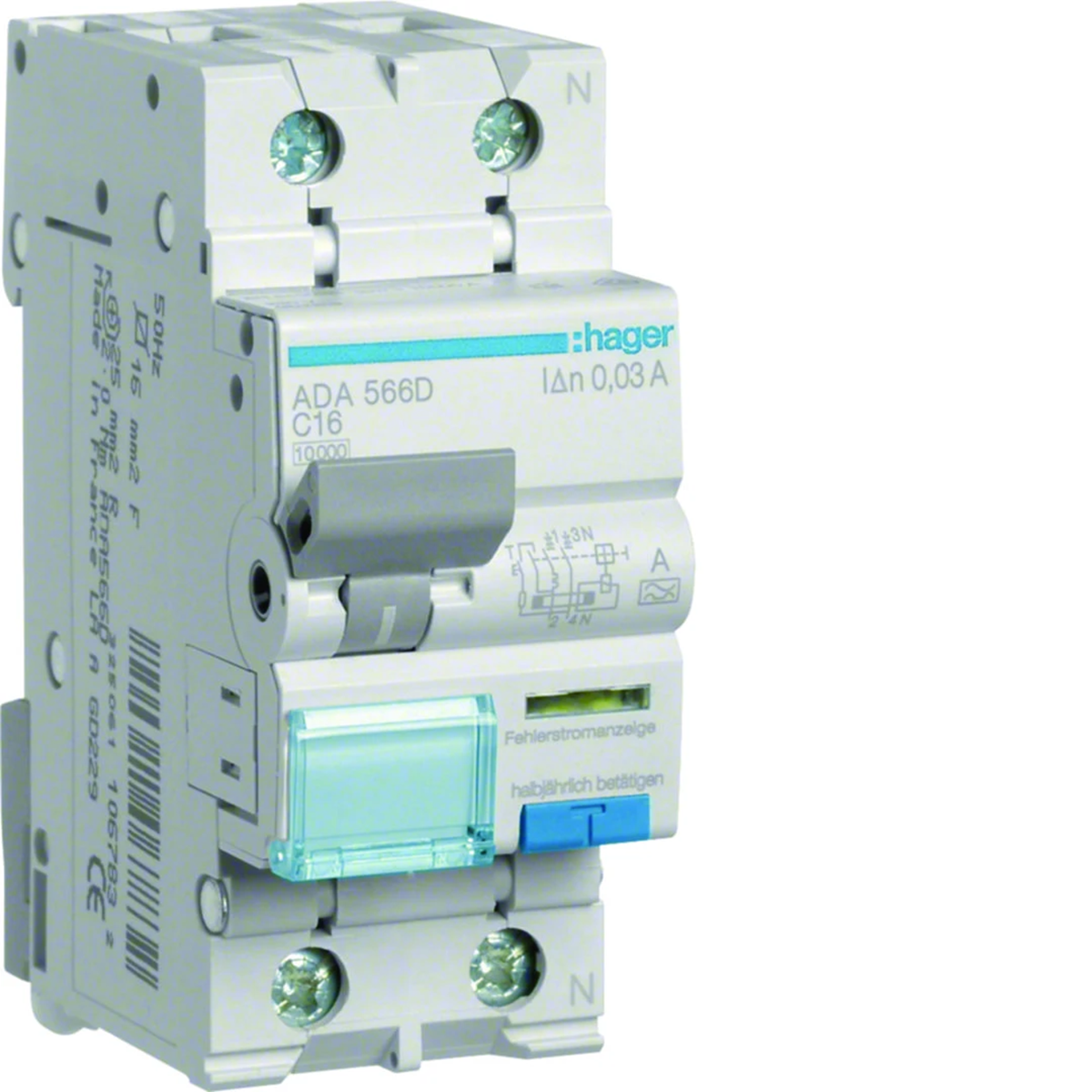

RCBO RCBO with overcurrent element 1P+N 10kA C 16A/30mA Type A ADA566D
Index local:
ARB001HAGE
Numéro de catalogue:
ADA566D
Code EAN:
3250611067832
Cliquer sur la photo pour l'agrandir
Producteur:
HAGER
Characteristic:
c
Rated frequency [Hz]:
50
Depth [mm]:
68
Voir la description complète
Prix:
561,45 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au panier
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Données techniques
Détails du fabricant
Emballage en vrac
Fichiers à télécharger
Description du produit
RCBO RCD with overcurrent element 1P+N 10kA C 16A/30mA Type A
Développer la description complète ▼
Données techniques
Characteristic
c
Depth [mm]
68
Tightening torque [Nm]
1.3
Differential current [mA]
thirty
Level of security
IP20
Power loss per pole [W]
3.8
Connection type
With a screw
Electrical endurance (number of cycles)
2000
Operating temperature range [°C]
from -25 to 40
Short-circuit breaking capacity [kA]
10
Number of modules
2
Ultimate short-circuit breaking capacity Icu for 230V [kA]
10
Rated current at 20°C [A]
16.5
Rated current at 40°C [A]
15.6
Rated current at 50°C [A]
15.2
Rated current at 60°C [A]
14.8
RCD type
AND
Rated current correction factor for 3 devices installed side by side
0.95
Number of protected poles
1
Conductor cross-section (wire) [mm²]
1 - 25
Rated frequency [Hz]
50
Number of poles
2
Rated insulation voltage [V]
500
Rated current [A]
16
power loss [W]
5.2
Width [mm]
35
Height [mm]
83
Mechanical durability (number of cycles)
2000
Rated switching voltage [V]
240
Rated short-circuit breaking capacity Icn [kA]
10
Max/min value of the AC current of the protection activation
5/10 In
Ultimate short-circuit breaking capacity Icu for 240V [kA]
10
Rated current at 30°C [A]
16
Rated current at 45°C [A]
15.4
Rated current at 55°C [A]
15
storage temperature [°C]
from -25 to 70
Rated current correction factor for 2 devices installed side by side
1
Rated surge voltage [V]
4000
Wire cross-section (cord) [mm²]
1 - 16
PKWIU
27.12.22.0
Autres données techniques
Number of poles (total)
2
Rated voltage
240 V
Rated impulse withstand voltage Uimp
4 kV
Rated fault current
0.03 A
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 61009-1
10 kA
Surge current capacity
0.25 kA
Frequency
50 Hz
Concurrently switching neutral conductor
Yes
Over voltage category
3
Ambient temperature during operating
-25 ... 40 °C
Built-in depth
68 mm
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 16 mm²
Number of protected poles
1
Rated insulation voltage Ui
500 V
Rated current
16 A
Leakage current type
A
Rated short-circuit breaking capacity according to IEC 60947-2
10 kA
Disconnection characteristic
Undelayed
Voltage type
AC
Release characteristic
C
With interlocking device
Yes
Pollution degree
2
Width in number of modular spacings
2
Anti-nuisance tripping version
No
Connectable conductor cross section solid-core
1 ... 25 mm²
Élargir les données techniques ▼
Détails du fabricant
Producteur
Hager Electro S.A.S.
Adresse
FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail
wsparcie.klienta@hager.com
Emballage en vrac
Une sorte de paquet
Karton
Pakiet
Paleta
Quantité
1 pcs.
60 pcs.
1440 pcs.
poids (kg)
0,220
13,320
319,680
Largeur (m)
0,080
0,320
0,800
Longueur (m)
0,040
0,210
1,020
Profondeur (m)
0,090
0,360
1,200
