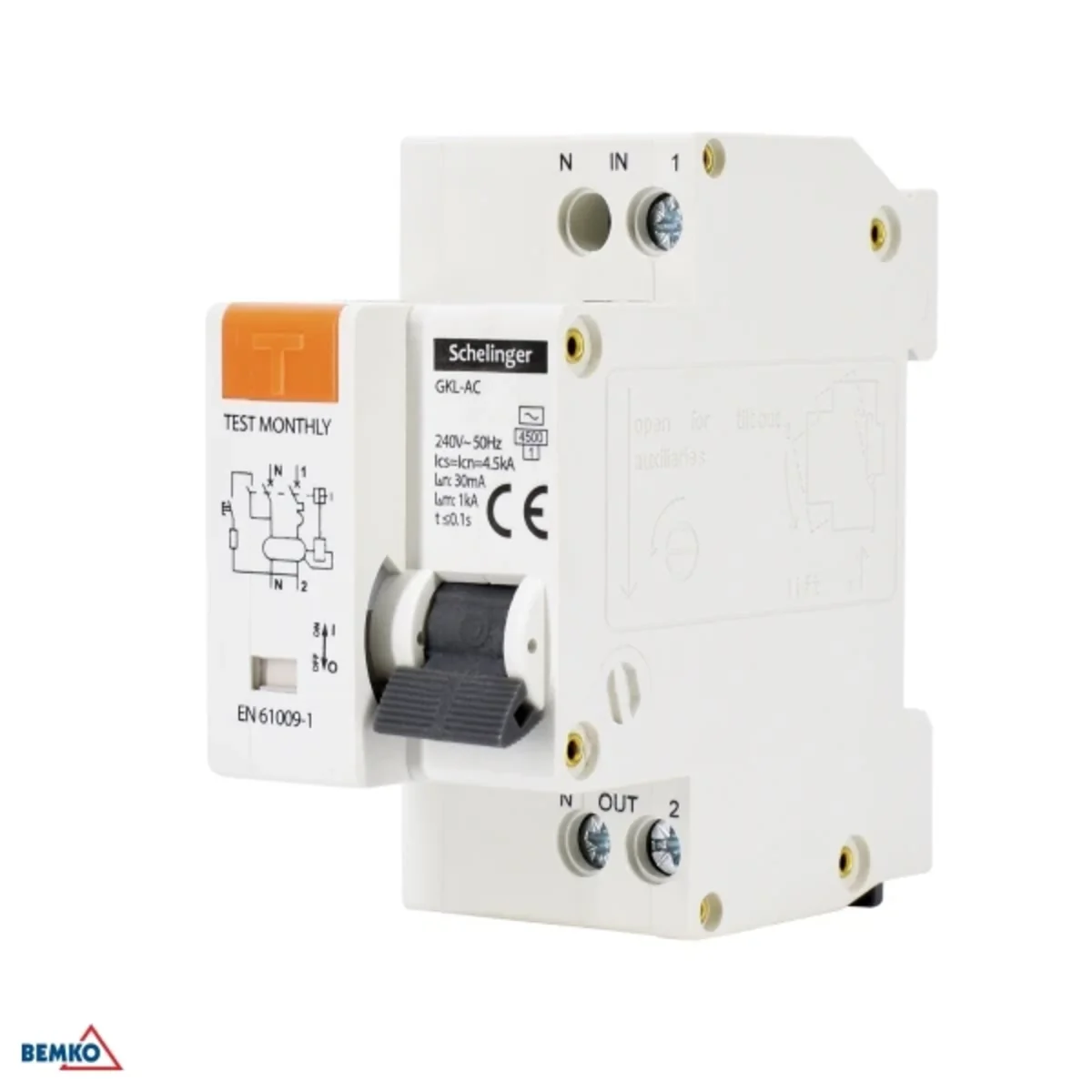

RCBO CIRCUIT BREAKER 2P B 16A 30mA TYPE AC SCHELINGER A08-GKL-AC-B16
local index:
ARB009BEMK
Catalog number:
A08-GKL-AC-B16
EAN code:
5900280962072
Manufacturer:
BEMKO
Price:
60,89 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Rated voltage240 V
-
Rated fault current0.03 A
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Degree of protection (IP)IP20
-
Built-in depth74 mm
-
Pollution degree2
-
Rated current16 A
-
Rated insulation voltage Ui500 V
-
Mounting methodDIN rail
-
Frequency50 Hz
-
Width in number of modular spacings2
-
Ambient temperature during operating-5 ... 40 °C
-
Connectable conductor cross section solid-core1 ... 6 mm²
Manufacturer details
-
ManufacturerBEMKO Sp. z o.o.
-
Address05-850 Jawczyce Bocznicowa 13 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka | Karton | Bez opakowania | Karton |
| Quantity | 1 pcs. | 60 pcs. | 1 pcs. | 60 pcs. |
| Weight (kg) | - | - | 0,167 | - |
| Width (m) | - | - | 0,036 | 0,250 |
| Length (m) | - | - | 0,077 | 0,510 |
| Depth (m) | - | - | 0,074 | 0,190 |
