RCBO CIRCUIT BREAKER 1P B 16A 30mA TYPE AC SCHELINGER A08-GKR-AC-B16

Name: RCBO CIRCUIT BREAKER 1P B 16A 30mA TYPE AC SCHELINGER
Brand: BEMKO
SKU: ARB012BEMK
Price: 108.38 PLN
Availability: BackOrder

local index:

ARB012BEMK

Catalog number:

A08-GKR-AC-B16

EAN code:

5900280961877

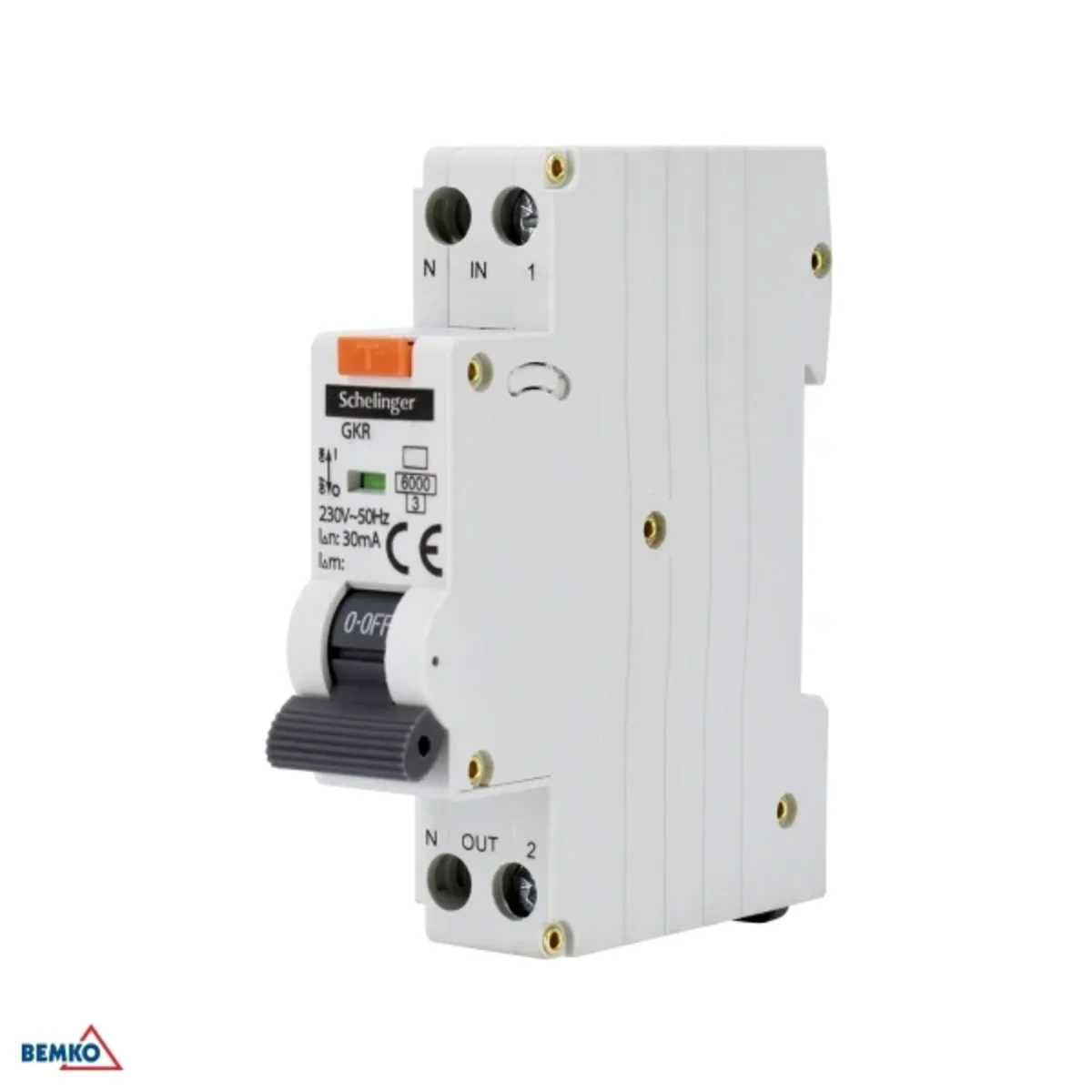

RCBO CIRCUIT BREAKER 1P B 16A 30mA TYPE AC SCHELINGER

Click on the photo to enlarge

Manufacturer: BEMKO

Price:

108,38 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Rated voltage

230 V
Rated fault current

0.03 A
Rated impulse withstand voltage Uimp

4 kV
Short-circuit breaking capacity (Icw)

6 kA
Frequency

50 Hz
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 40 °C
Connectable conductor cross section solid-core

1 ... 6 mm²

Rated current

16 A
Rated insulation voltage Ui

500 V
Mounting method

DIN rail
Voltage type

AC
Degree of protection (IP)

IP20
Built-in depth

67 mm
Pollution degree

2

Manufacturer details

Manufacturer

BEMKO Sp. z o.o.
Address

05-850 Jawczyce Bocznicowa 13 Polska
E-mail

bemko@bemko.pl

Bulk packaging

A kind of package	Pudełko	Karton	Bez opakowania	Karton
Quantity	12 pcs.	120 pcs.	1 pcs.	120 pcs.
Weight (kg)	-	-	0,092	-
Width (m)	-	-	0,018	0,238
Length (m)	-	-	0,081	0,478
Depth (m)	-	-	0,067	0,175
