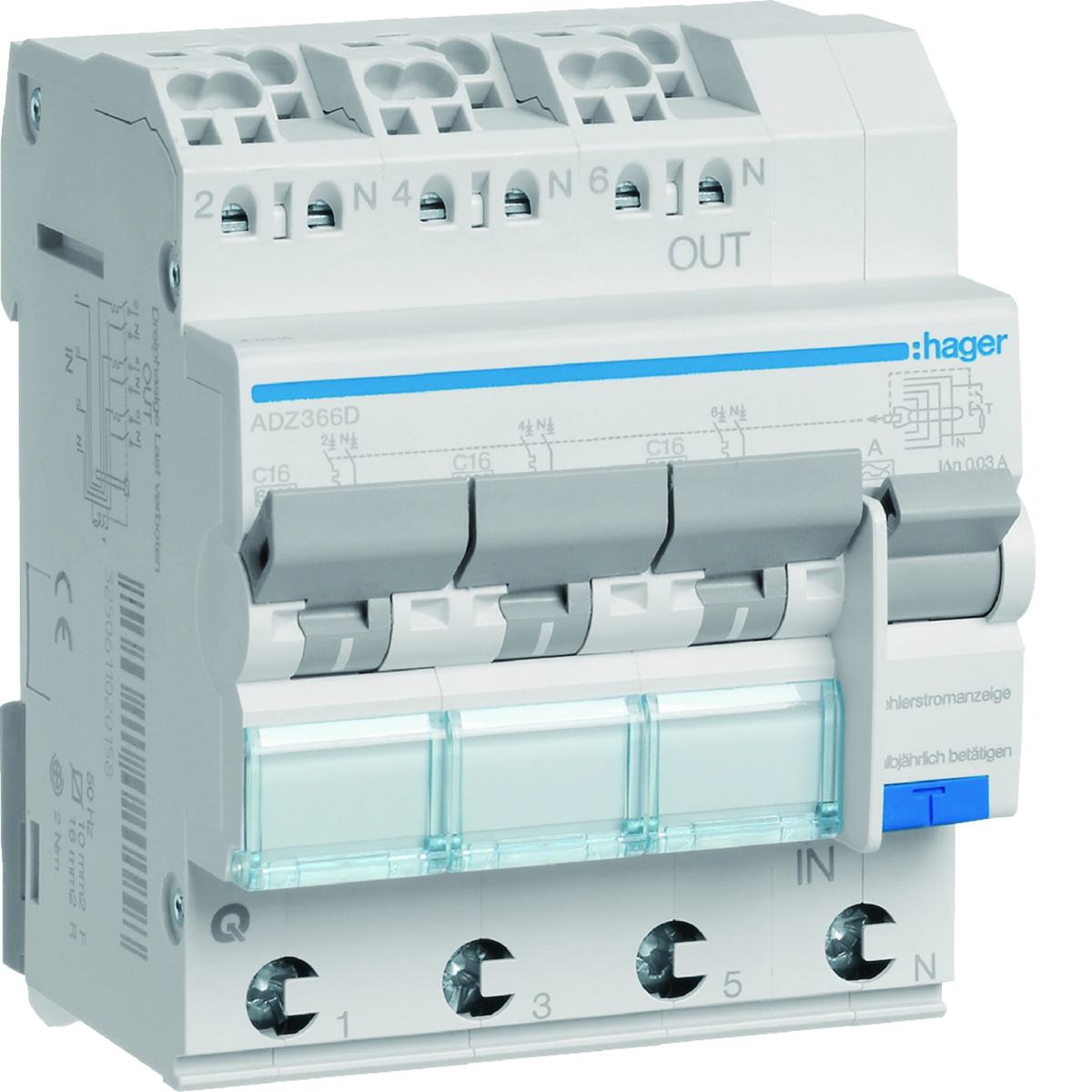

RCBO 3 - 3 x 1P+N 6kA C-16A 30mA A QC/QBB RCD with overcurrent element ADZ366D

local index:
ARB100HAGE
Catalog No:
ADZ366D
EAN code:
3250611020189
Manufacturer: HAGER
Characteristic: c
Rated frequency [Hz]: 50
Depth [mm]: 70
Price:
128,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCBO 3 - 3 x 1P+N 6kA C-16A 30mA A QC/QBB RCD with overcurrent element

Technical data

  • Characteristic
    c
  • Depth [mm]
    70
  • Tightening torque [Nm]
    2
  • Differential current [mA]
    thirty
  • Level of security
    IP20
  • Power loss per pole [W]
    3
  • Height [mm]
    86
  • Mechanical durability (number of cycles)
    2000
  • Rated switching voltage [V]
    230
  • Short-circuit breaking capacity [kA]
    6
  • Number of modules
    4
  • Input terminal capacity (cord) [mm²]
    1/4
  • Output terminal capacity (cord) [mm²]
    1/10
  • Rated current at 20°C [A]
    17
  • Rated current at 40°C [A]
    15.5
  • Rated current at 50°C [A]
    15
  • Rated current at 60°C [A]
    14.4
  • Rated current at 70°C [A]
    13.9
  • storage temperature [°C]
    from -55 to 70
  • RCD type
    AND
  • Rated current correction factor for 3 devices installed side by side
    0.8
  • PKWIU
    27.12.22.0
  • Rated frequency [Hz]
    50
  • Number of poles
    4
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    16
  • power loss [W]
    10.9
  • Width [mm]
    71
  • Electrical endurance (number of cycles)
    2000
  • Operating temperature range [°C]
    from -5 to 40
  • Rated impulse voltage [kV]
    4
  • Rated short-circuit breaking capacity Icn [kA]
    6
  • Max/min value of the AC current of the protection activation
    5/10 In
  • Input terminal capacitance (wire) [mm²]
    1/4
  • Output terminal capacitance (wire) [mm²]
    1/16
  • Rated current at 30°C [A]
    16
  • Rated current at 45°C [A]
    15.2
  • Rated current at 55°C [A]
    14.7
  • Rated current at 65°C [A]
    14.1
  • Operating short-circuit breaking current Ics [kA]
    6
  • Supply voltage type
    AC
  • Rated current correction factor for 2 devices installed side by side
    0.8
  • Number of protected poles
    3

Other technical data

  • Number of poles (total)
    4
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Anti-nuisance tripping version
    No
  • Number of protected poles
    3
  • Rated insulation voltage Ui
    500 V
  • Rated current
    16 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    3 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 70 °C
  • Built-in depth
    70 mm
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,400 0,420 15,470 394,280
Width (m) 0,071 0,075 0,315 0,800
Length (m) 0,088 0,080 0,229 1,066
Depth (m) 0,074 0,095 0,360 1,200
