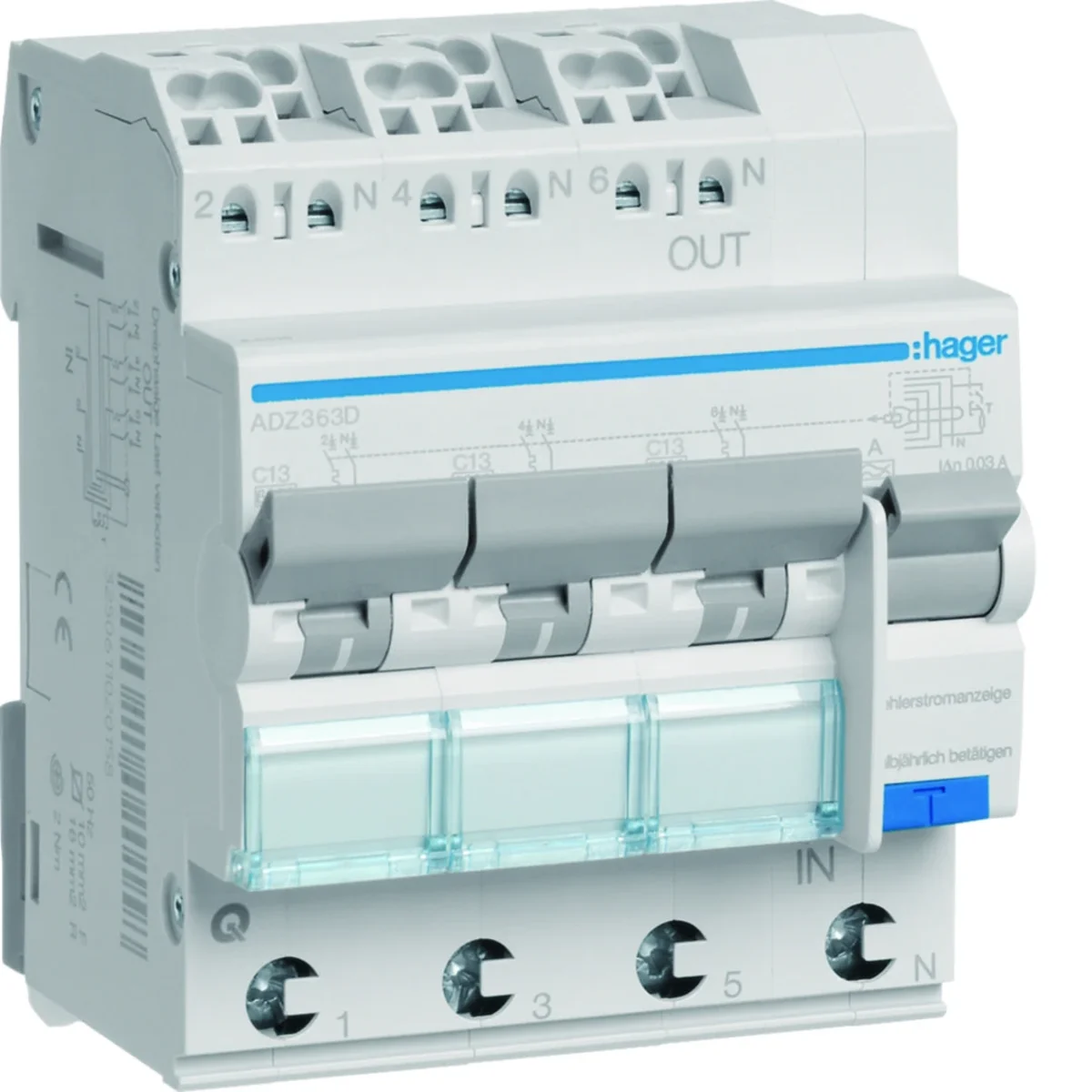

RCBO 3 - 3 x 1P+N 6kA C-13A 30mA A QC/QBB RCD with overcurrent element ADZ363D
local index:
ARB099HAGE
Catalog No:
ADZ363D
EAN code:
3250611020172
Price:
128,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCBO 3 - 3 x 1P+N 6kA C-13A 30mA A QC/QBB RCD with overcurrent element
Technical data
-
Characteristicc
-
Depth [mm]70
-
Tightening torque [Nm]2
-
Differential current [mA]thirty
-
Level of securityIP20
-
Power loss per pole [W]2.8
-
Height [mm]86
-
Mechanical durability (number of cycles)2000
-
Rated switching voltage [V]230
-
Short-circuit breaking capacity [kA]6
-
Number of modules4
-
Input terminal capacity (cord) [mm²]1/4
-
Output terminal capacity (cord) [mm²]1/10
-
Rated current at 20°C [A]13.8
-
Rated current at 40°C [A]12.7
-
Rated current at 50°C [A]12.4
-
Rated current at 60°C [A]12.1
-
Rated current at 70°C [A]11.7
-
storage temperature [°C]from -55 to 70
-
RCD typeAND
-
Rated current correction factor for 3 devices installed side by side0.8
-
PKWIU27.12.22.0
-
Rated frequency [Hz]50
-
Number of poles4
-
Rated insulation voltage [V]500
-
Rated current [A]13
-
power loss [W]9.6
-
Width [mm]71
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -5 to 40
-
Rated impulse voltage [kV]4
-
Rated short-circuit breaking capacity Icn [kA]6
-
Max/min value of the AC current of the protection activation5/10 In
-
Input terminal capacitance (wire) [mm²]1/4
-
Output terminal capacitance (wire) [mm²]1/16
-
Rated current at 30°C [A]13
-
Rated current at 45°C [A]12.5
-
Rated current at 55°C [A]12.2
-
Rated current at 65°C [A]11.9
-
Operating short-circuit breaking current Ics [kA]6
-
Supply voltage typeAC
-
Rated current correction factor for 2 devices installed side by side0.8
-
Number of protected poles3
Other technical data
-
Number of poles (total)4
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceYes
-
Pollution degree2
-
Width in number of modular spacings4
-
Anti-nuisance tripping versionNo
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Rated current13 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity3 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 70 °C
-
Built-in depth70 mm
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,413 | 0,417 | 15,452 | 395,848 |
| Width (m) | 0,071 | 0,079 | 0,315 | 0,800 |
| Length (m) | 0,088 | 0,080 | 0,230 | 1,070 |
| Depth (m) | 0,074 | 0,094 | 0,365 | 1,200 |
