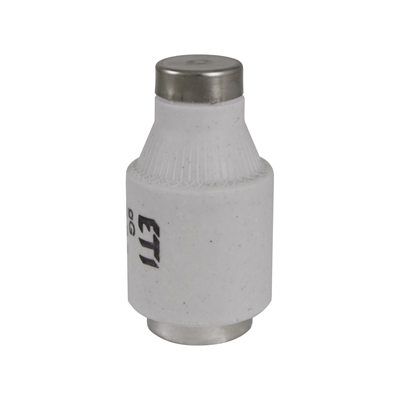

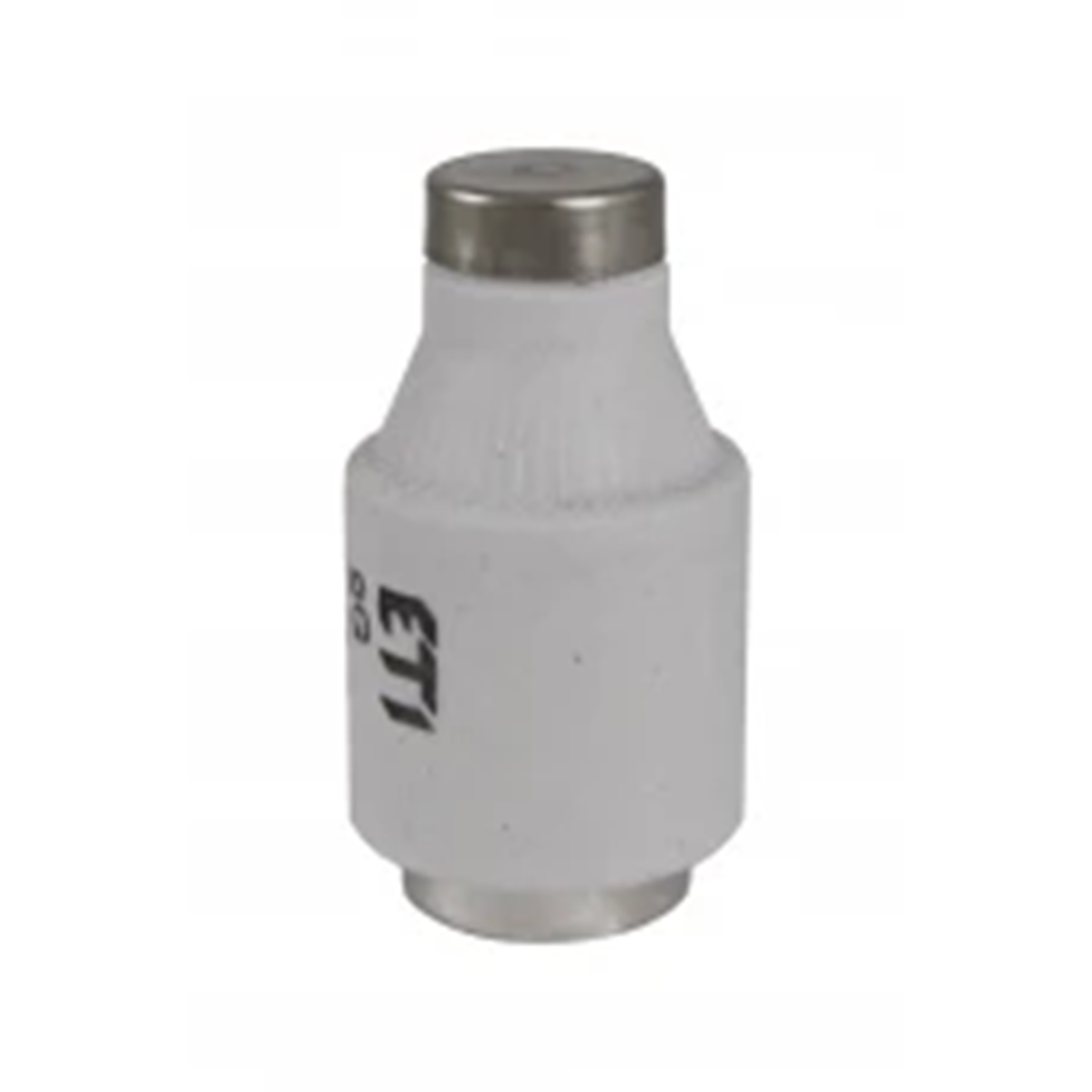

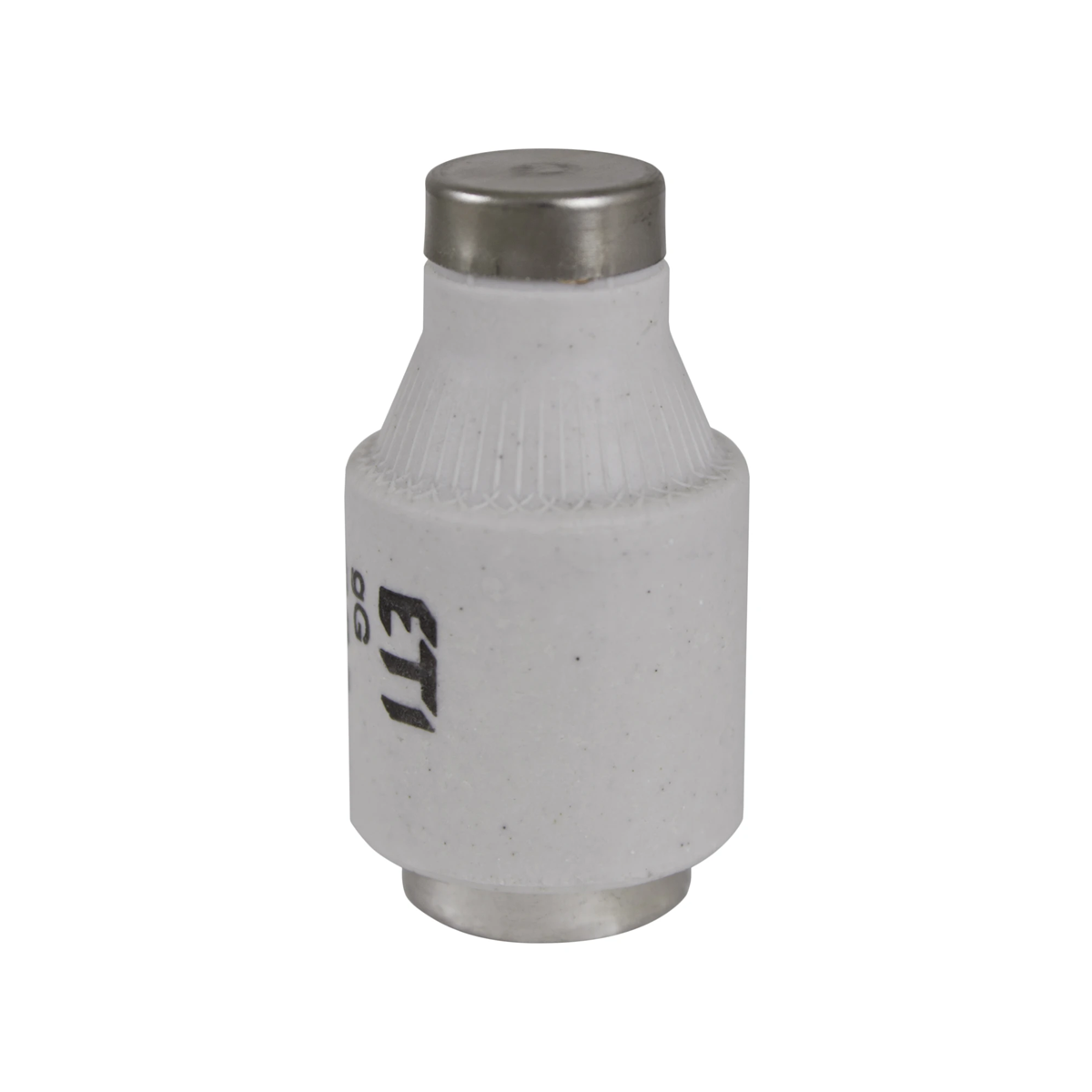

Quick fuse link DIII/gF 63A 500 002313103

local index:
ABI015ETIP
Catalog No:
002313103
EAN code:
5904722905160
Manufacturer: ETI POLAM
Characteristic: gF
Rated voltage [V]: 500
Rated current [A]: 63
Price:
2,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 104 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - System D fuse-links are designed to be replaced by non-qualified persons (mainly for household and similar applications).  They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing clamps in sockets,

→ sockets with a TH rail holder.

Technical data

  • Characteristic
    gF
  • Rated current [A]
    63
  • Type
    DIII/gF 63A 500
  • PKWIU
    27.12.21.0
  • Rated voltage [V]
    500
  • Size
    DIII
  • Compliance with standards
    PN-IEC 269-1, EN 60269, PN-87/E-93100

Other technical data

  • Construction size
    DIII
  • Rated voltage
    500 V
  • Utilization category
    Other
  • Rated current
    63 A
  • Colour code
    Copper
  • Release characteristic
    Fast (F)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 5 pcs. 250 pcs.
Weight (kg) 0,270 -
Volume (m3) 0,000 -
Width (m) 0,030 -
Length (m) 0,155 -
Depth (m) 0,050 -
