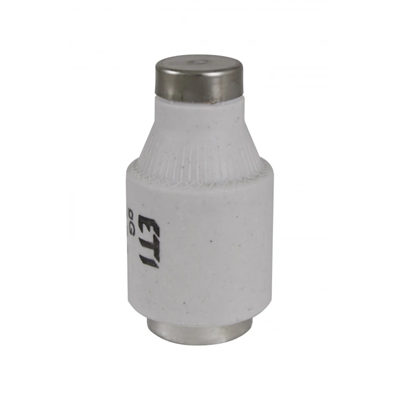

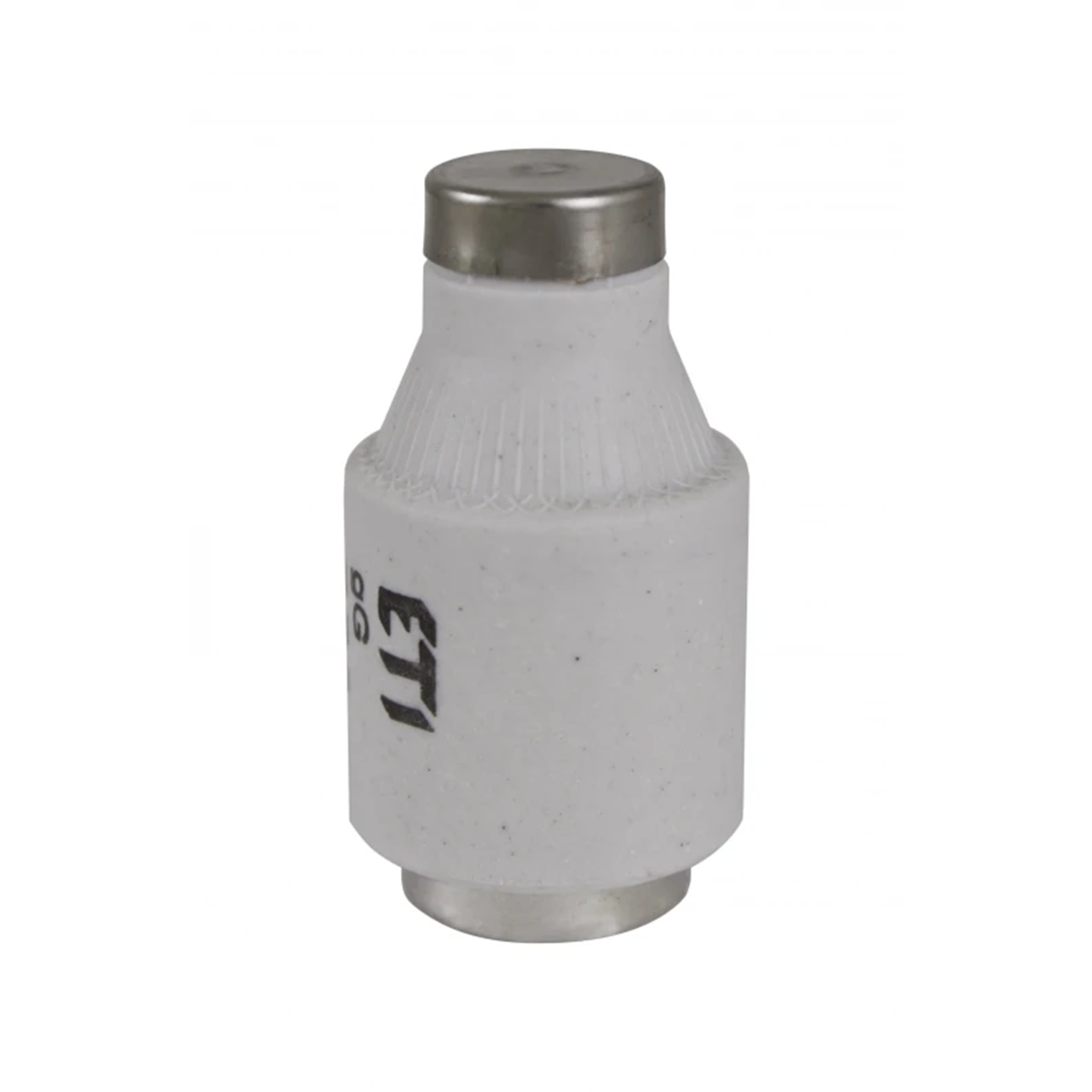

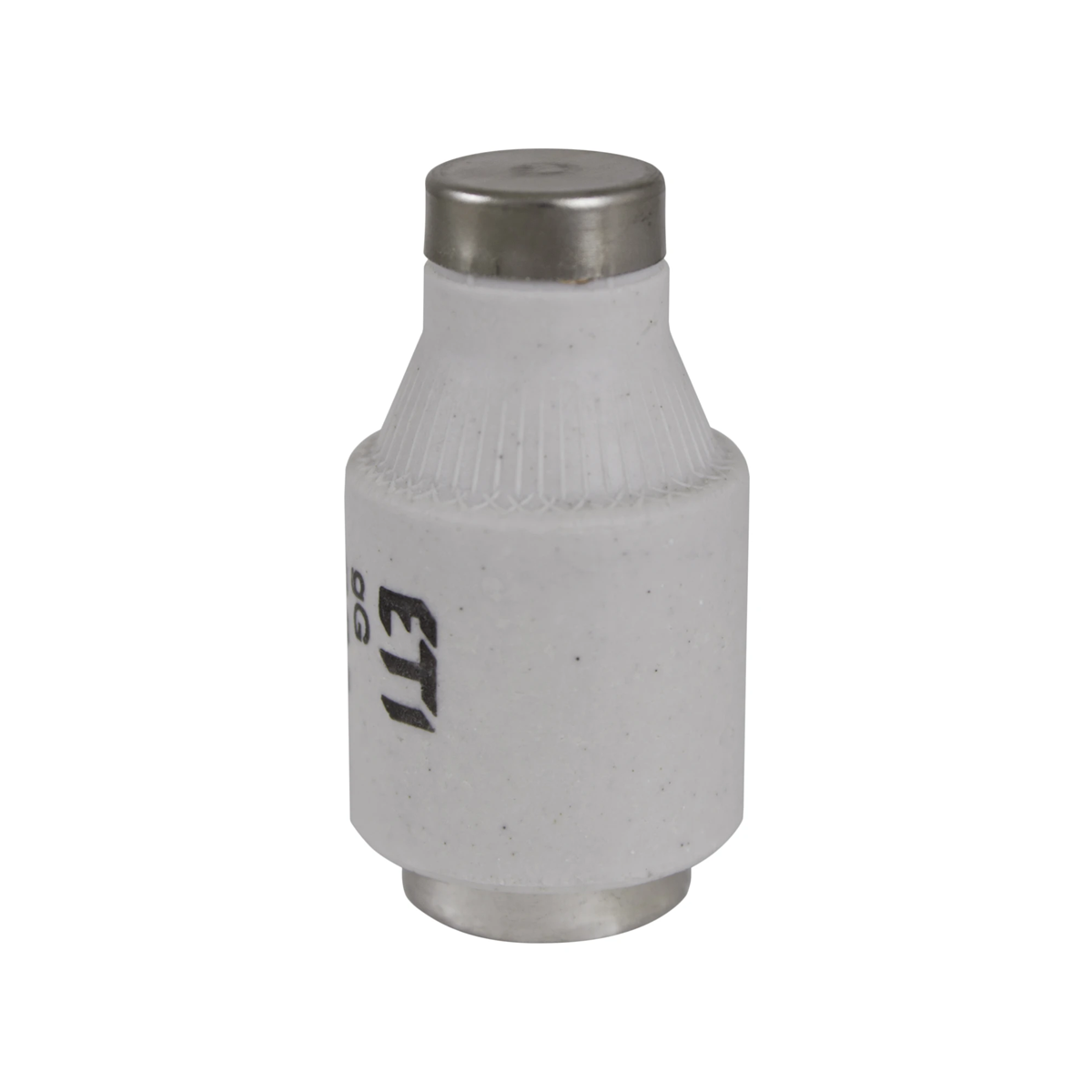

Quick fuse link DIII/gF 35A 500 002313101

Índice local:
ABI074ETIP
Número de catálogo:
002313101
Código EAN:
5904722905122
Fabricante: ETI POLAM
Characteristic: gF
Rated voltage [V]: 500
Rated current [A]: 35
Precio:
1,33 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Accesible 201 uds.
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

Application - System D fuse-links are designed to be replaced by unskilled persons (mainly for household and similar applications).  They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing terminals in sockets,
→ sockets with a TH rail holder.

Datos técnicos

  • Characteristic
    gF
  • Rated current [A]
    35
  • PKWIU
    27.12.21.0
  • Rated voltage [V]
    500
  • Size
    DIII

Otros datos técnicos

  • Construction size
    DIII
  • Rated voltage
    500 V
  • Utilization category
    Other
  • Rated current
    35 A
  • Colour code
    Black
  • Release characteristic
    Fast (F)

Detalles del fabricante

Empaquetado a granel

una especie de paquete Pudełko Pudełko
Cantidad 1 uds. 5 uds. 250 uds.
Peso (kg) 0,048 0,270 -
Volumen (m3) - 0,000 -
Ancho (m) - 0,030 -
Longitud (m) - 0,155 -
Profundidad (m) - 0,050 -
