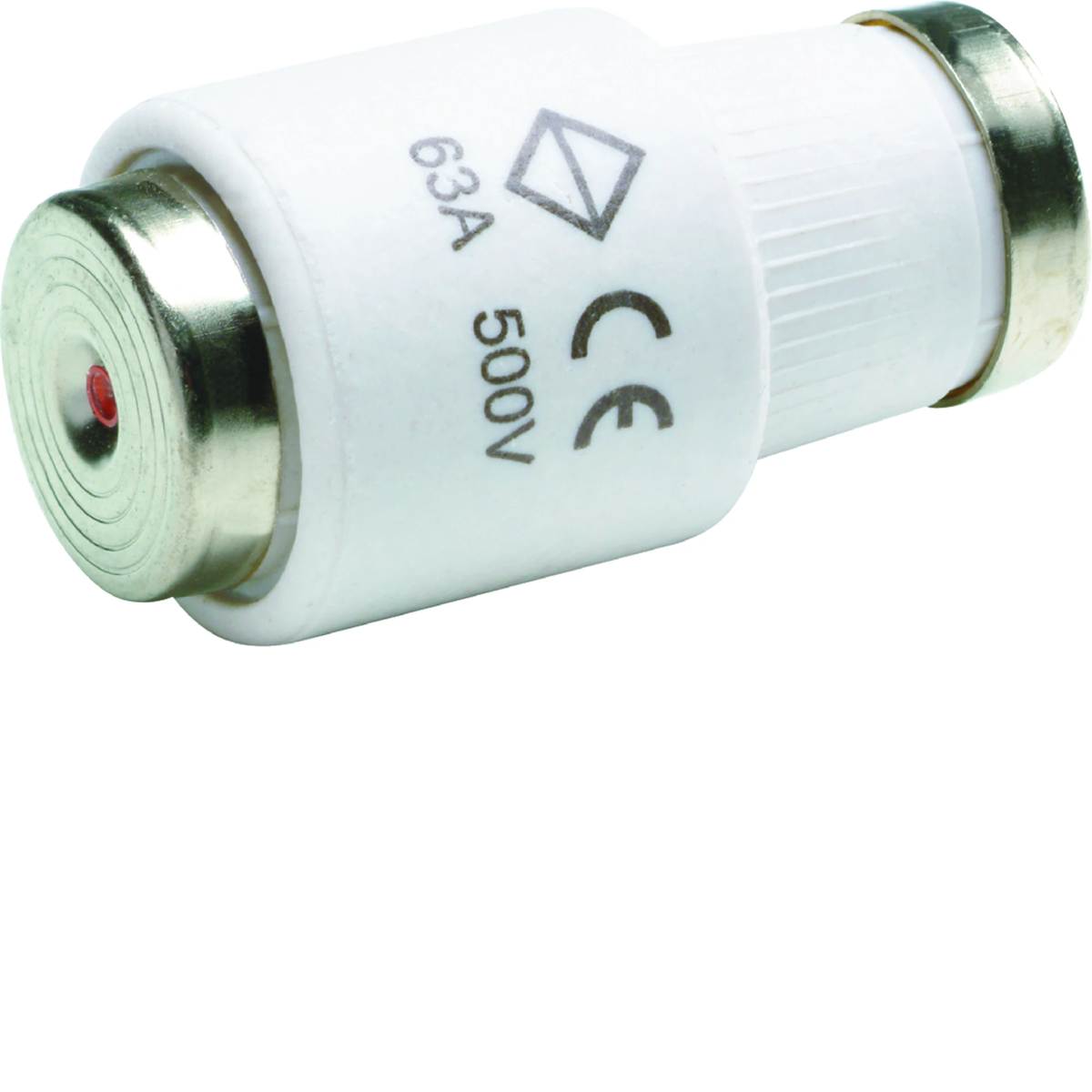

Quick fuse DIII/E33 Bi-Wts 63A 500V LE33F63

local index:
ABI211HAGE
Catalog No:
LE33F63
EAN code:
3250614133152
Manufacturer: HAGER
Length [mm]: 49
DC operating voltage [V]: 0/500/550
Rated current [A]: 63
Price:
1,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse link:

  • fast
  • E33
  • Bi-Wts
  • characteristics trigger: flink (F)

Technical data

  • Length [mm]
    49
  • Rated current [A]
    63
  • Width [mm]
    28
  • Height [mm]
    28
  • Rated short-circuit breaking capacity Icn [kA]
    50
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    6.9
  • Fuse link size
    DIII
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    DIII
  • Rated voltage
    500 V
  • Utilization category
    Other
  • Rated current
    63 A
  • Colour code
    Copper
  • Release characteristic
    Fast (F)

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 250 pcs. 10000 pcs.
Weight (kg) 0,049 0,265 13,560 565,400
Width (m) 0,028 0,050 0,280 0,800
Length (m) 0,028 0,030 0,160 0,950
Depth (m) 0,050 0,135 0,290 1,200
