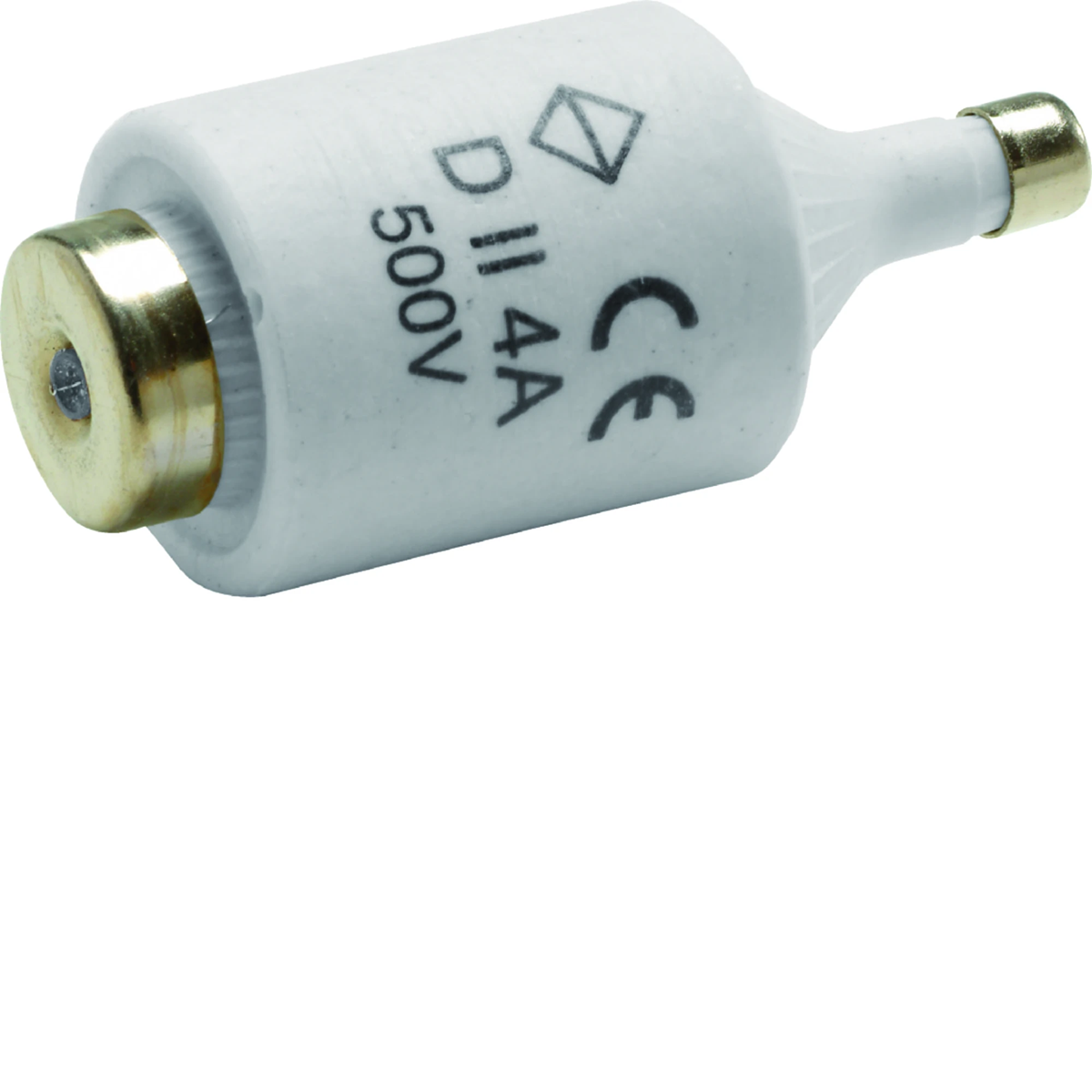

Quick fuse DII/E27 Bi-Wts 4A LE27F04

local index:
ABI193HAGE
Catalog No:
LE27F04
EAN code:
3250614133077
Manufacturer: HAGER
Length [mm]: 49
DC operating voltage [V]: 0/500/550
Rated current [A]: 4
Price:
0,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse link:

  • fast
  • E27
  • Bi-Wts
  • characteristics trigger: flink (F)

Technical data

  • Length [mm]
    49
  • Rated current [A]
    4
  • Width [mm]
    22.5
  • Height [mm]
    22.5
  • Rated short-circuit breaking capacity Icn [kA]
    50
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    2
  • Fuse link size
    DII
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    DII
  • Rated voltage
    500 V
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Rated current
    4 A
  • Colour code
    Brown
  • Release characteristic
    Fast (F)

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 250 pcs. 15000 pcs.
Weight (kg) 0,026 0,145 7,260 458,600
Width (m) 0,023 0,050 0,245 0,800
Length (m) 0,023 0,025 0,130 0,540
Depth (m) 0,050 0,110 0,275 1,200
