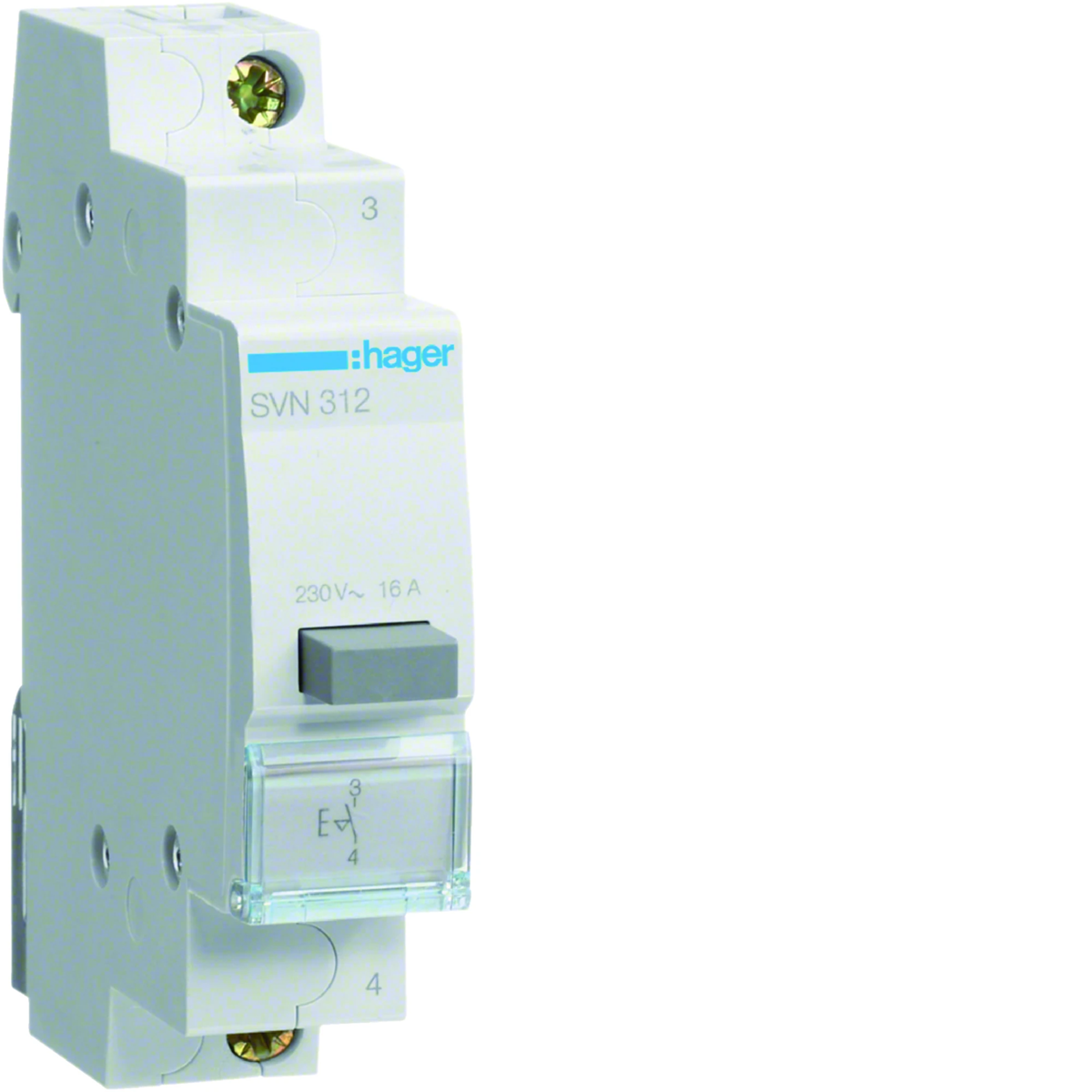

Push button switch 16A 1NO SVN312
local index:
AKS101HAGE
Catalog No:
SVN312
EAN code:
3250615721778
Price:
16,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Push-button connector 16A, 1Z.
Technical data
-
Number of modules1
-
Rated voltage [V]230
-
Rated current [A]16
-
PKWIU27.33.11.0
-
Surge voltage [kV]4000
-
Rated insulation voltage [V]250
-
Number of modules1
Other technical data
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact0
-
Switching voltage230 V
-
With signal lampNo
-
Colour buttonGrey
-
Built-in depth66 mm
-
Number of contacts as normally open contact1
-
Switching current16 A
-
Voltage typeAC
-
Max. lamp power0 W
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,696 | 8,850 | 235,400 |
| Width (m) | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,080 | 0,235 | 1,070 |
| Depth (m) | 0,225 | 0,365 | 1,200 |
