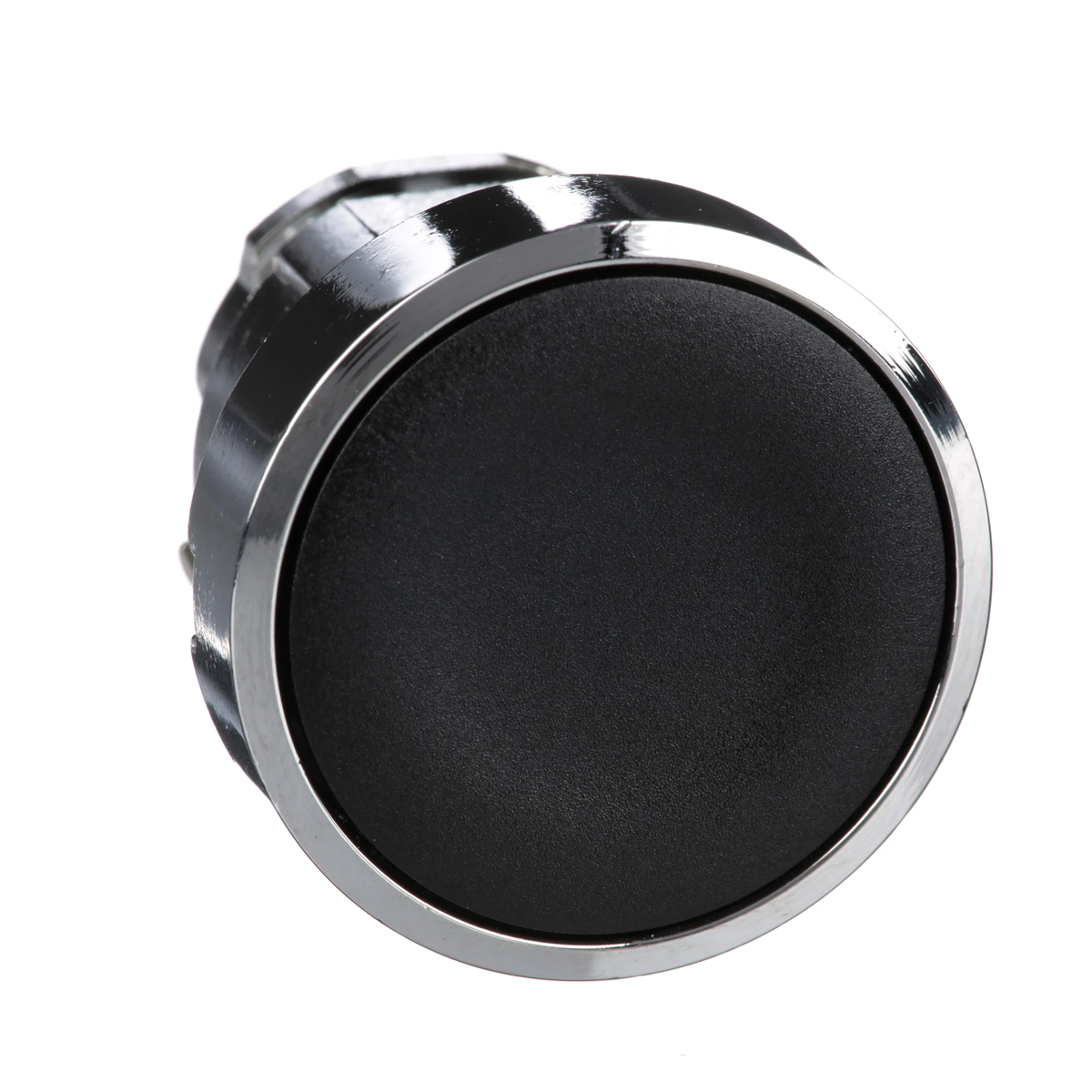

Push-button actuator, black ZB4BA2

local index:
AKS211SCHN
Catalog No:
ZB4BA2
EAN code:
3389110887464
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 31
Width [mm]: 29
Mounting diameter [mm]: 22
Price:
13,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push-button actuator, black

Technical data

  • Depth [mm]
    31
  • Mounting diameter [mm]
    22
  • PKWIU
    27.11.61.0
  • Width [mm]
    29
  • Height [mm]
    29

Other technical data

  • Colour button
    Black
  • Construction type lens
    Round
  • Type of button
    Flat
  • With protective cover
    No
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA), front side
    13
  • Number of command positions
    1
  • Hole diameter
    22.5 mm
  • Suitable for illumination
    No
  • Labelled
    No
  • Spring-return
    Yes
  • Material front ring
    Metal
  • Degree of protection (IP), front side
    IP66
