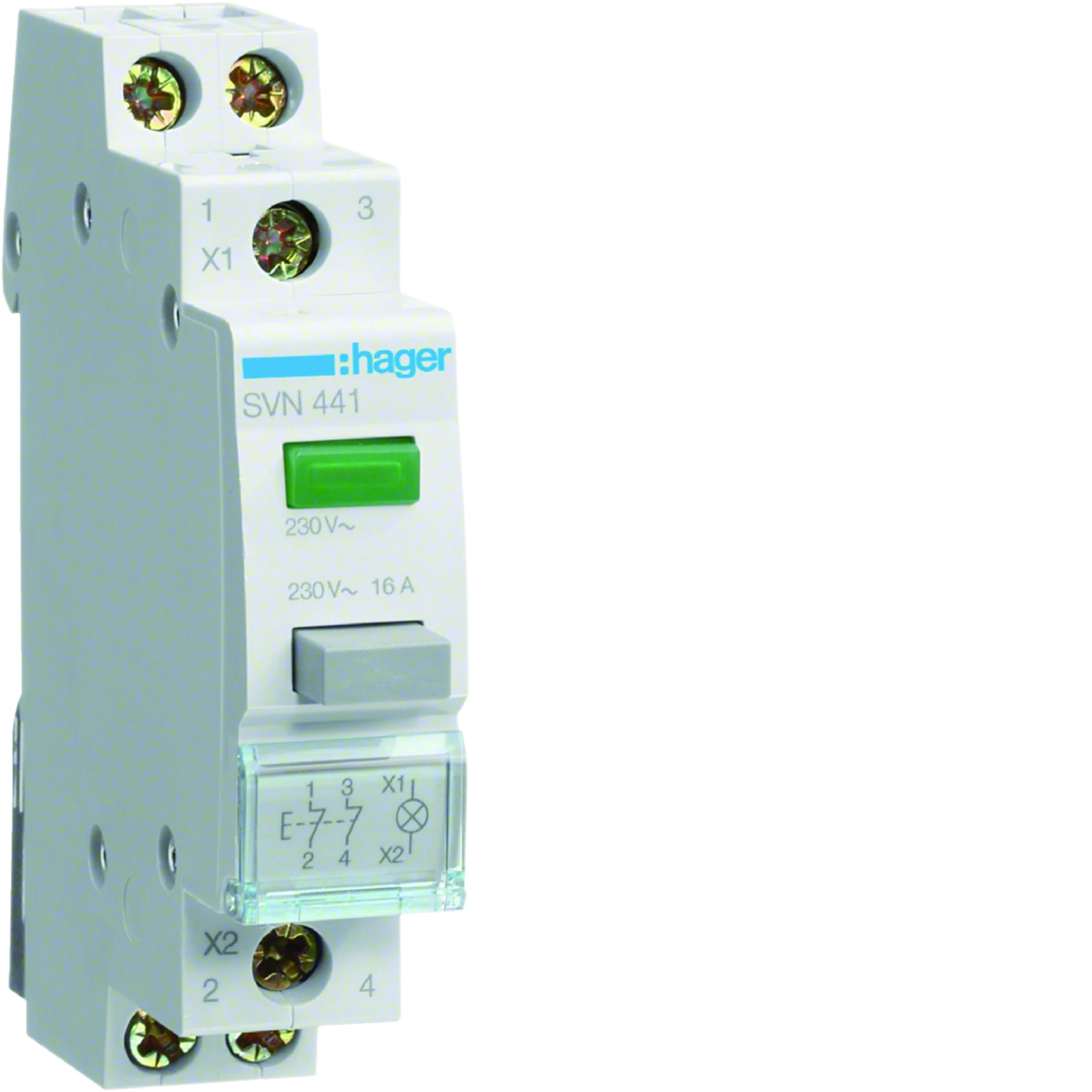

Push-button 16A, 2R, with green indicator light 230V AC SVN441

local index:
AKS022HAGE
Catalog No:
SVN441
EAN code:
3250615722010
Manufacturer: HAGER
Rated frequency [Hz]: 60
Depth [mm]: 66
Color: Green
Price:
27,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Twoja hurtownia Choose your wholesaler
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push-button 16A, 2R, with green indicator light 230V AC

Technical data

  • Rated frequency [Hz]
    60
  • Color
    Green
  • Rated insulation voltage [V]
    250
  • Level of security
    IP20
  • Width [mm]
    17.5
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    15000
  • Rated switching voltage [V]
    230
  • storage temperature [°C]
    From -40 to 80
  • Wire cross-section (cord) [mm²]
    0.75 - 6
  • PKWIU
    27.33.11.0
  • Depth [mm]
    66
  • Tightening torque [Nm]
    1.7
  • Rated current [A]
    16
  • power loss [W]
    0.8
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    15000
  • Operating temperature range [°C]
    from -20 to 50
  • Number of modules
    1
  • Rated surge voltage [V]
    4000
  • Conductor cross-section (wire) [mm²]
    0.75 - 10

Other technical data

  • Number of contacts as normally closed contact
    2
  • Number of contacts as change-over contact
    0
  • Switching voltage
    230 V
  • With signal lamp
    Yes
  • Lamp type
    LED
  • Colour button
    Grey
  • Built-in depth
    66 mm
  • Number of contacts as normally open contact
    0
  • Switching current
    16 A
  • Voltage type
    AC
  • Colour calotte
    Green
  • Lamp voltage
    230 ... 230 V
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,068 0,865 10,820 284,680
Width (m) 0,018 0,097 0,315 0,800
Length (m) 0,083 0,082 0,239 1,106
Depth (m) 0,072 0,228 0,370 1,200
