Push button 16A, 1R, with red indicator light 230VAC SVN422
local index:
AKS008HAGE
Catalog No:
SVN422
EAN code:
3250615721969
Price:
26,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

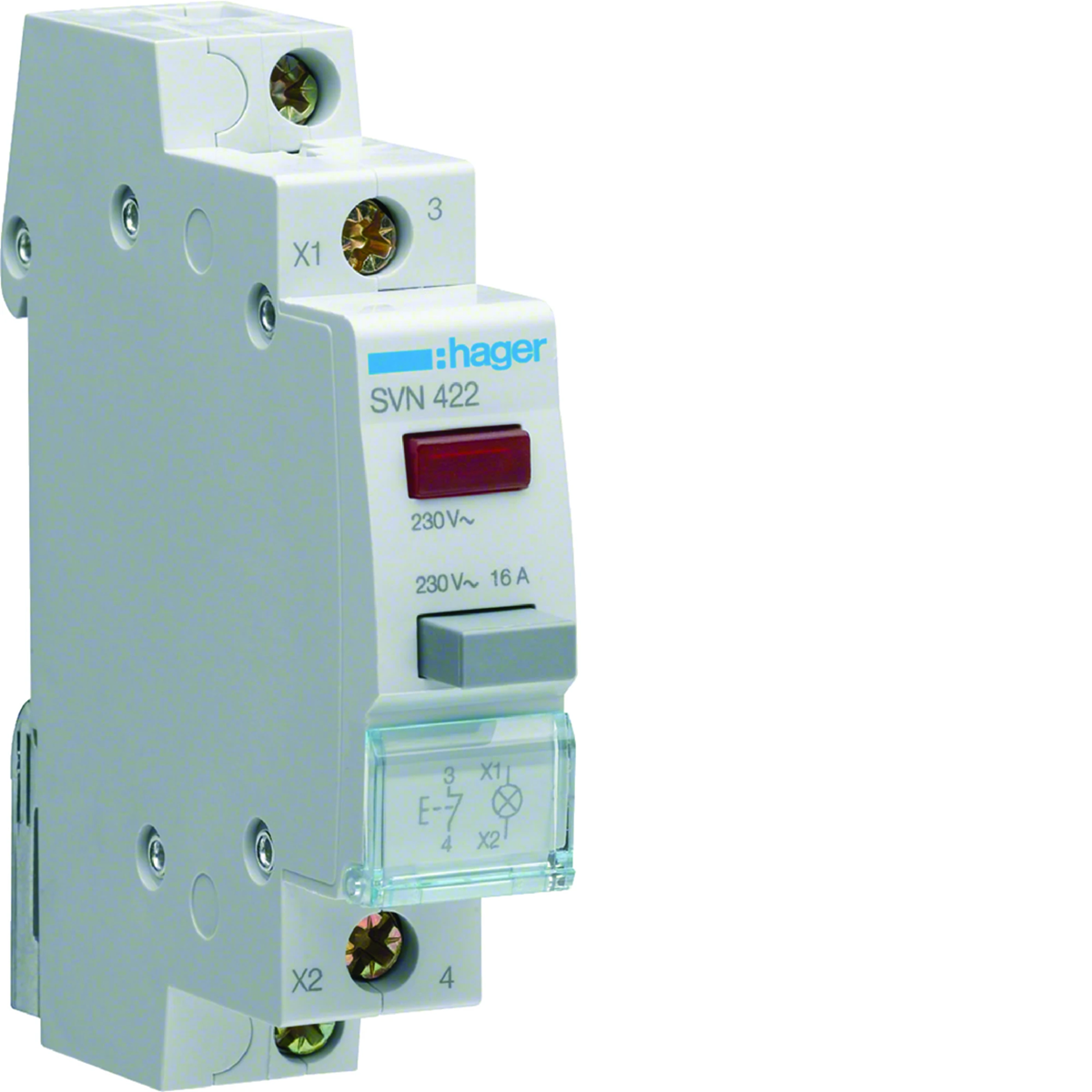

Push button 16A, 1R, with red indicator light 230VAC
Technical data
-
Rated frequency [Hz]50/60
-
Number of NC contacts1
-
Rated current [A]16
-
Width [mm]17.5
-
Height [mm]83
-
Mechanical durability (number of cycles)15000
-
Source of lightLED
-
Number of modules1
-
PKWIU27.33.11.0
-
Depth [mm]66
-
Rated insulation voltage [V]250
-
Power dissipation [W]0.8
-
Working temperature [°C]-20 to 50
-
Electrical endurance (number of cycles)15000
-
Rated impulse voltage [kV]4
-
Connection typeWith a screw
-
AC rated voltage [V]230
Other technical data
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Switching voltage230 V
-
With signal lampYes
-
Lamp typeLED
-
Colour buttonGrey
-
Built-in depth66 mm
-
Number of contacts as normally open contact0
-
Switching current16 A
-
Voltage typeAC
-
Colour calotteRed
-
Lamp voltage230 ... 230 V
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,800 | 10,065 | 264,560 |
| Width (m) | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,080 | 0,235 | 1,050 |
| Depth (m) | 0,220 | 0,365 | 1,200 |
