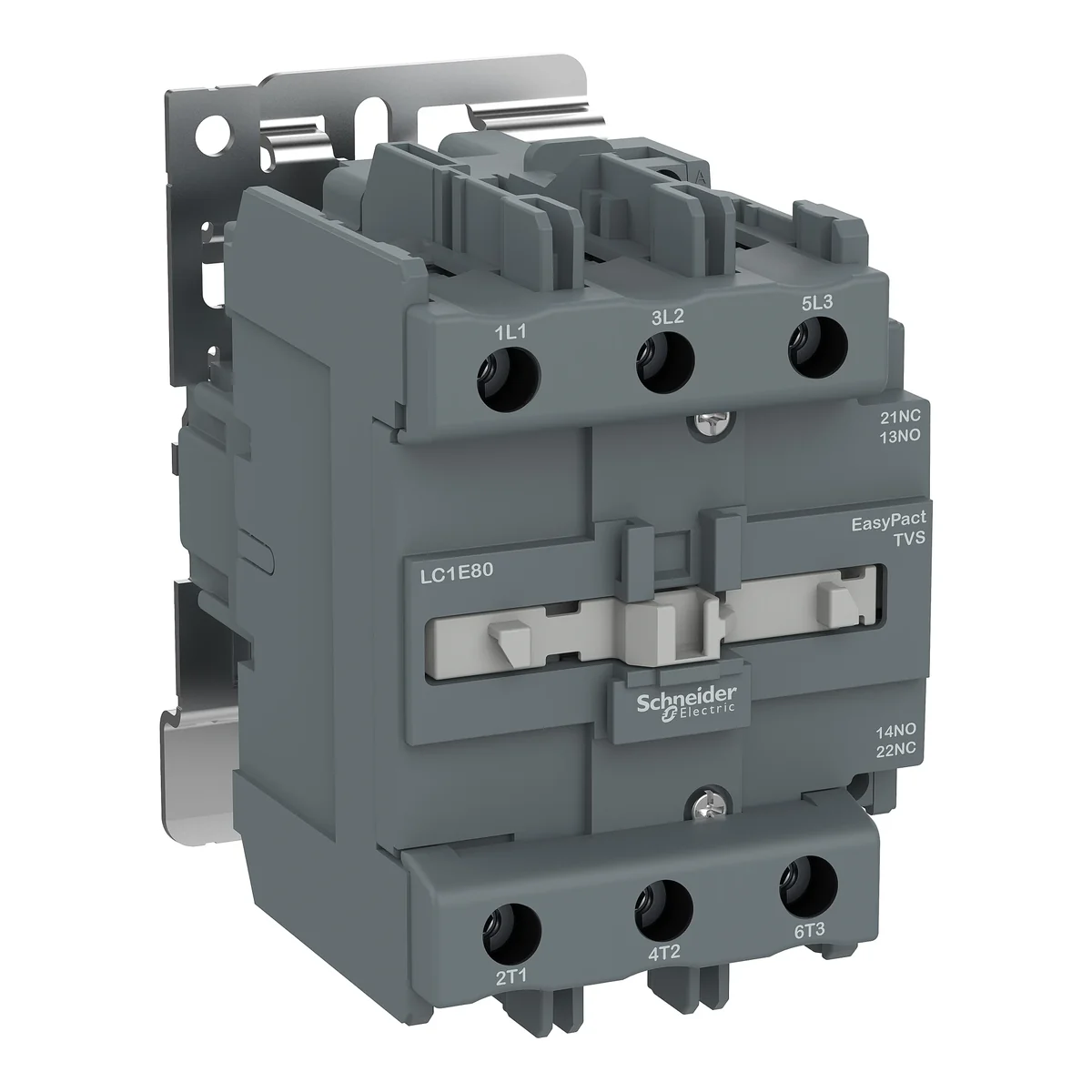

Power contactor TeSys TVS AC3 80A 3P 1NO 1NC coil 220V 50HZ LC1E80M5

local index:
ATA987SCHN
Catalog No:
LC1E80M5
EAN code:
3606480339295
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 3
Price:
158,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys TVS AC3 80A 3P 1NO 1NC coil 220V 50HZ

Technical data

  • Number of poles
    3
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    220 ... 220 V
  • Rated operation current Ie at AC-1, 400 V
    110 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    80 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
