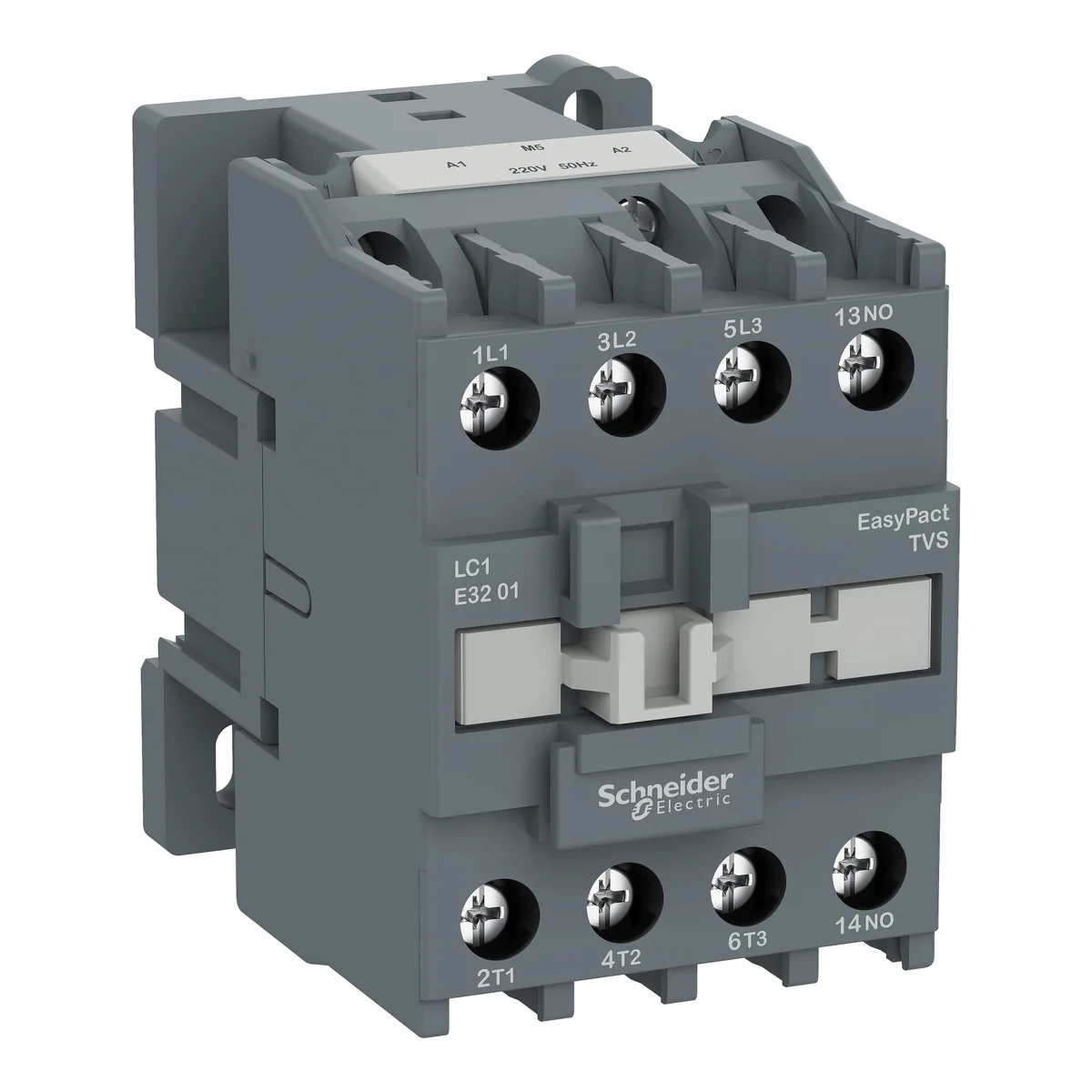

Power contactor TeSys TVS AC3 32A 3P 1NO coil 220V 50HZ LC1E3210M5
local index:
ATA975SCHN
Catalog No:
LC1E3210M5
EAN code:
3606480328800
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles: 3
Price:
57,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys TVS AC3 32A 3P 1NO coil 220V 50HZ
Technical data
-
Number of poles3
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz220 ... 220 V
-
Rated operation current Ie at AC-1, 400 V50 A
-
Rated operation power at AC-3, 400 V15 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V32 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
