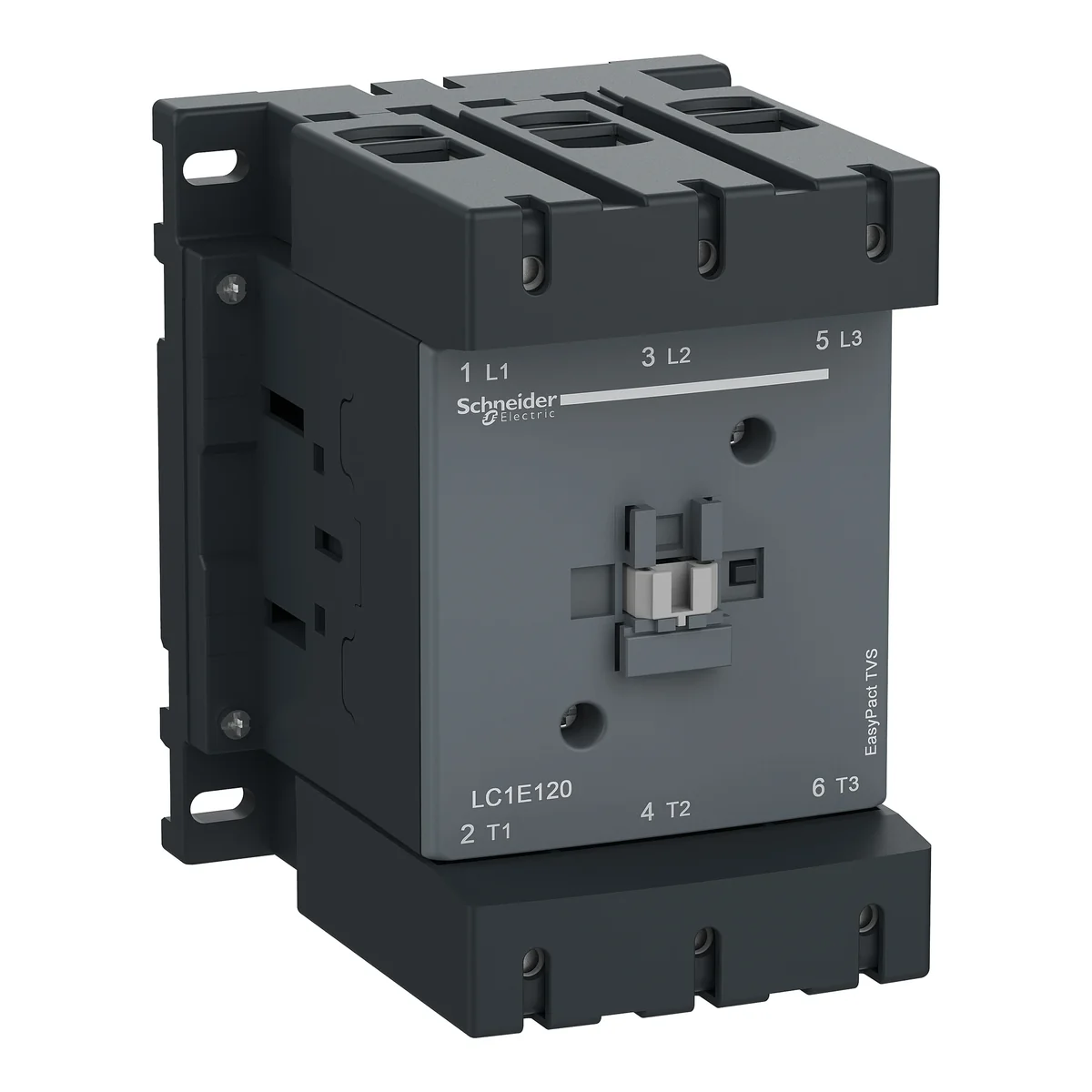

Power contactor TeSys TVS AC3 120A 3P 1NO 1NC coil 240VAC LC1E120U5
local index:
ATA961SCHN
Catalog No:
LC1E120U5
EAN code:
3606480323683
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 240
Price:
248,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys TVS AC3 120A 3P 1NO 1NC coil 240VAC
Technical data
-
AC control voltage [V]240
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz240 ... 240 V
-
Rated operation current Ie at AC-1, 400 V150 A
-
Rated operation power at AC-3, 400 V55 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V120 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
