Electrical apparatus
contactors
AC contactors

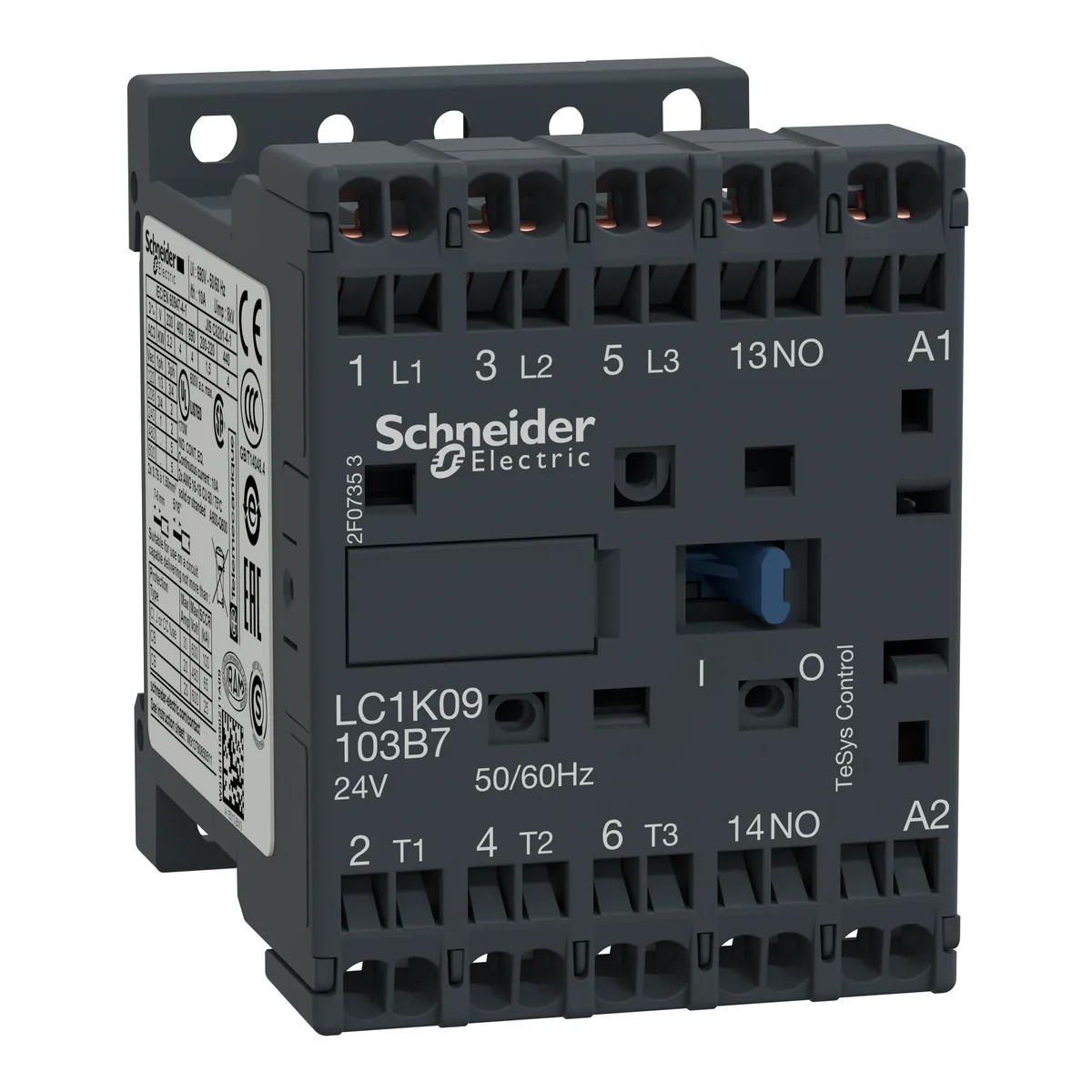

Power contactor TeSys K AC3 9A 3P 1NO coil 24VAC spring terminals LC1K09103B7
local index:
ATA795SCHN
Catalog No:
LC1K09103B7
EAN code:
3389110242072
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
24
See full description
Price:
113,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description

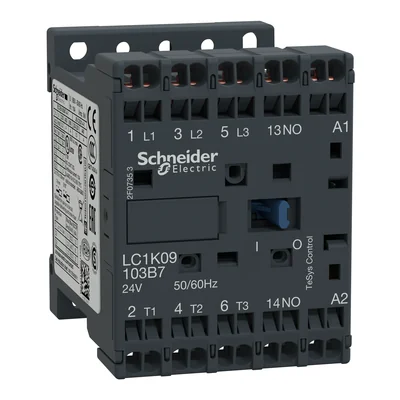

Power contactor TeSys K AC3 9A 3P 1NO coil 24VAC spring terminals
Technical data
AC control voltage [V]
24
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage AC 50 Hz
24 ... 24 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation current Ie at AC-4, 400 V
9 A
Rated operation power NEMA
3.73 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Spring clamp connection
Number of normally open contacts as main contact
3
Rated control supply voltage AC 60 Hz
24 ... 24 V
Rated operation current Ie at AC-1, 400 V
10 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation power at AC-4, 400 V
4 kW
Modular version
Yes
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Files to download
PEP ecopassport SCHN-2015-025-EN_1.pdf
EoLI_ENVEOLI1503003_1.pdf
UK_Doc_LC_K_LP_K06-16_SC16040406A-UK.docx.pdf
