Power contactor TeSys K AC3 9A 3P 1NC coil 230VAC spring terminals LC1K09013P7
local index:
ATA787SCHN
Catalog No:
LC1K09013P7
EAN code:
3389110242058
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 230
Price:
112,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

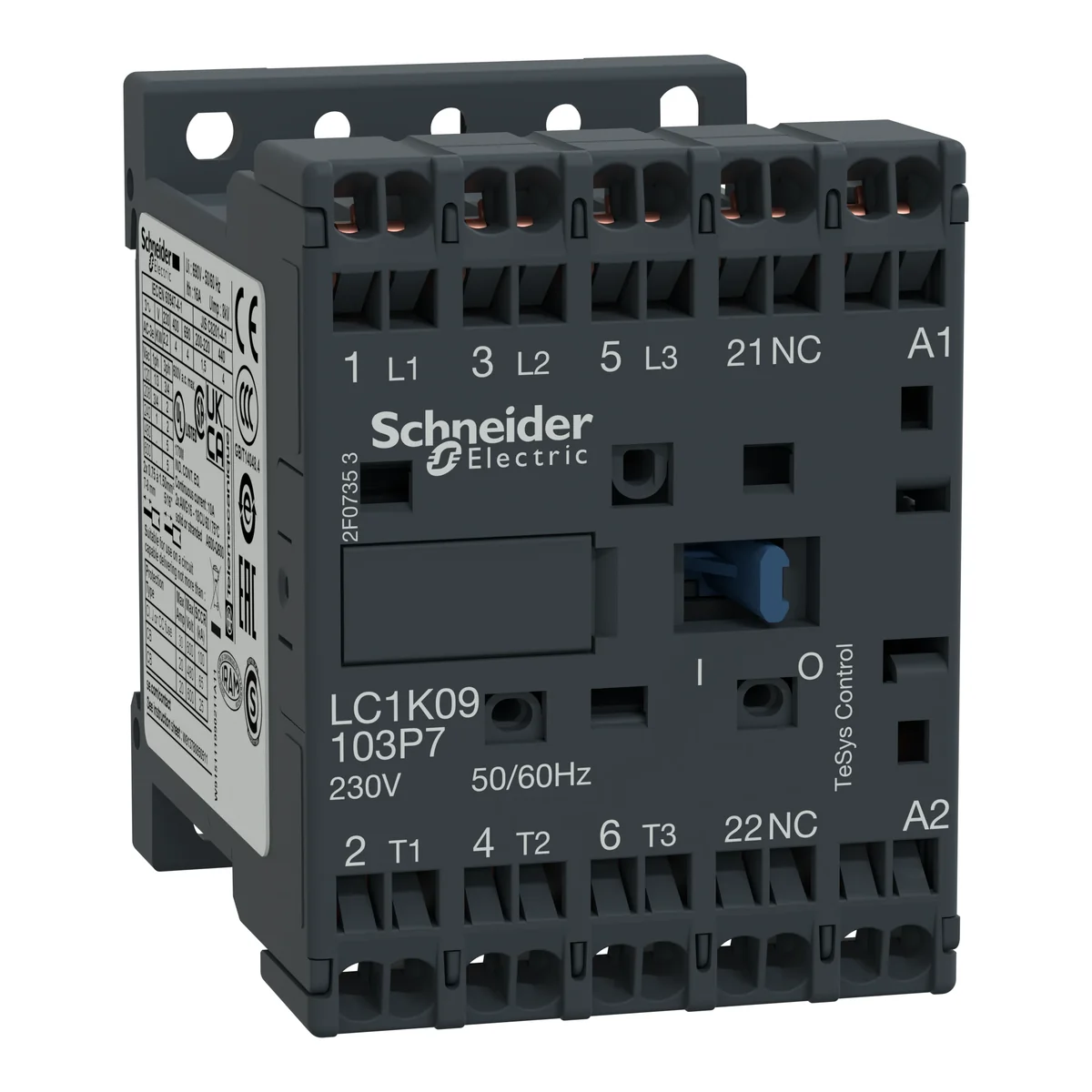

Power contactor TeSys K AC3 9A 3P 1NC coil 230VAC spring terminals
Technical data
-
AC control voltage [V]230
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation current Ie at AC-4, 400 V6 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Rated operation current Ie at AC-1, 400 V20 A
-
Rated operation power at AC-3, 400 V4 kW
-
Rated operation power at AC-4, 400 V2.2 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitSpring clamp connection
-
Number of normally open contacts as main contact3
