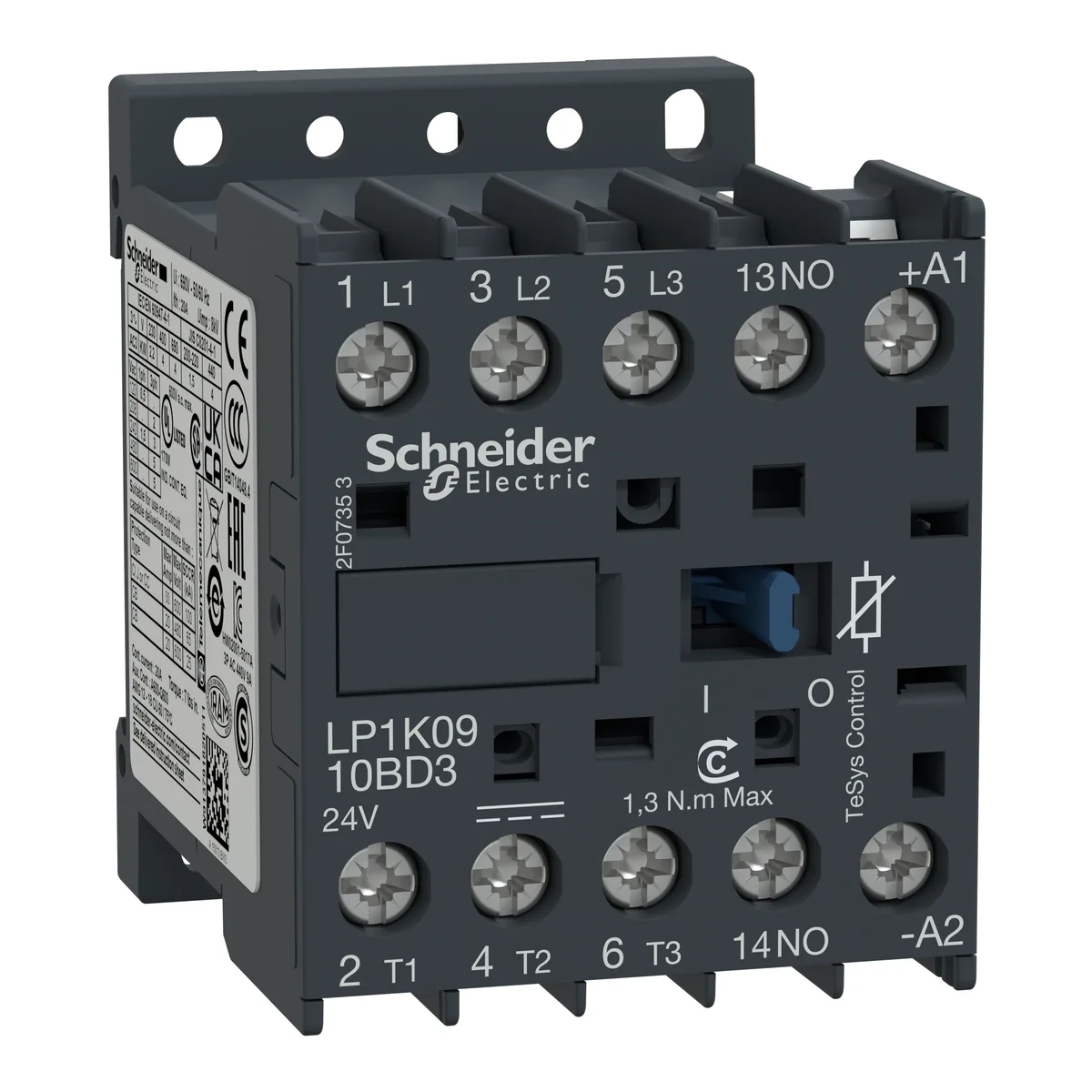

Power contactor TeSys K 9A 3P 1NO coil 24VDC box terminals LP1K0910BD3
local index:
ATA086SCHN
Catalog No:
LP1K0910BD3
EAN code:
3389110428513
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
Control circuit voltage [V]:
24
Contact:
1NO
See full description
Price:
43,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys K 9A 3P 1NO coil 24VDC box terminals
Technical data
Number of poles
3
Contact
1NO
PKWIU
27.12.24.0
Control circuit voltage [V]
24
Rated operational current [A]
9
Other technical data
Rated control supply voltage DC
24 ... 24 V
Rated operation current Ie at AC-1, 400 V
20 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation power at AC-4, 400 V
2.2 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation current Ie at AC-4, 400 V
6 A
Modular version
No
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Files to download
PEP ecopassport SCHN-2015-025-EN_1.pdf
EoLI_ENVEOLI1503003_1.pdf
UK_Doc_LC_K_LP_K06-16_SC16040406A-UK.docx.pdf
