Electrical apparatus
contactors
AC contactors

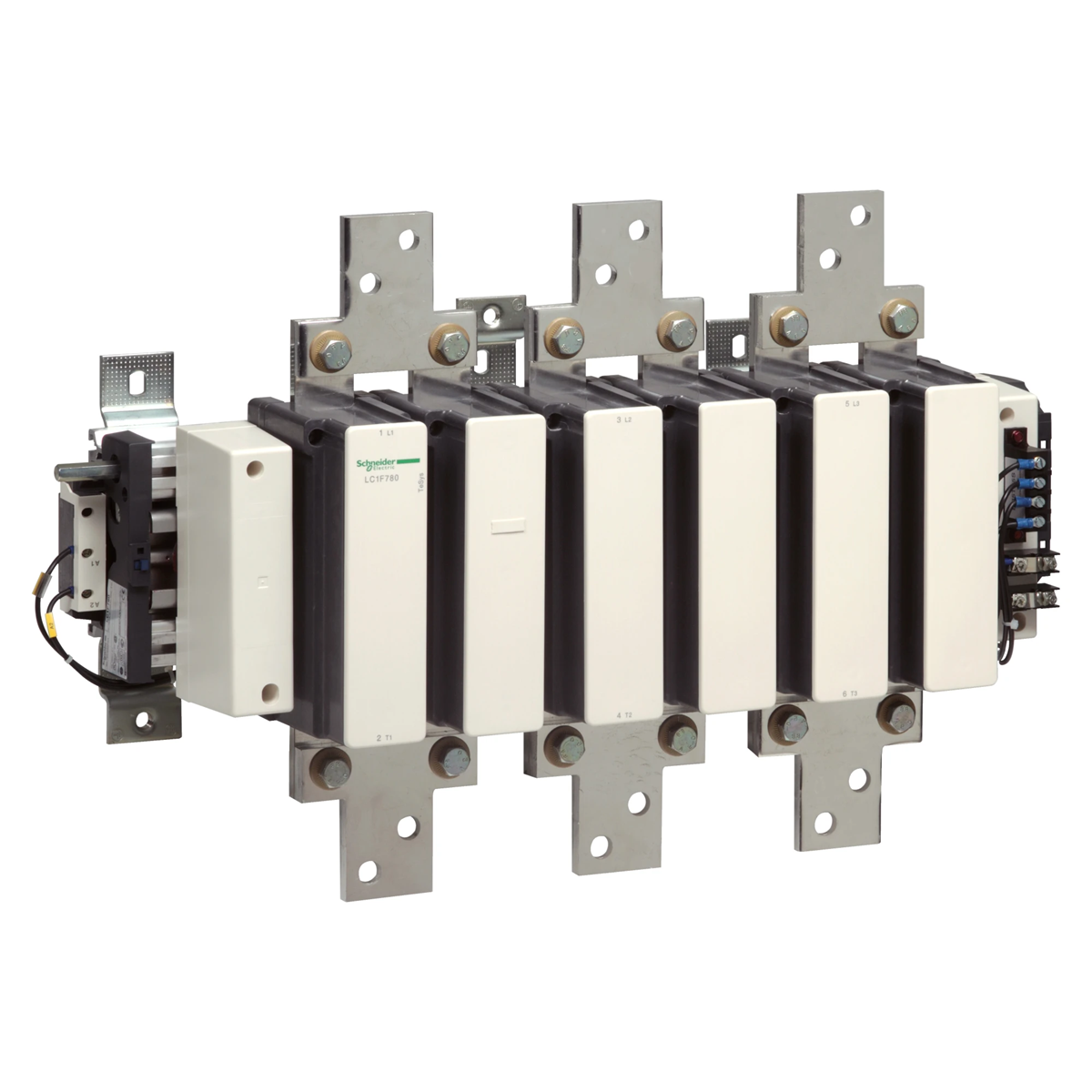

Power contactor TeSys F AC3 780A 3P 1NO 1NC coil 230VAC LC1F780P7
local index:
ATA953SCHN
Catalog No:
LC1F780P7
EAN code:
3389110788525
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
230
See full description
Price:
10226,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys F AC3 780A 3P 1NO 1NC coil 230VAC
Technical data
AC control voltage [V]
230
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage AC 50 Hz
230 ... 230 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
780 A
Rated operation current Ie at AC-4, 400 V
225 A
Modular version
No
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
230 ... 230 V
Rated operation current Ie at AC-1, 400 V
1600 A
Rated operation power at AC-3, 400 V
400 kW
Rated operation power at AC-4, 400 V
110 kW
Number of auxiliary contacts as normally open contact
0
Type of electrical connection of main circuit
Bolt connection
Number of normally open contacts as main contact
3
Files to download
ENVPEP1505009EN_V1.pdf
ENVEOLI1505009EN_V1.pdf
M_LC.F115-800_SC16041111G.pdf
