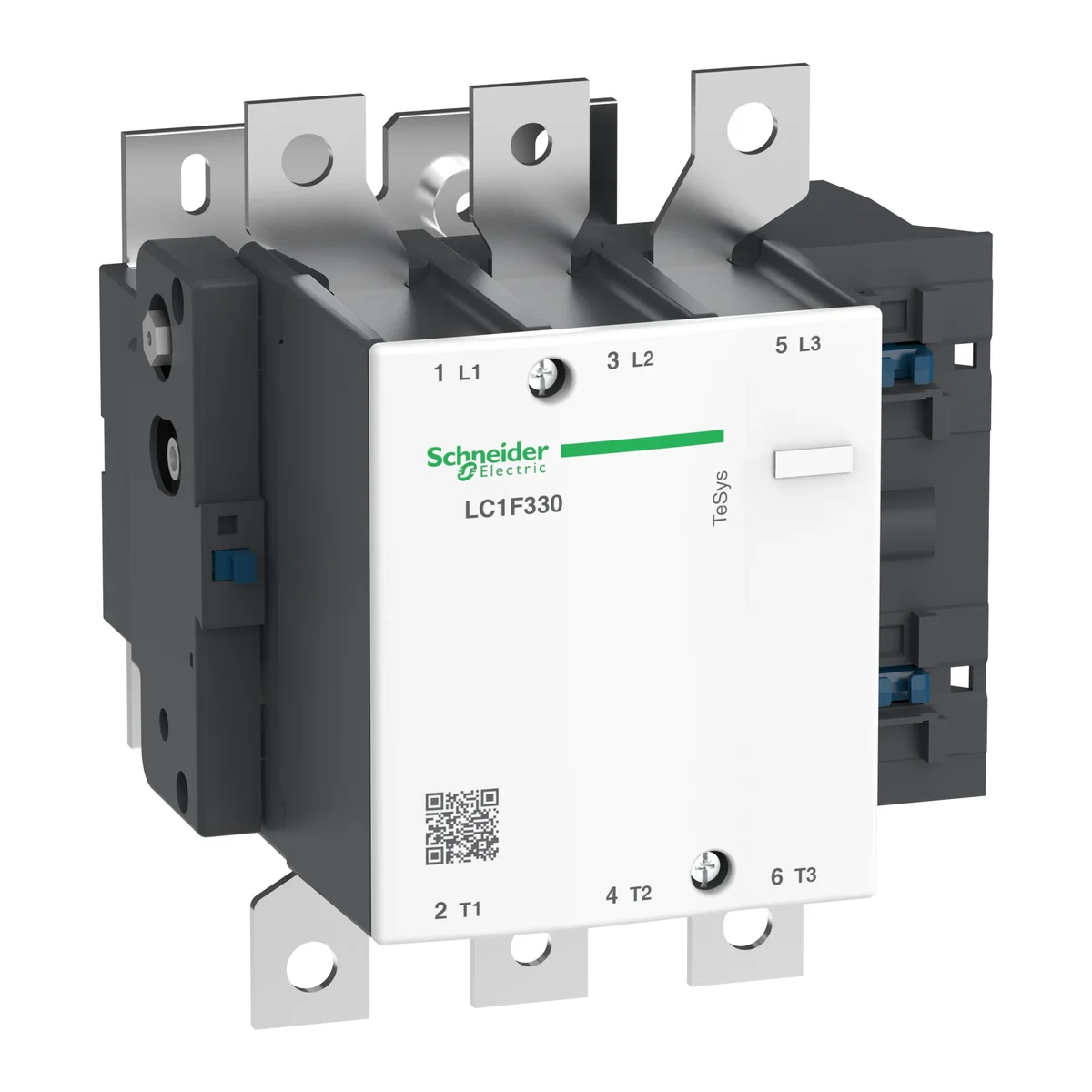

Power contactor TeSys F AC3 330A 3P 1NO 1NC coil 500VAC LC1F330S7
Lokaler Index:
ATA923SCHN
Katalognummer:
LC1F330S7
EAN-Code:
3389118095168
Hersteller:
SCHNEIDER ELECTRIC
AC control voltage [V]: 500
Preis:
21 854,85 zł
gross / stk.
(inklusive MwSt 23%)
Zur Angebotsanfrage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Power contactor TeSys F AC3 330A 3P 1NO 1NC coil 500VAC
Technische Daten
-
AC control voltage [V]500
-
PKWIU27.12.24.0
Weitere technische Daten
-
Rated control supply voltage AC 50 Hz500 ... 500 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V330 A
-
Rated operation current Ie at AC-4, 400 V125 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz500 ... 500 V
-
Rated operation current Ie at AC-1, 400 V400 A
-
Rated operation power at AC-3, 400 V160 kW
-
Rated operation power at AC-4, 400 V59 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitBolt connection
-
Number of normally open contacts as main contact3
Hersteller-Details
-
HerstellerSchneider Electric Polska Sp. z o.o.
-
Adresse02-673 Warszawa ul. Konstruktorska 12
-
Steueridentifikationsnummer5220011965
