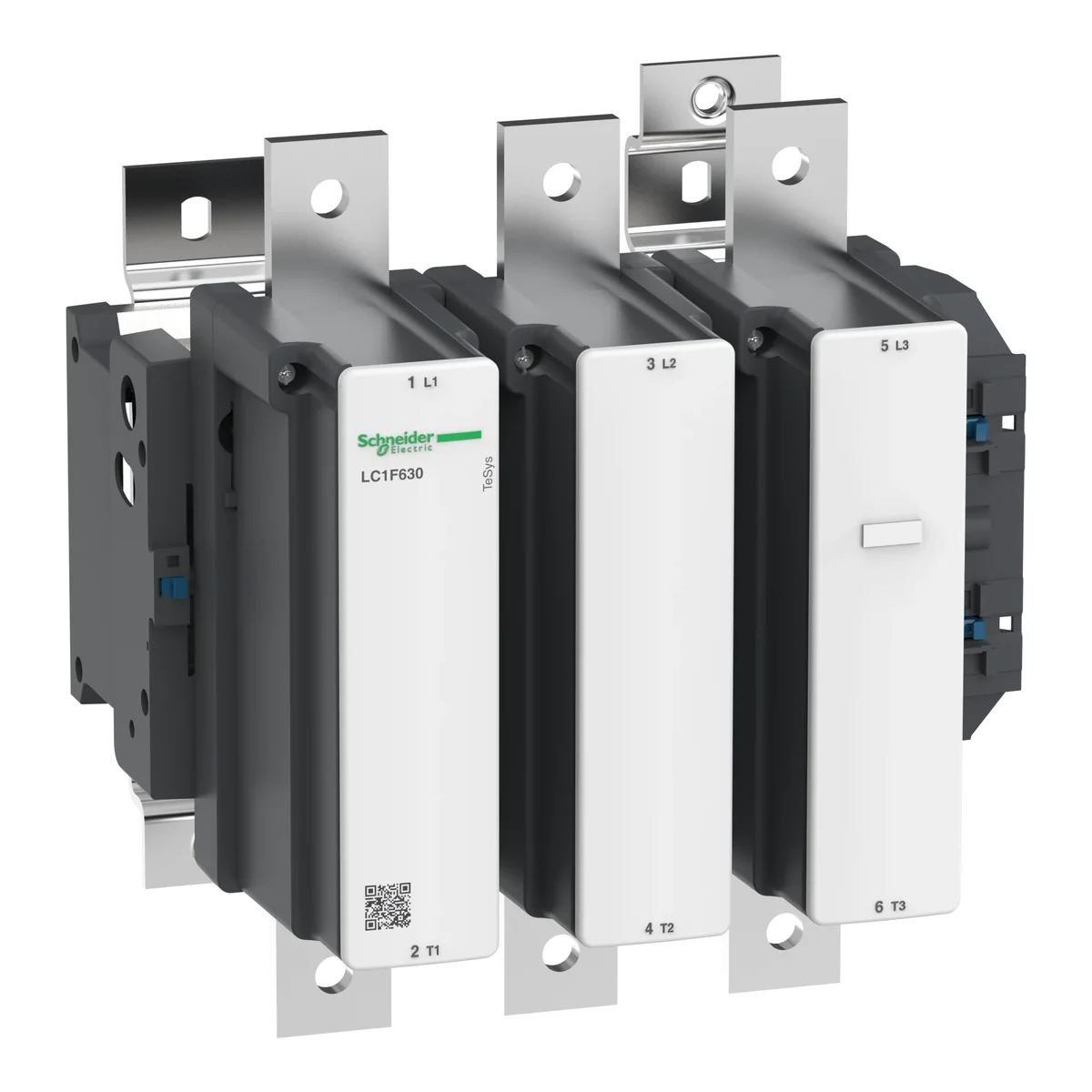

Power contactor TeSys F AC1 630A 3P 1NO 1NC coil 400VAC LC1F630V7
local index:
ATA952SCHN
Catalog No:
LC1F630V7
EAN code:
3389110788488
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 400
Price:
5176,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description
Power contactor TeSys F AC1 630A 3P 1NO 1NC coil 400VAC
Technical data
-
AC control voltage [V]400
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz400 ... 400 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V630 A
-
Rated operation current Ie at AC-4, 400 V205 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz400 ... 400 V
-
Rated operation current Ie at AC-1, 400 V1000 A
-
Rated operation power at AC-3, 400 V335 kW
-
Rated operation power at AC-4, 400 V100 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitBolt connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Tax identification number5220011965
