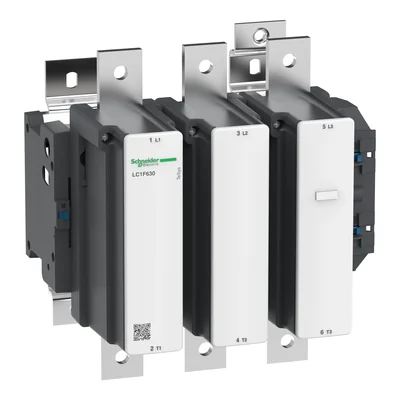

Power contactor TeSys F AC1 630A 3P 1NO 1NC coil 110VAC LC1F630F7

local index:
ATA948SCHN
Catalog No:
LC1F630F7
EAN code:
3389110227130
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 110
Price:
4339,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Power contactor TeSys F AC1 630A 3P 1NO 1NC coil 110VAC

Technical data

  • AC control voltage [V]
    110
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 110 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    630 A
  • Rated operation current Ie at AC-4, 400 V
    205 A
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    110 ... 110 V
  • Rated operation current Ie at AC-1, 400 V
    1000 A
  • Rated operation power at AC-3, 400 V
    335 kW
  • Rated operation power at AC-4, 400 V
    100 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Bolt connection
  • Number of normally open contacts as main contact
    3
