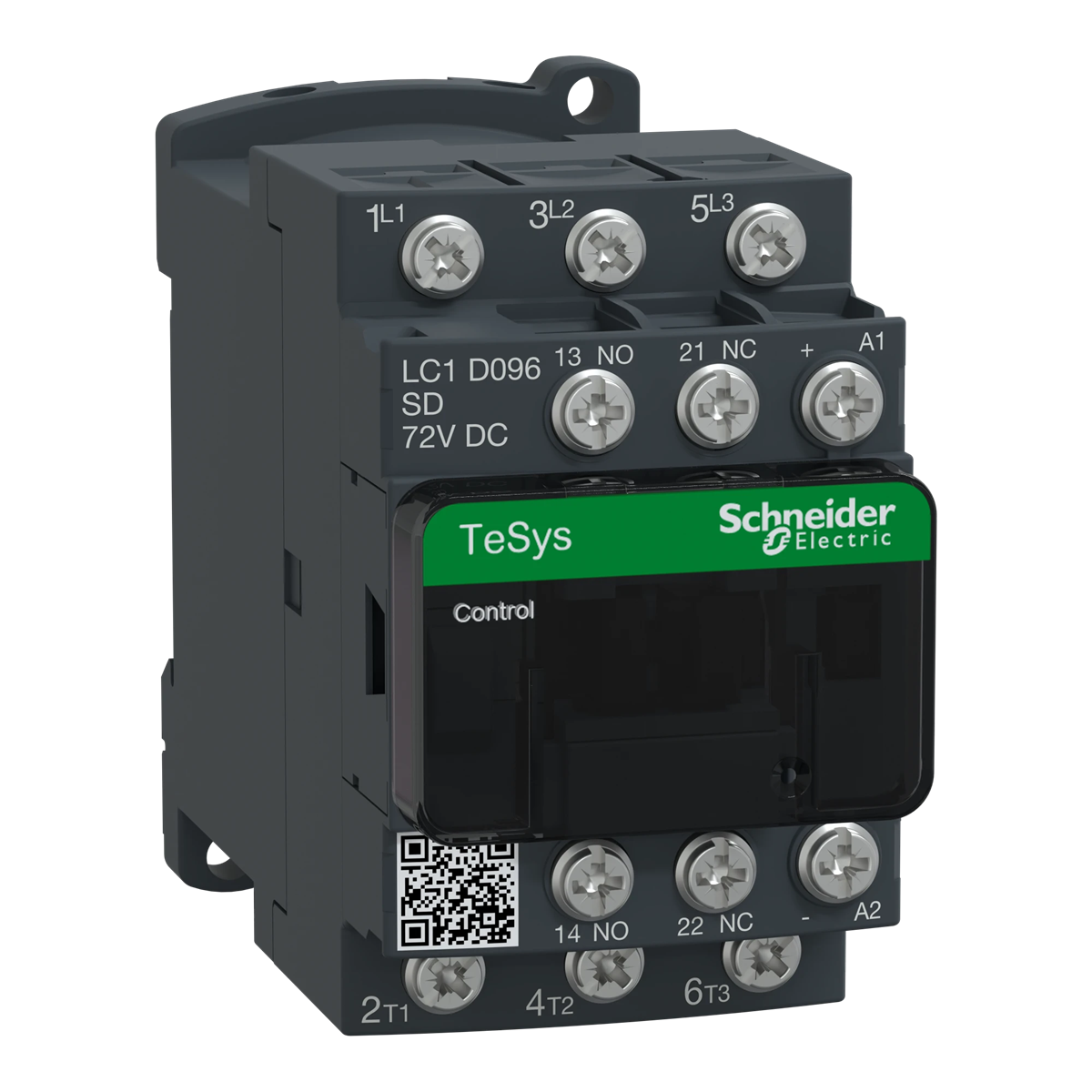

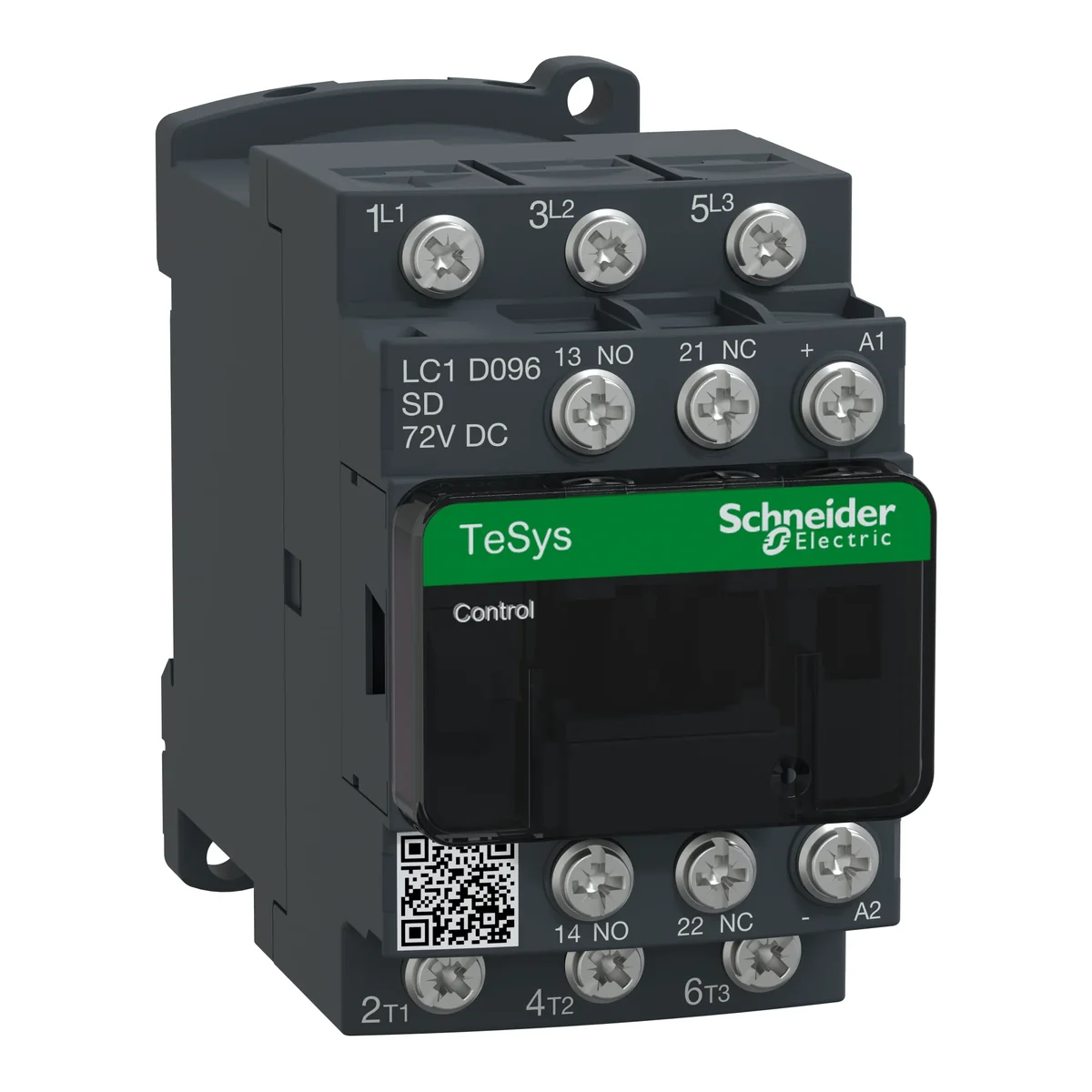

Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 72VDC screw terminals LC1D096SD
local index:
ATD329SCHN
Catalog No:
LC1D096SD
EAN code:
3389110806120
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 72
Price:
78,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 72VDC screw terminals
Technical data
-
DC control voltage [V]72
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC72 ... 72 V
-
Rated operation current Ie at AC-1, 400 V25 A
-
Rated operation power at AC-3, 400 V4 kW
-
Rated operation power at AC-4, 400 V2.2 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitOther
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation current Ie at AC-4, 400 V6 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
