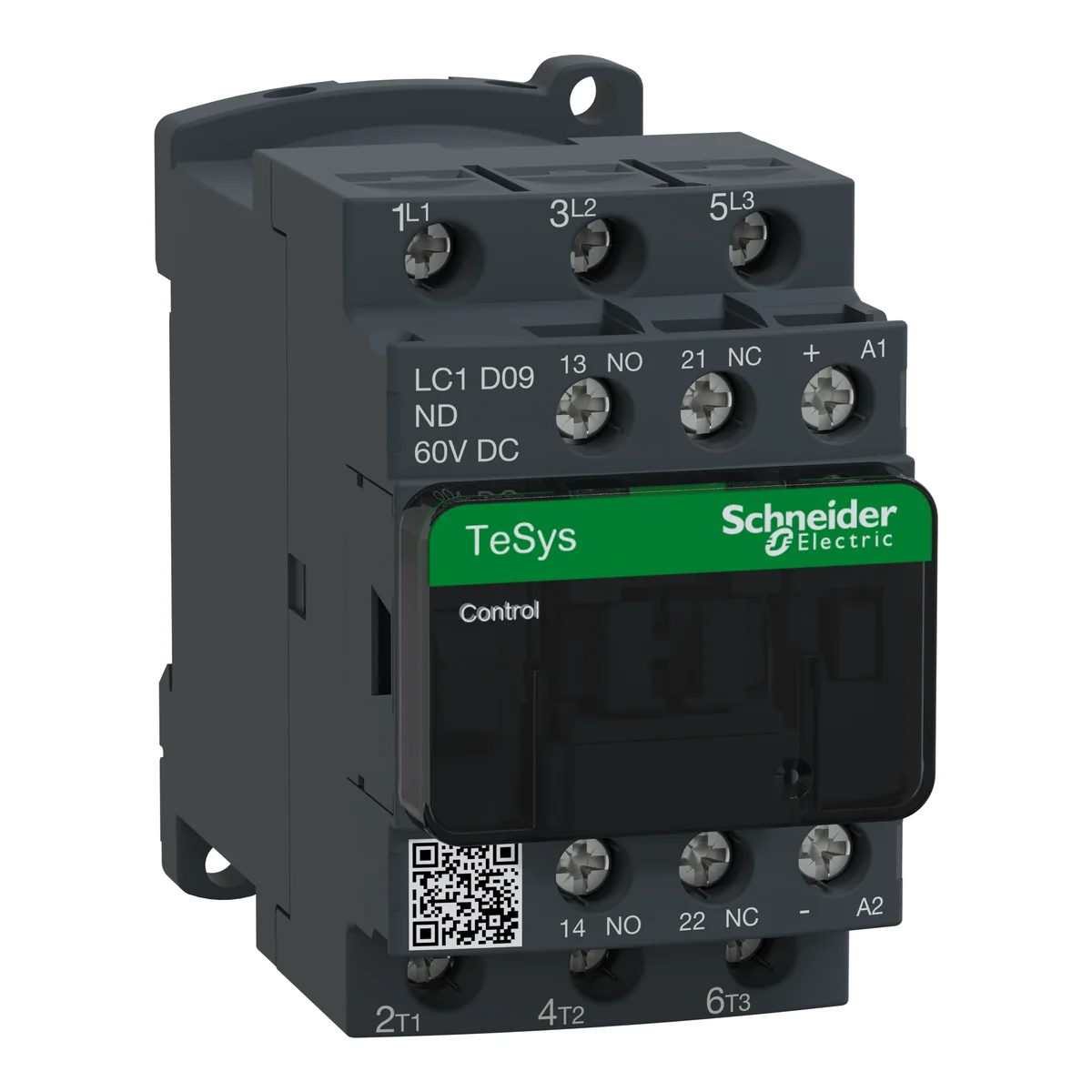

Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 60VDC box terminals LC1D09ND
local index:
ATD295SCHN
Catalog No:
LC1D09ND
EAN code:
3389110353402
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 60
Price:
79,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 60VDC box terminals
Technical data
-
DC control voltage [V]60
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC60 ... 60 V
-
Rated operation current Ie at AC-1, 400 V25 A
-
Rated operation power at AC-3, 400 V4 kW
-
Rated operation power at AC-4, 400 V2.2 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation current Ie at AC-4, 400 V6 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
