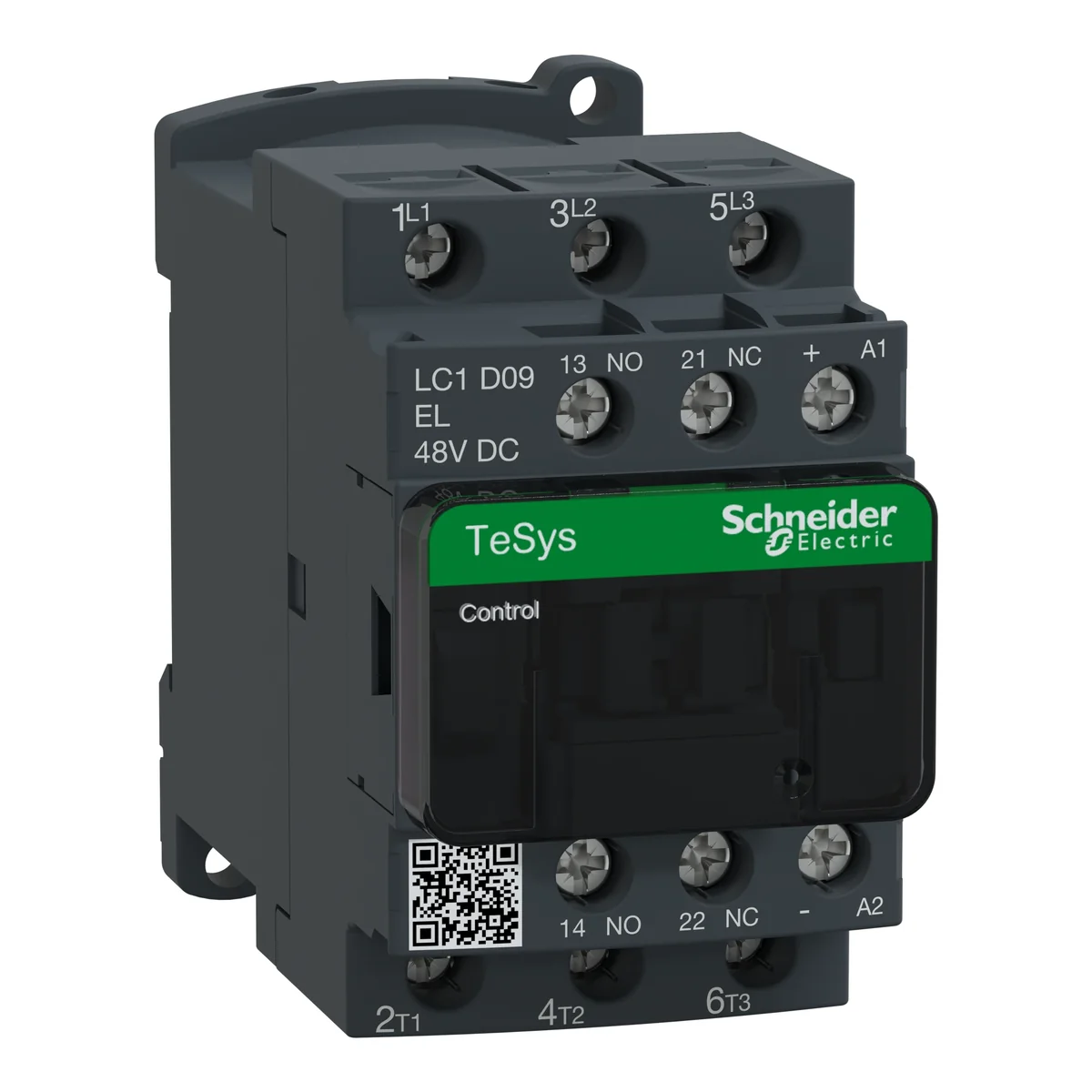

Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 48VDC low consumption LC1D09EL
local index:
ATD317SCHN
Catalog No:
LC1D09EL
EAN code:
3389110361100
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]:
48
See full description
Price:
50,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 48VDC low consumption
Technical data
DC control voltage [V]
48
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage DC
48 ... 48 V
Rated operation current Ie at AC-1, 400 V
25 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation power at AC-4, 400 V
2.2 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation current Ie at AC-4, 400 V
6 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Files to download
Internal PEP ENVPEP110230EN_V2_1.pdf
EoLI_ENVEOLI1102030_V2_1.pdf
PP_EU_Doc_LC.D09-18_SC16040407I.docx.pdf
137830401A55-14.pdf
See more >>
