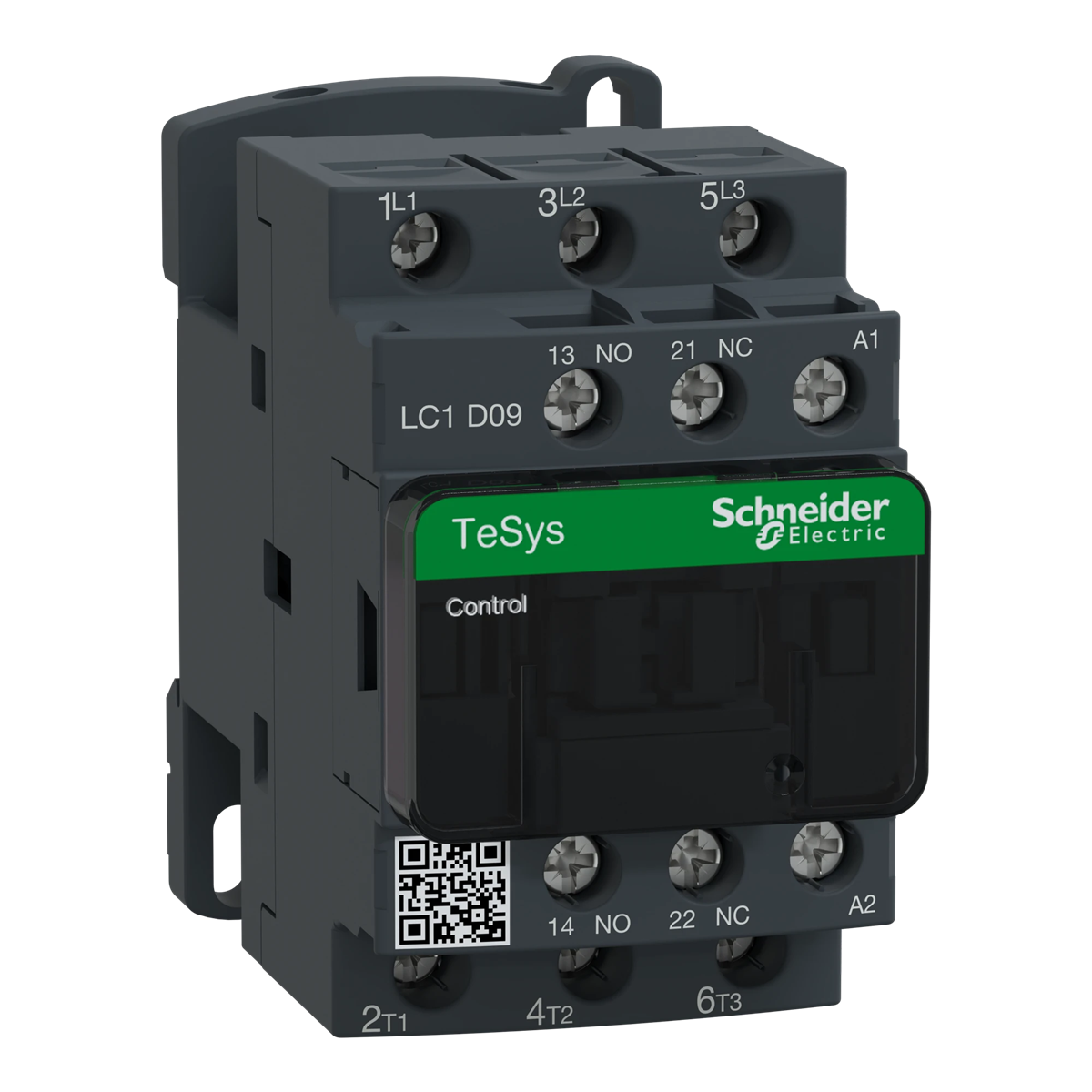

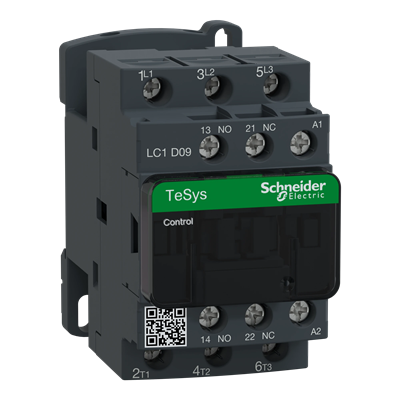

Power Contactor TeSys D AC3 9A 3P 1NO 1NC Coil 42VAC Box Terminals LC1D09D7
local index:
ATA055SCHN
Catalog No:
LC1D09D7
EAN code:
3389110348712
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
Control circuit voltage [V]:
42
Contact:
1NO+1NC
See full description
Price:
32,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power Contactor TeSys D AC3 9A 3P 1NO 1NC Coil 42VAC Box Terminals
Technical data
Number of poles
3
Contact
1NO+1NC
PKWIU
27.12.24.0
Control circuit voltage [V]
42
Rated operational current [A]
9
Other technical data
Rated control supply voltage AC 50 Hz
42 ... 42 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation current Ie at AC-4, 400 V
6 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
42 ... 42 V
Rated operation current Ie at AC-1, 400 V
25 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation power at AC-4, 400 V
2.2 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
PP_EU_Doc_LC.D09-18_SC16040407I.docx.pdf
