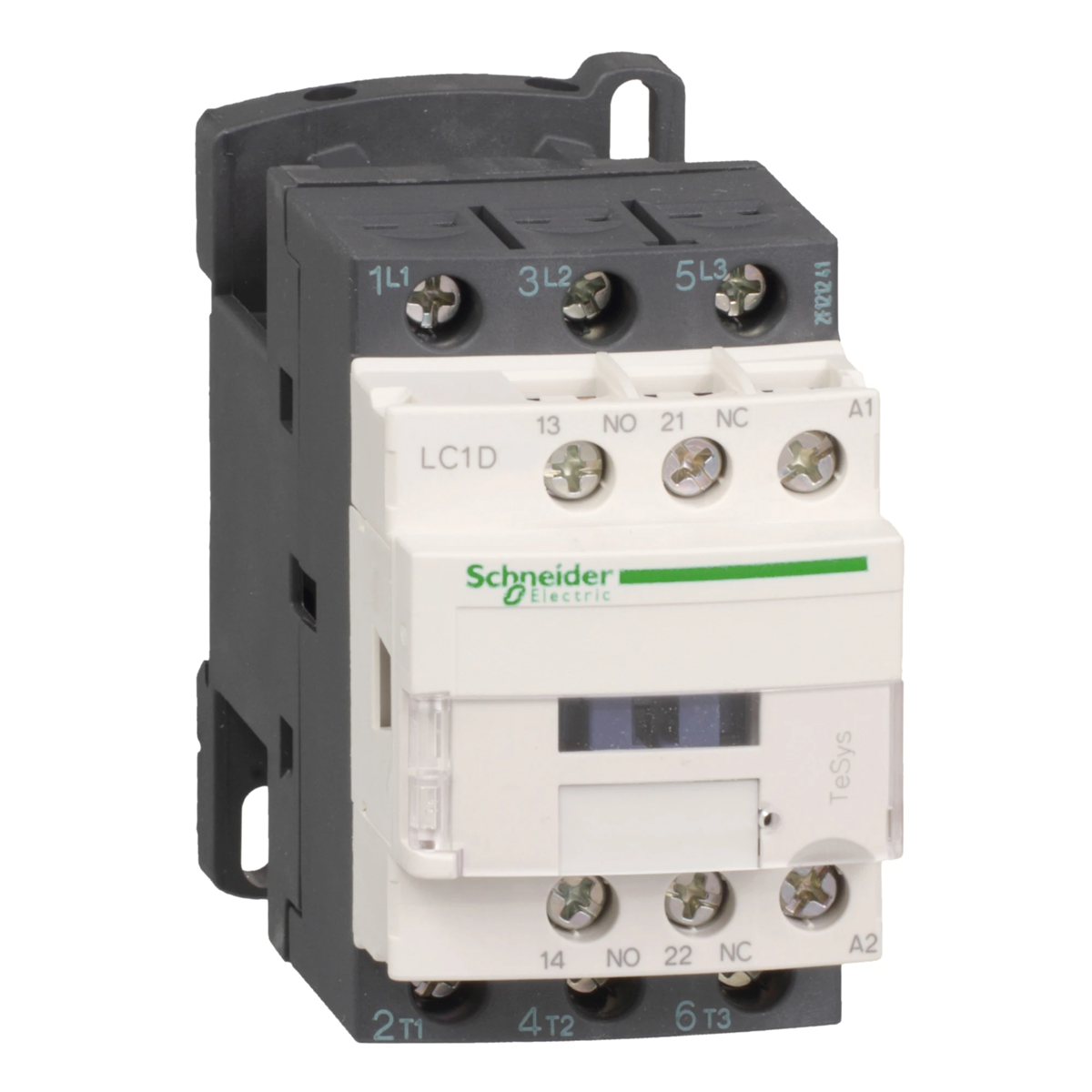

Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 24VAC LC1D09B5
local index:
ATA182SCHN
Catalog No:
LC1D09B5
EAN code:
3606489602444
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
24
See full description
Price:
28,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 24VAC
Technical data
AC control voltage [V]
24
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage AC 50 Hz
24 ... 24 V
Rated operation current Ie at AC-1, 400 V
25 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation power at AC-4, 400 V
4 kW
Modular version
Yes
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation current Ie at AC-4, 400 V
9 A
Rated operation power NEMA
3.73 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
137830401A55-14.pdf
