Electrical apparatus
contactors
AC contactors

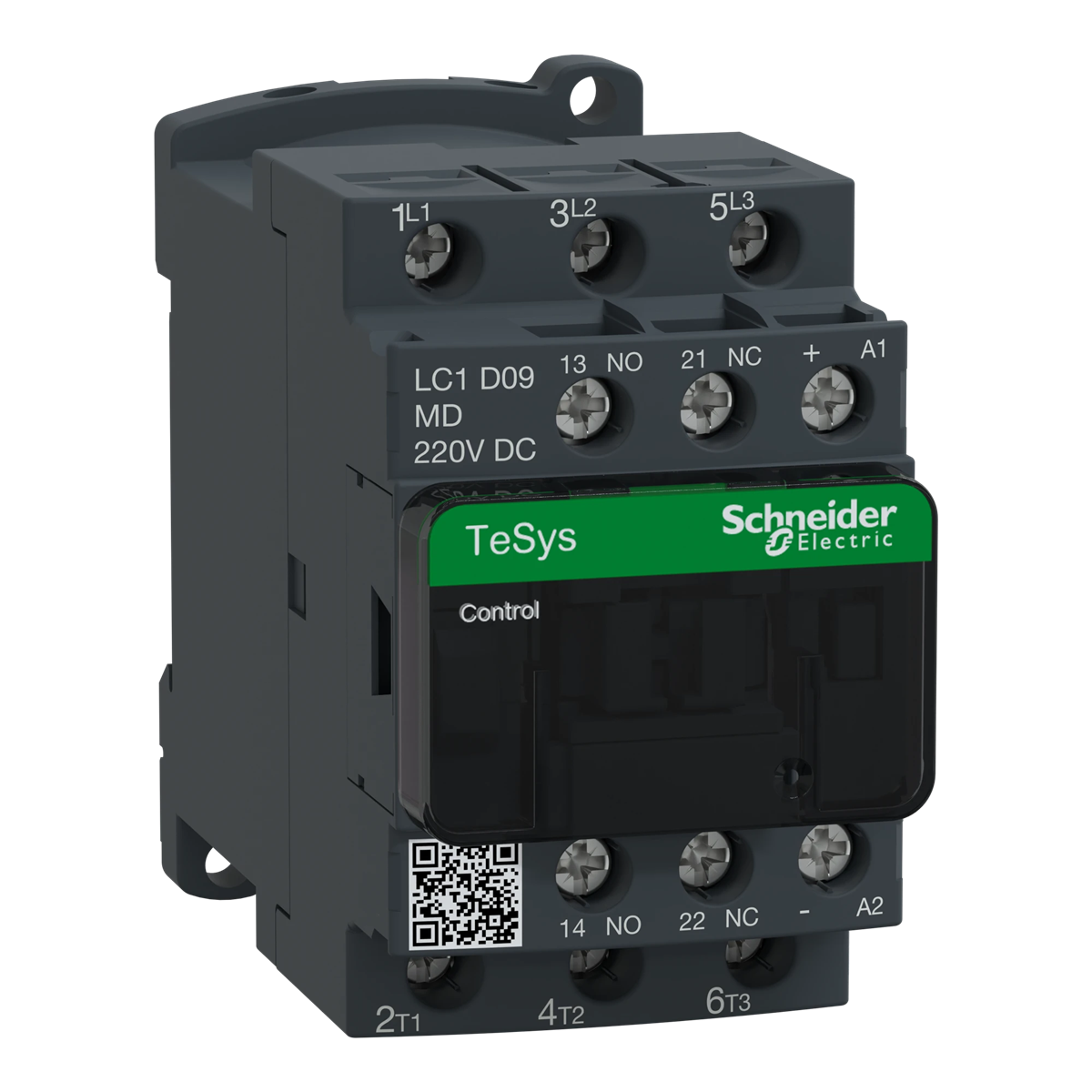

Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 220VDC box terminals LC1D09MD
local index:
ATA309SCHN
Catalog No:
LC1D09MD
EAN code:
3389110353280
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
Control circuit voltage [V]:
220
Contact:
1NO+1NC
See full description
Price:
73,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 9A 3P 1NO 1NC coil 220VDC box terminals
Technical data
Number of poles
3
Contact
1NO+1NC
PKWIU
27.12.24.0
Control circuit voltage [V]
220
Rated operational current [A]
9
Other technical data
Rated control supply voltage DC
220 ... 220 V
Rated operation current Ie at AC-1, 400 V
25 A
Rated operation power at AC-3, 400 V
4 kW
Rated operation power at AC-4, 400 V
4 kW
Modular version
Yes
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
9 A
Rated operation current Ie at AC-4, 400 V
9 A
Rated operation power NEMA
3.73 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
Internal PEP ENVPEP110230EN_V2_1.pdf
EoLI_ENVEOLI1102030_V2_1.pdf
PP_EU_Doc_LC.D09-18_SC16040407I.docx.pdf
137830401A55-14.pdf
