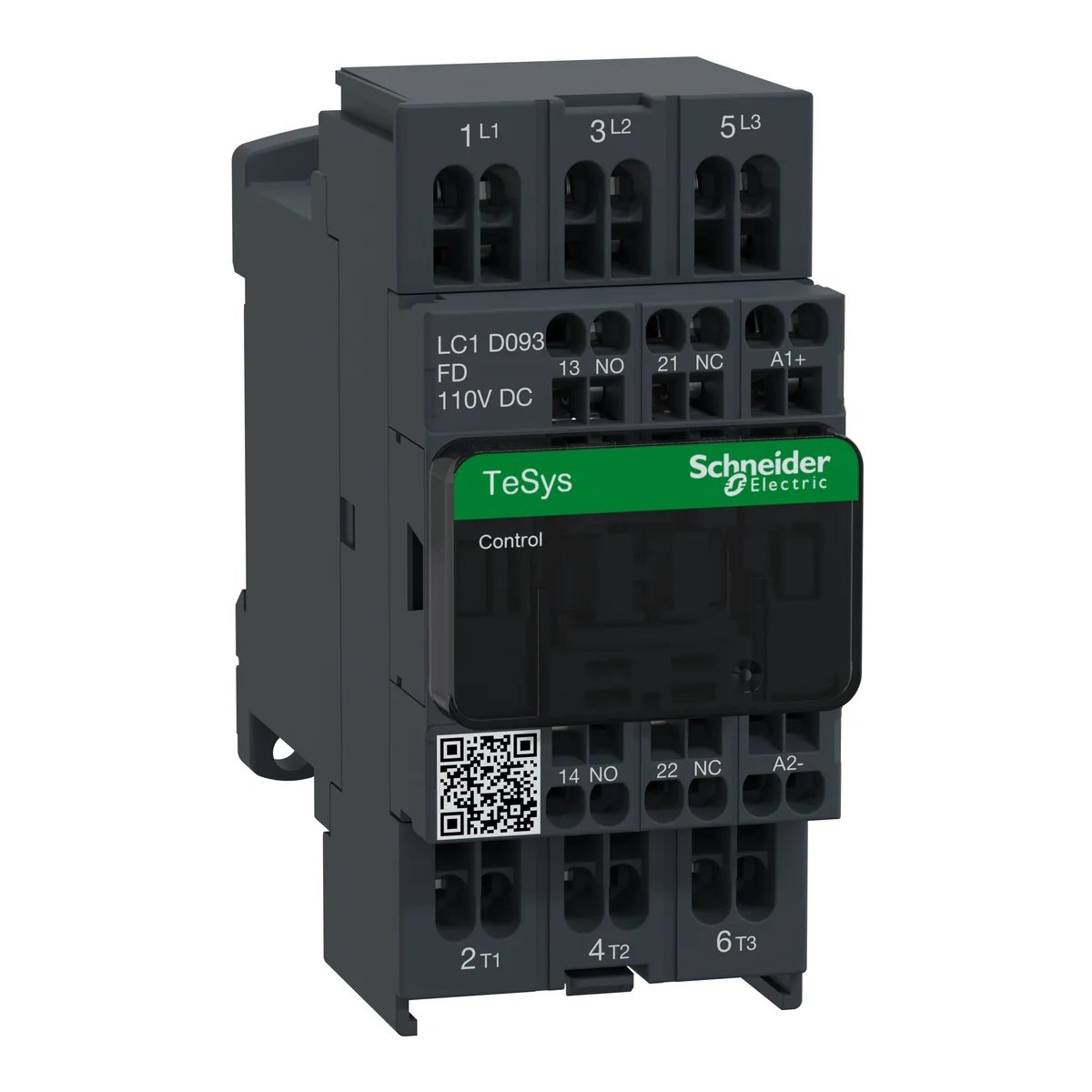

Power Contactor TeSys D AC3 9A 3P 1NO 1NC Coil 110VDC Spring Terminals LC1D093FD

local index:
ATD291SCHN
Catalog No:
LC1D093FD
EAN code:
3389110805802
Manufacturer: SCHNEIDER ELECTRIC
DC control voltage [V]: 110
Price:
76,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power Contactor TeSys D AC3 9A 3P 1NO 1NC Coil 110VDC Spring Terminals

Technical data

  • DC control voltage [V]
    110
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage DC
    110 ... 110 V
  • Rated operation current Ie at AC-1, 400 V
    20 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Rated operation power at AC-4, 400 V
    2.2 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Spring clamp connection
  • Number of normally open contacts as main contact
    3
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    9 A
  • Rated operation current Ie at AC-4, 400 V
    6 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
