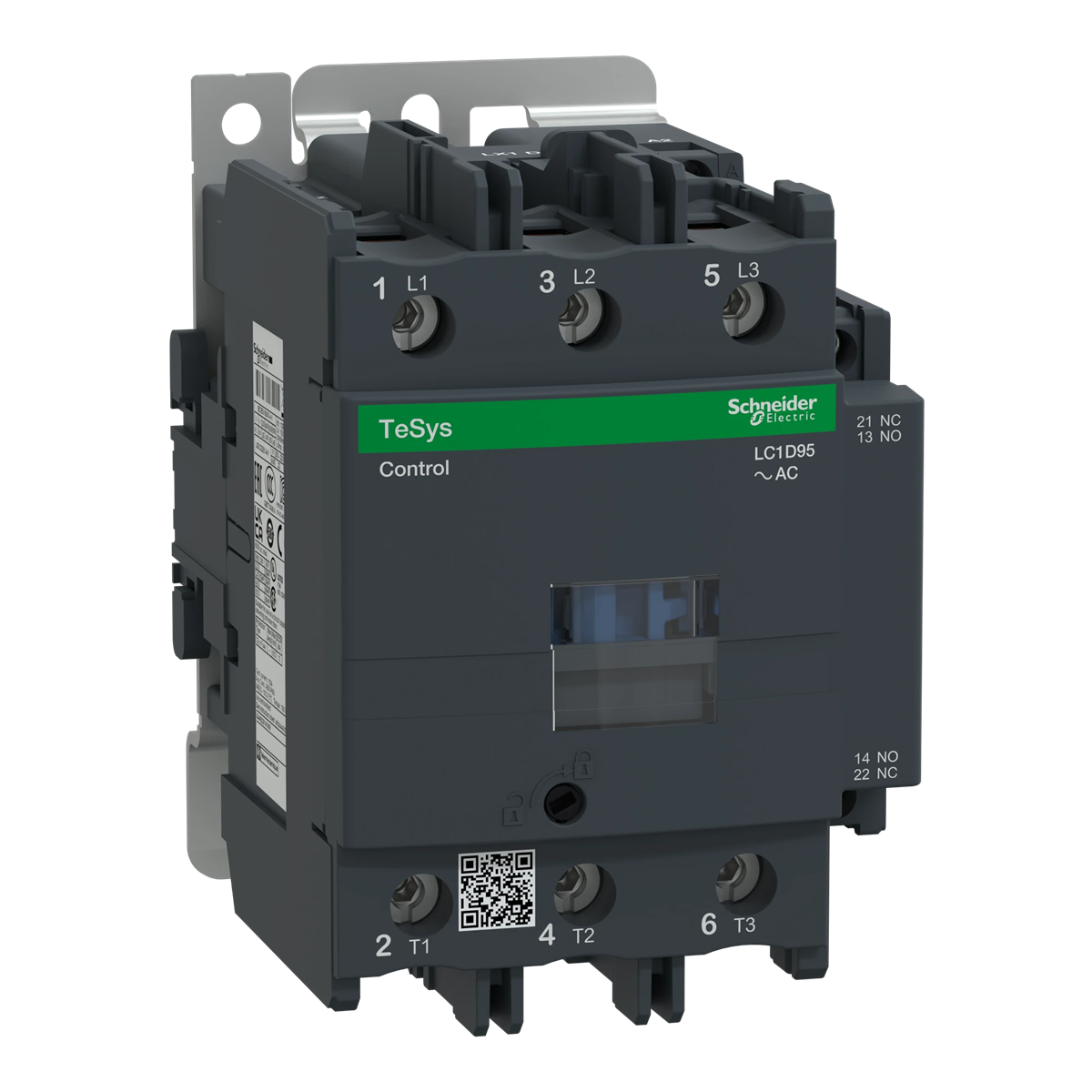

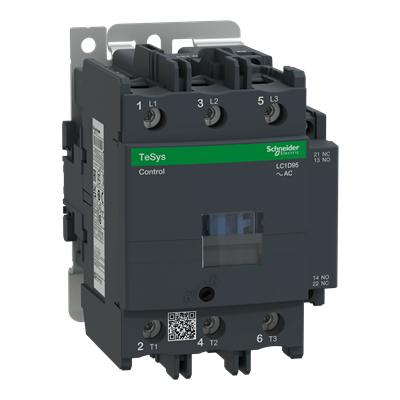

Power Contactor TeSys D AC3 95A 3P 1NO 1NC Coil 380VAC Box Terminals LC1D95Q7
local index:
ATA629SCHN
Catalog No:
LC1D95Q7
EAN code:
3389110451832
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 380
Price:
385,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power Contactor TeSys D AC3 95A 3P 1NO 1NC Coil 380VAC Box Terminals
Technical data
-
AC control voltage [V]380
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz380 ... 380 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V95 A
-
Rated operation current Ie at AC-4, 400 V32 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz380 ... 380 V
-
Rated operation current Ie at AC-1, 400 V125 A
-
Rated operation power at AC-3, 400 V45 kW
-
Rated operation power at AC-4, 400 V15 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
