Electrical apparatus
contactors
DC contactors

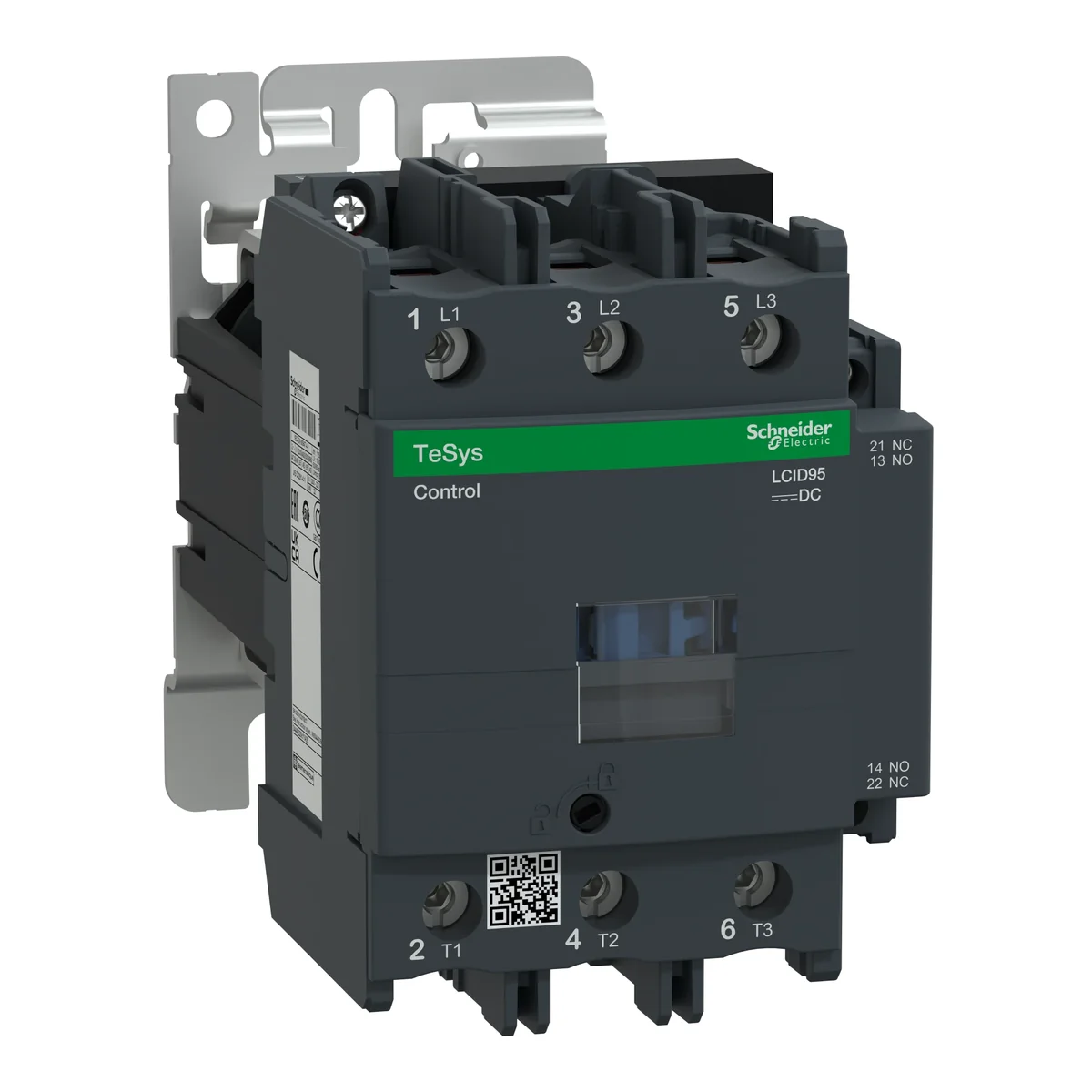

Power contactor TeSys D AC3 95A 3P 1NO 1NC coil 24VDC box terminals LC1D95BW
local index:
ATD227SCHN
Catalog No:
LC1D95BW
EAN code:
3389110450590
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]:
24
See full description
Price:
452,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 95A 3P 1NO 1NC coil 24VDC box terminals
Technical data
DC control voltage [V]
24
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage DC
24 ... 24 V
Rated operation current Ie at AC-1, 400 V
125 A
Rated operation power at AC-3, 400 V
45 kW
Rated operation power at AC-4, 400 V
15 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
95 A
Rated operation current Ie at AC-4, 400 V
32 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Files to download
PP_EU_Doc_LC.D80-95_SC16042702I.docx.pdf
