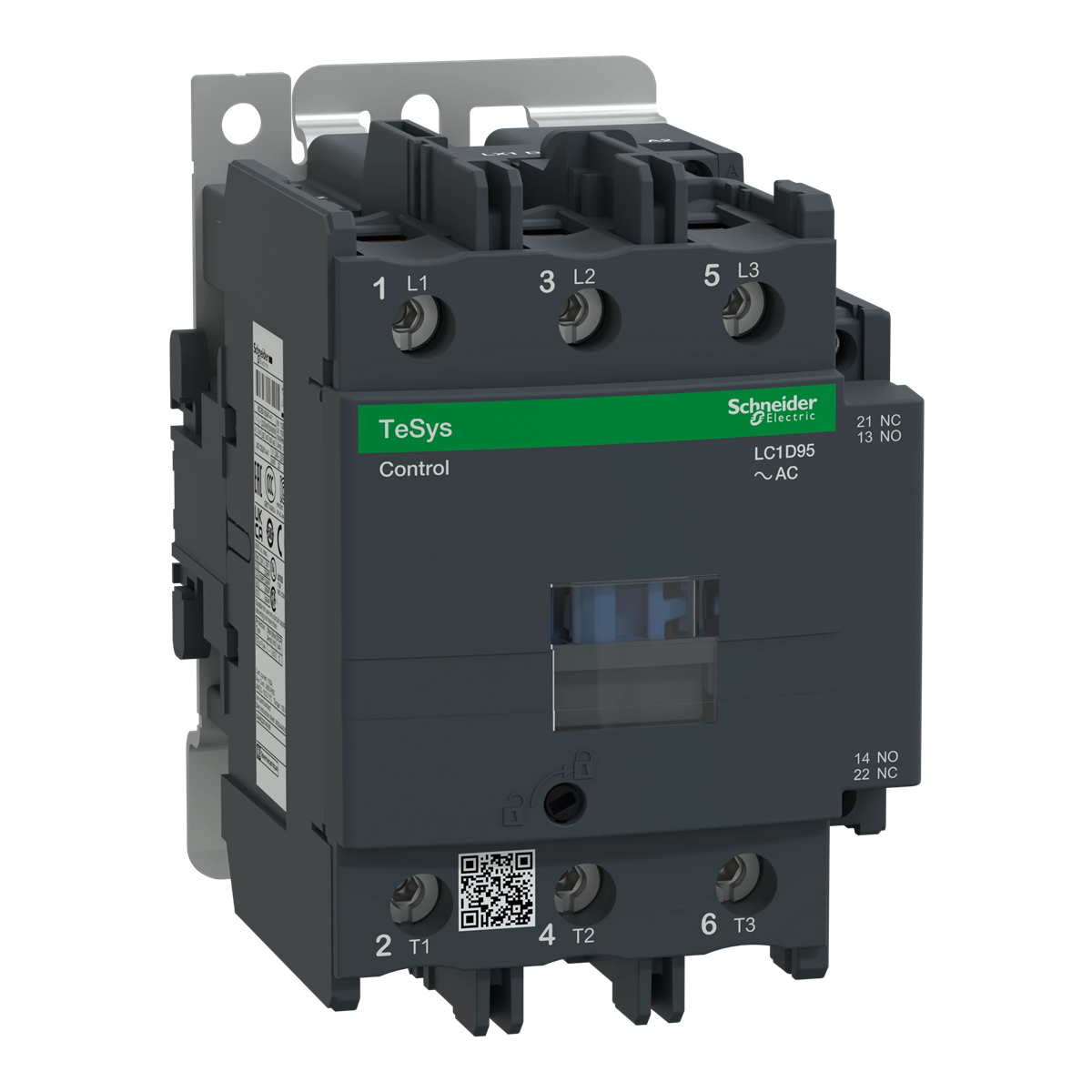

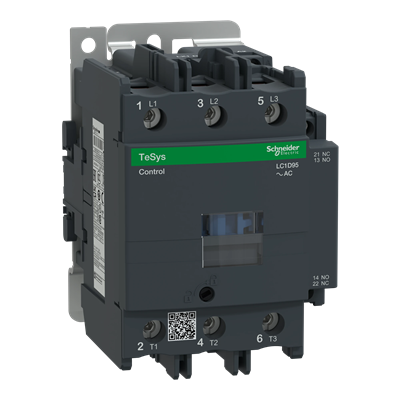

Power contactor TeSys D AC3 95A 3P 1NO 1NC coil 230V 50HZ box terminals LC1D95P5
local index:
ATA989SCHN
Catalog No:
LC1D95P5
EAN code:
3389110451726
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles: 3
Price:
303,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 95A 3P 1NO 1NC coil 230V 50HZ box terminals
Technical data
-
Number of poles3
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated operation current Ie at AC-1, 400 V125 A
-
Rated operation power at AC-3, 400 V45 kW
-
Rated operation power at AC-4, 400 V45 kW
-
Modular versionYes
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V95 A
-
Rated operation current Ie at AC-4, 400 V95 A
-
Rated operation power NEMA44.8 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
