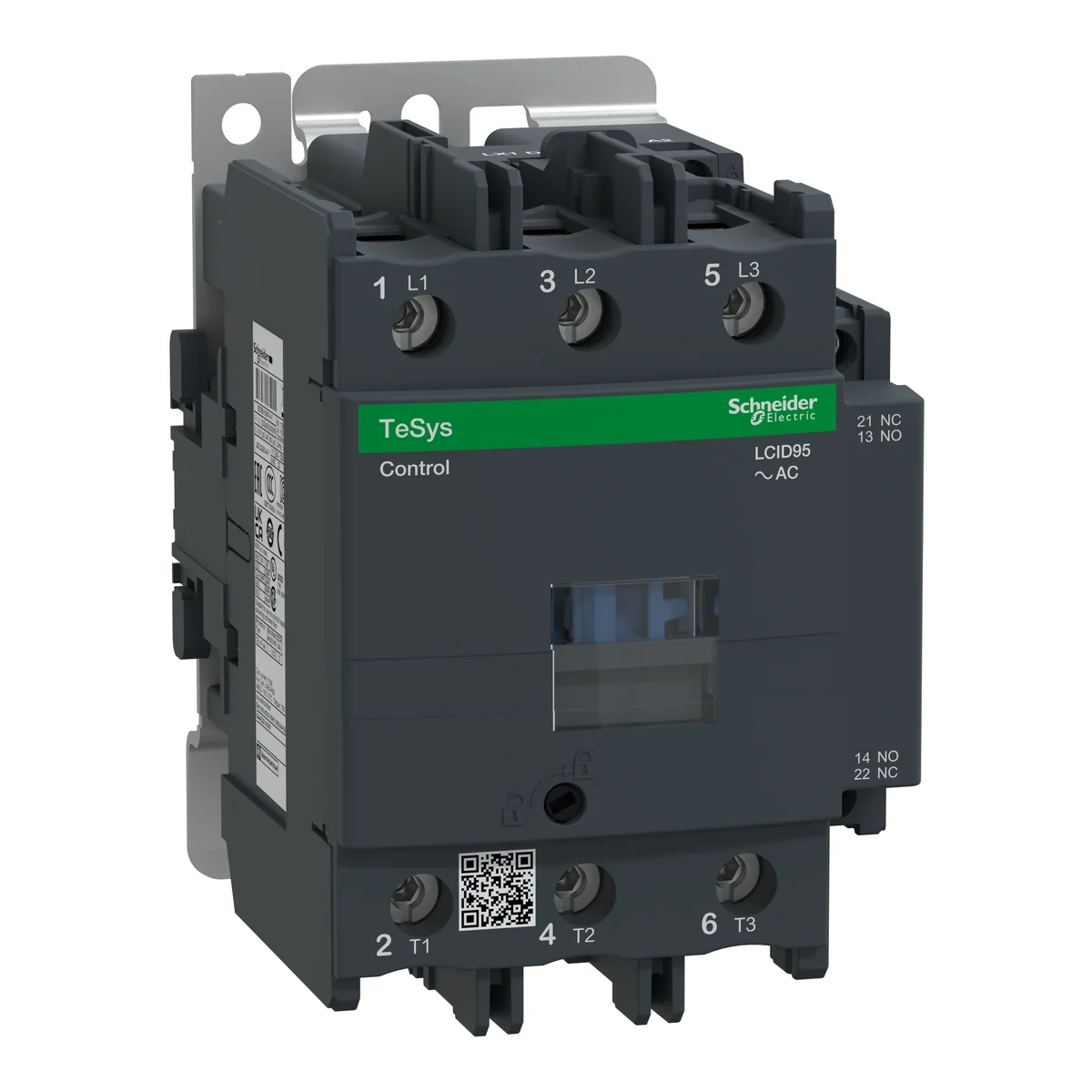

Power contactor TeSys D AC3 95A 3P 1NO 1NC coil 220VAC box terminals LC1D95M7

local index:
ATA628SCHN
Catalog No:
LC1D95M7
EAN code:
3389110451634
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 220
Price:
388,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D AC3 95A 3P 1NO 1NC coil 220VAC box terminals

Technical data

  • AC control voltage [V]
    220
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    220 ... 220 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    95 A
  • Rated operation current Ie at AC-4, 400 V
    32 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    220 ... 220 V
  • Rated operation current Ie at AC-1, 400 V
    125 A
  • Rated operation power at AC-3, 400 V
    45 kW
  • Rated operation power at AC-4, 400 V
    15 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
