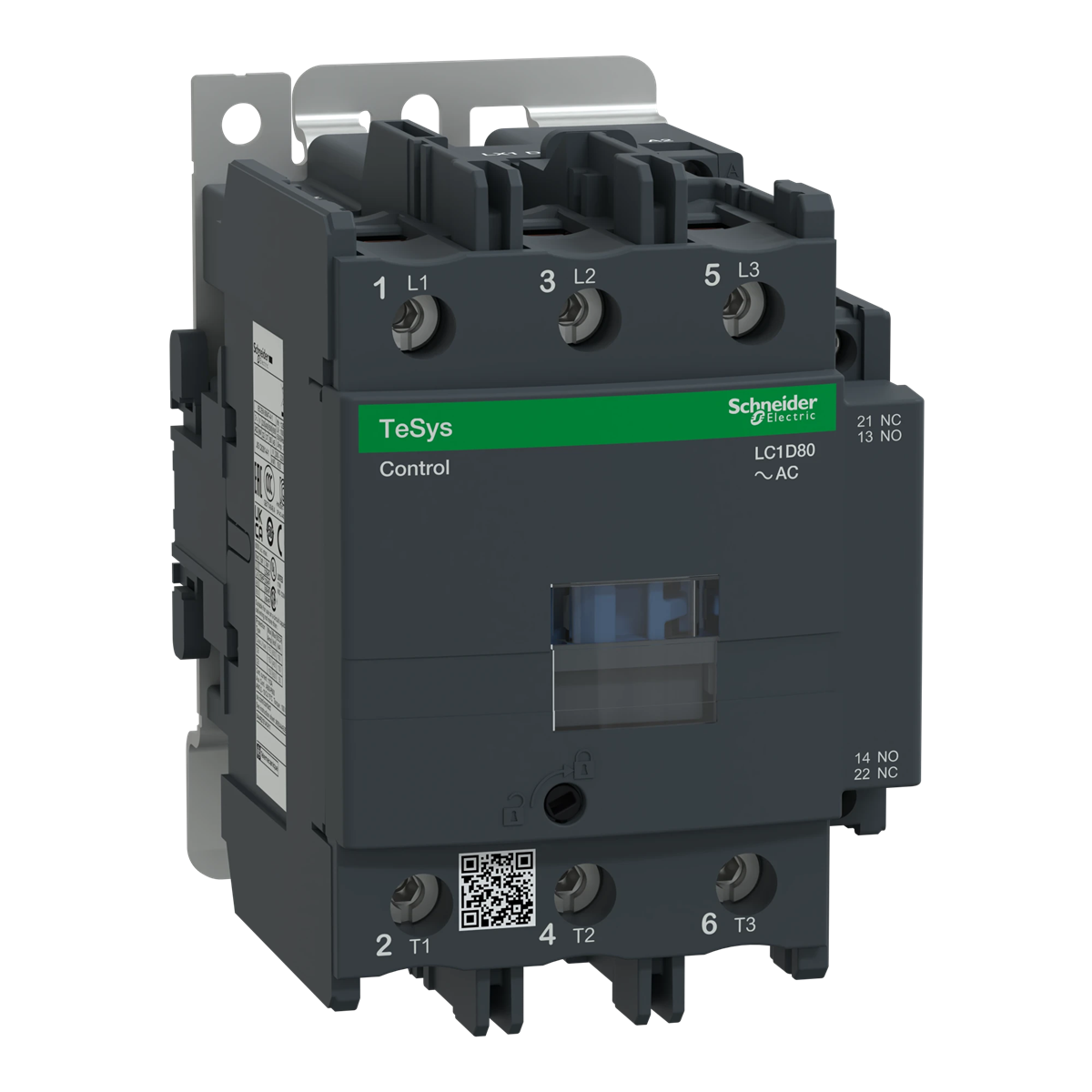

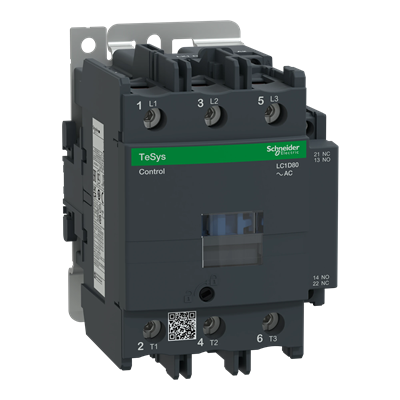

Power contactor TeSys D AC3 80A 3P 1NO 1NC coil 48VAC box terminals LC1D80E7
local index:
ATA311SCHN
Catalog No:
LC1D80E7
EAN code:
3389110440522
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles: 3
Control circuit voltage [V]: 48
Contact: 1NO+1NC
Price:
250,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 80A 3P 1NO 1NC coil 48VAC box terminals
Technical data
-
Number of poles3
-
Contact1NO+1NC
-
PKWIU27.12.24.0
-
Control circuit voltage [V]48
-
Rated operational current [A]80
Other technical data
-
Rated control supply voltage AC 50 Hz48 ... 48 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V80 A
-
Rated operation current Ie at AC-4, 400 V32 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz48 ... 48 V
-
Rated operation current Ie at AC-1, 400 V125 A
-
Rated operation power at AC-3, 400 V37 kW
-
Rated operation power at AC-4, 400 V15 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
