Power Contactor TeSys D AC3 80A 3P 1NO 1NC Coil 380VAC Box Terminals LC1D80Q7

Name: Power Contactor TeSys D AC3 80A 3P 1NO 1NC Coil 380VAC Box Terminals
Brand: SCHNEIDER ELECTRIC
SKU: ATA616SCHN
Price: 310.92 PLN

local index:

ATA616SCHN

Catalog No:

LC1D80Q7

EAN code:

3389110442861

Power Contactor TeSys D AC3 80A 3P 1NO 1NC Coil 380VAC Box Terminals

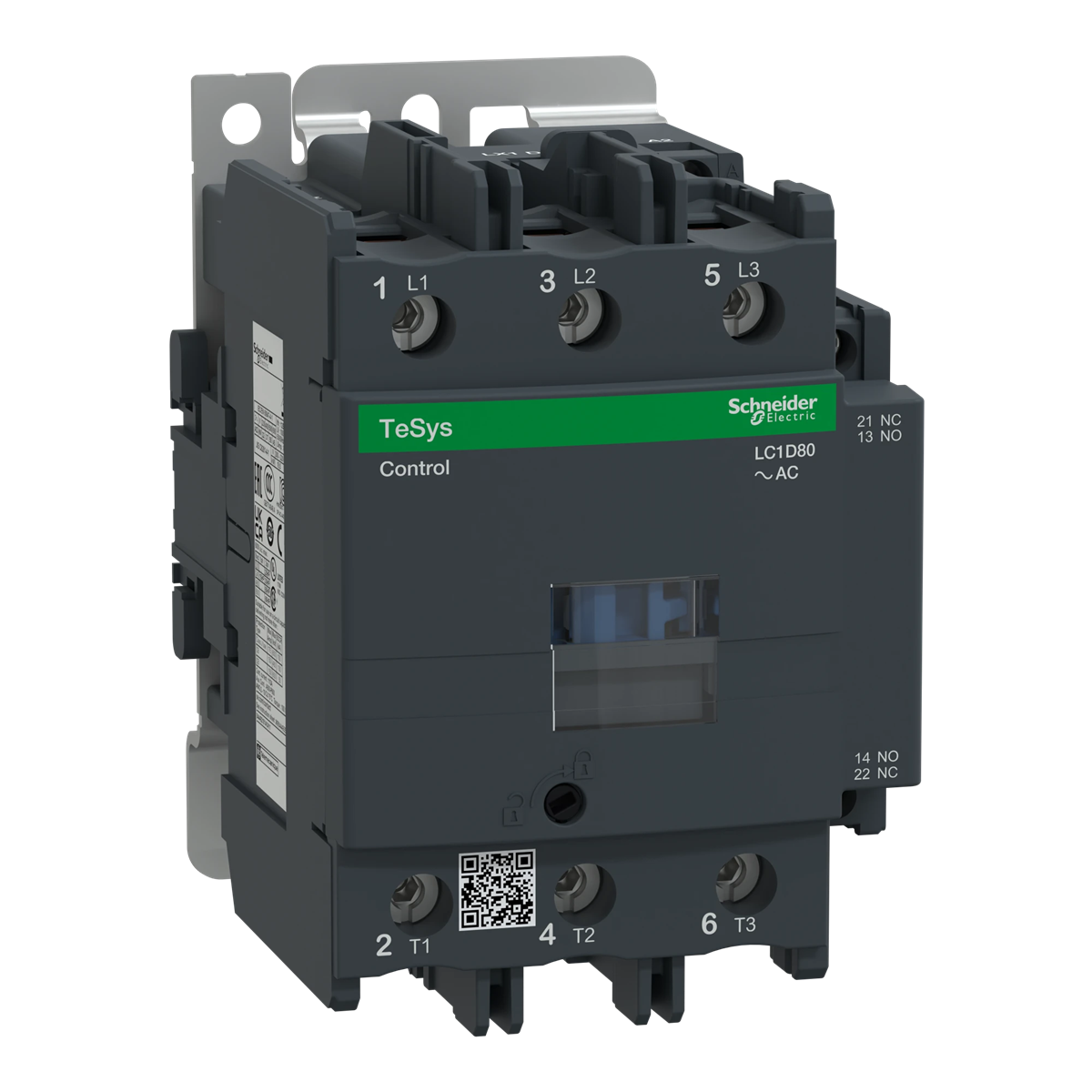

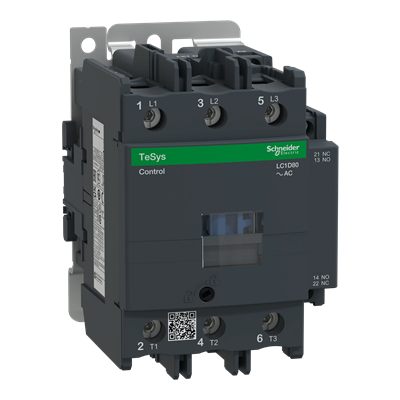

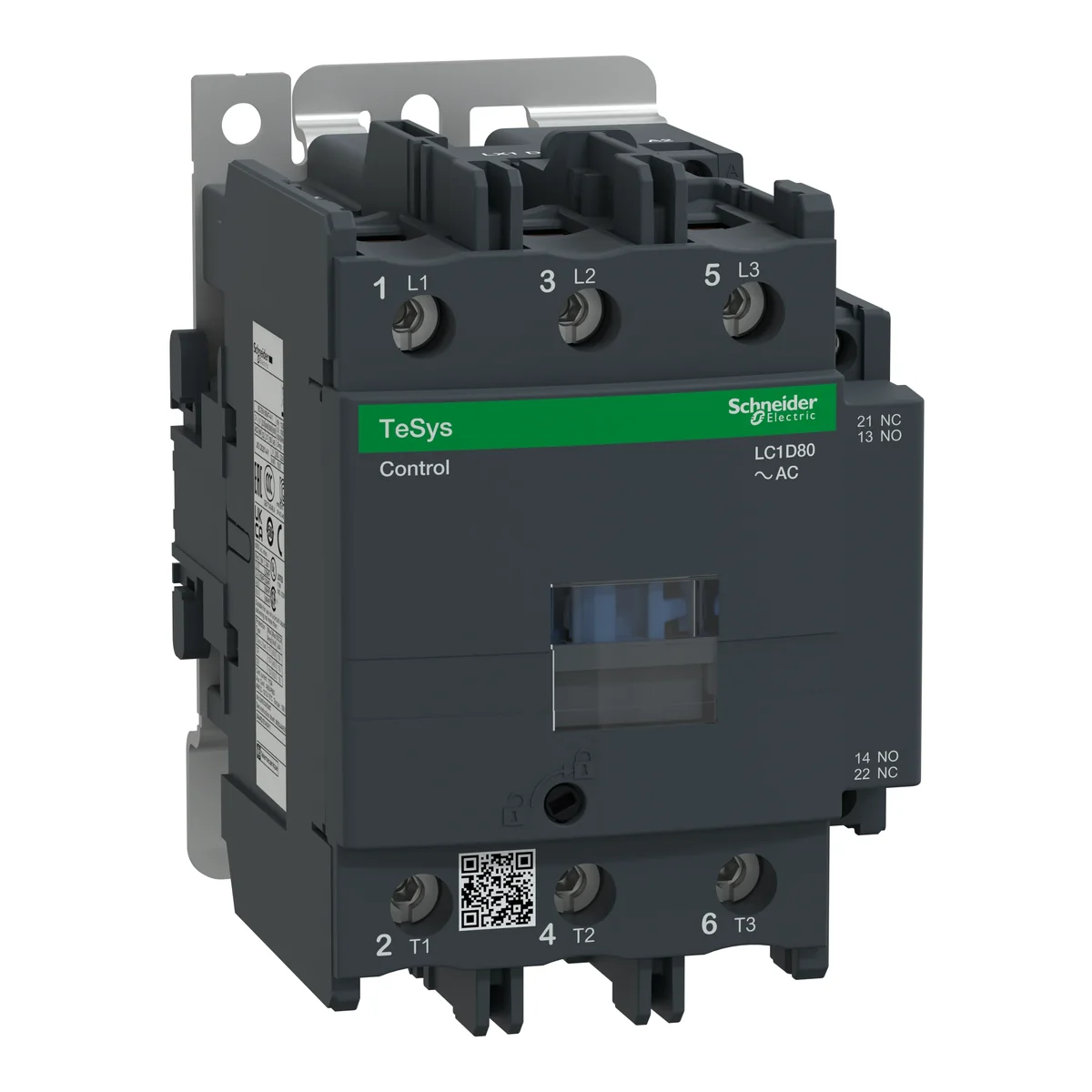

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

AC control voltage [V]: 380

See full description

Price:

310,92 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

2 weeks

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Power Contactor TeSys D AC3 80A 3P 1NO 1NC Coil 380VAC Box Terminals

Technical data

AC control voltage [V]

380

PKWIU

27.12.24.0

Other technical data

Rated control supply voltage AC 50 Hz

380 ... 380 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

80 A
Rated operation current Ie at AC-4, 400 V

32 A
Modular version

No
Number of auxiliary contacts as normally closed contact

1
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

380 ... 380 V
Rated operation current Ie at AC-1, 400 V

125 A
Rated operation power at AC-3, 400 V

37 kW
Rated operation power at AC-4, 400 V

15 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3
