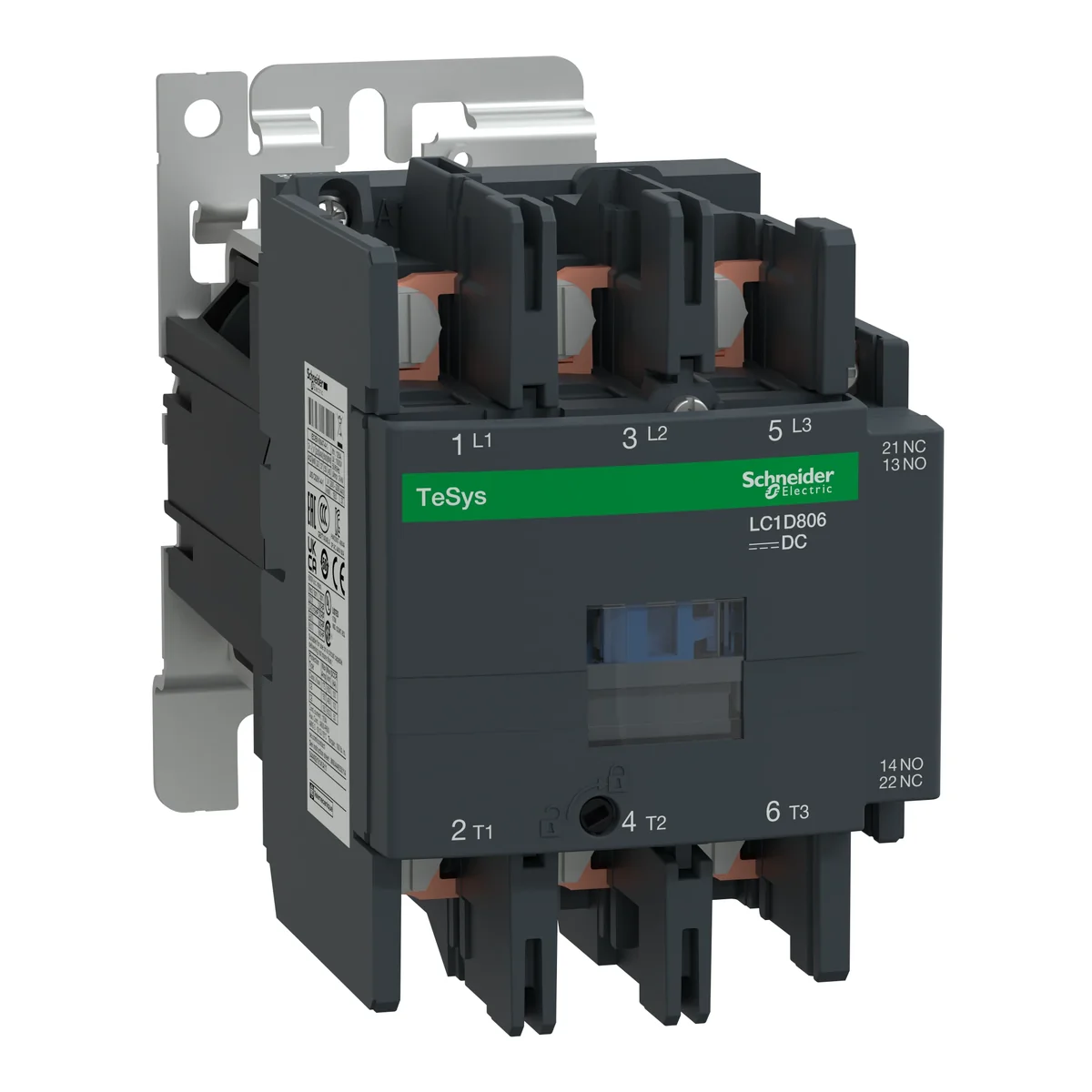

Power contactor TeSys D AC3 80A 3P 1NO 1NC coil 24VDC screw terminals LC1D806BD

local index:
ATD316SCHN
Catalog No:
LC1D806BD
EAN code:
3389110450170
Manufacturer: SCHNEIDER ELECTRIC
DC control voltage [V]: 24
Price:
427,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D AC3 80A 3P 1NO 1NC coil 24VDC screw terminals

Technical data

  • DC control voltage [V]
    24
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    125 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Rated operation power at AC-4, 400 V
    15 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Other
  • Number of normally open contacts as main contact
    3
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    80 A
  • Rated operation current Ie at AC-4, 400 V
    32 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
