Electrical apparatus
contactors
AC contactors

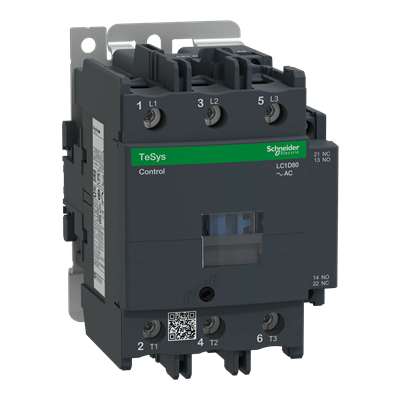

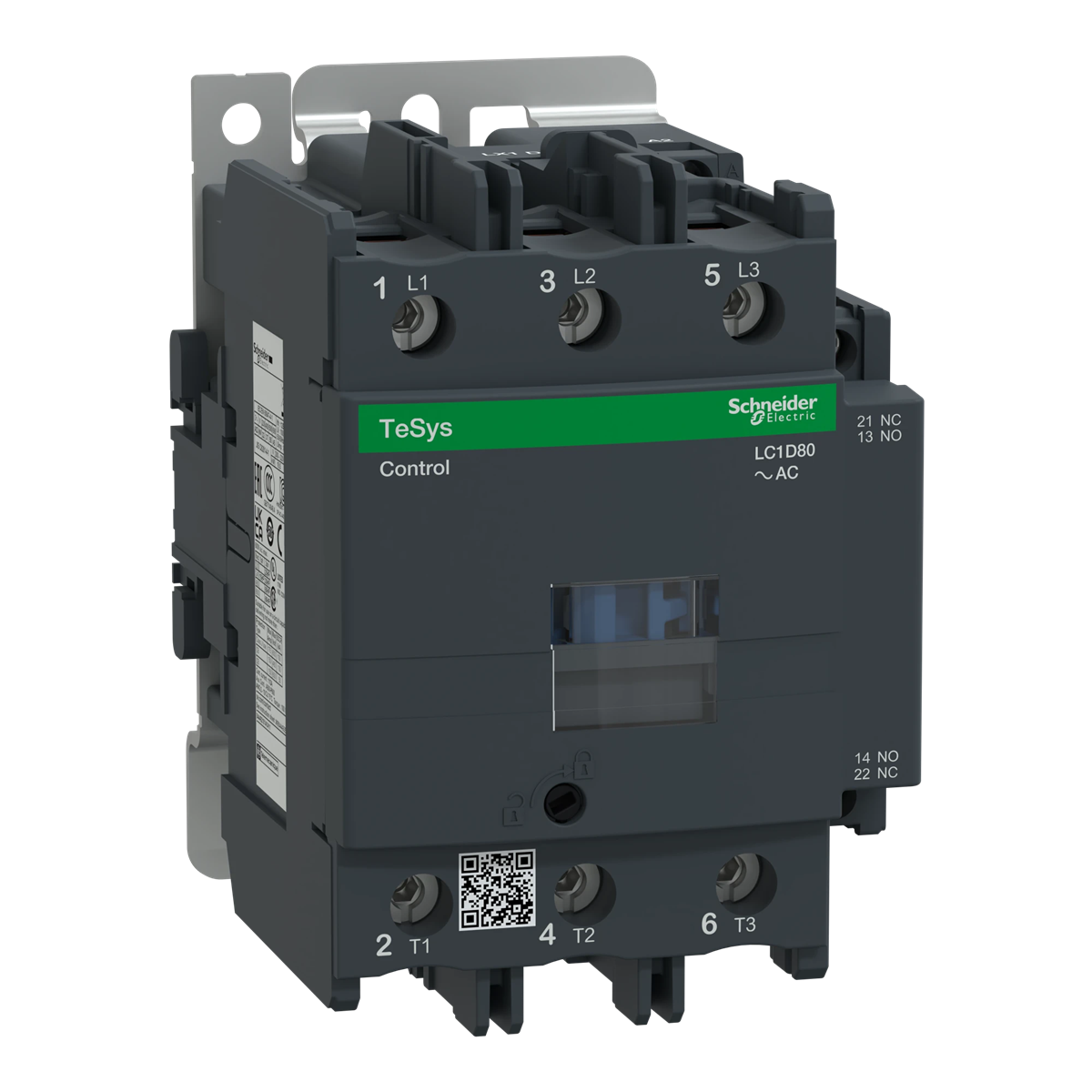

Power Contactor TeSys D AC3 80A 3P 1NO 1NC Coil 220VAC Box Terminals LC1D80M7
local index:
ATA092SCHN
Catalog No:
LC1D80M7
EAN code:
3389110442571
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
Control circuit voltage [V]:
220
Contact:
1NO+1NC
See full description
Price:
295,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power Contactor TeSys D AC3 80A 3P 1NO 1NC Coil 220VAC Box Terminals
Technical data
Number of poles
3
Contact
1NO+1NC
PKWIU
27.12.24.0
Control circuit voltage [V]
220
Rated operational current [A]
80
Other technical data
Rated control supply voltage AC 50 Hz
220 ... 220 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
80 A
Rated operation current Ie at AC-4, 400 V
32 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
220 ... 220 V
Rated operation current Ie at AC-1, 400 V
125 A
Rated operation power at AC-3, 400 V
37 kW
Rated operation power at AC-4, 400 V
15 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
PP_EU_Doc_LC.D80-95_SC16042702I.docx.pdf
