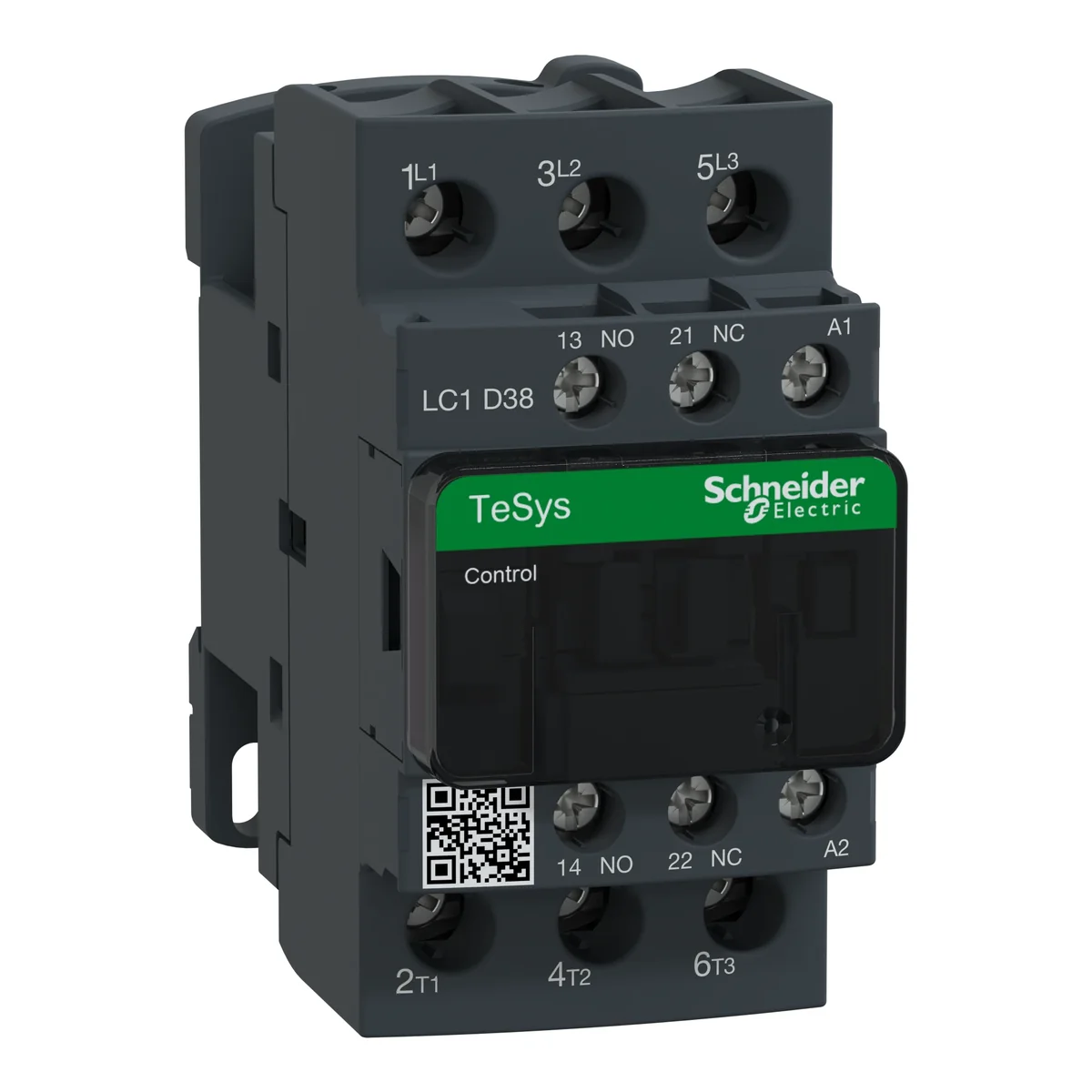

Power Contactor TeSys D AC3 38A 3P 1NO 1NC Coil 440VAC Box Terminals LC1D38R7

local index:
ATA421SCHN
Catalog No:
LC1D38R7
EAN code:
3389110352665
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 440
Price:
133,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power Contactor TeSys D AC3 38A 3P 1NO 1NC Coil 440VAC Box Terminals

Technical data

  • AC control voltage [V]
    440
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    440 ... 440 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    38 A
  • Rated operation current Ie at AC-4, 400 V
    18 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    440 ... 440 V
  • Rated operation current Ie at AC-1, 400 V
    50 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated operation power at AC-4, 400 V
    7.5 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
