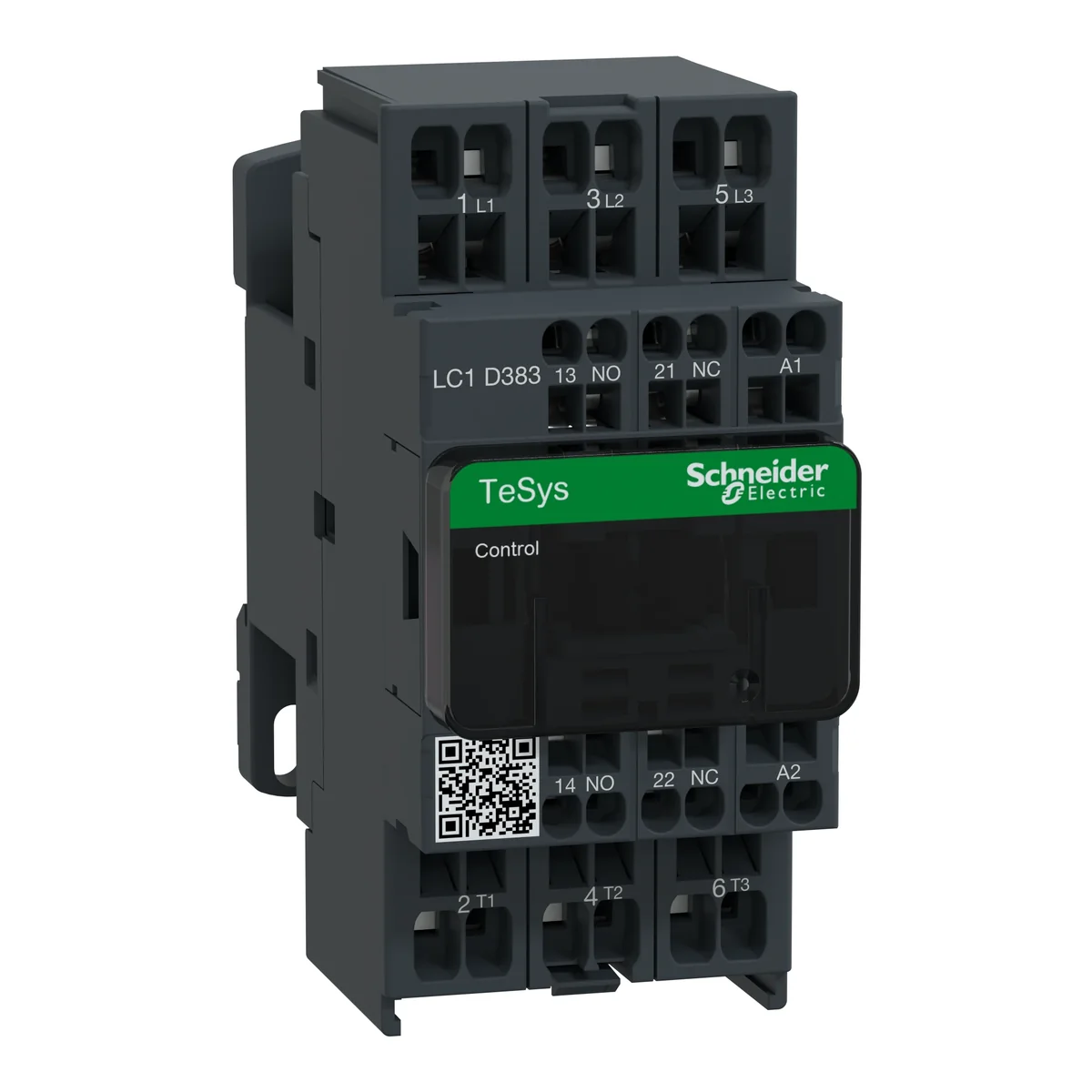

Name: Power Contactor TeSys D AC3 38A 3P 1NO 1NC Coil 230VAC Spring Terminals
Brand: SCHNEIDER ELECTRIC
SKU: ATA413SCHN
Price: 213.44 PLN

AC control voltage [V]

230

PKWIU

27.12.24.0

Other technical data

Rated control supply voltage AC 50 Hz

230 ... 230 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

38 A
Rated operation current Ie at AC-4, 400 V

18 A
Modular version

No
Number of auxiliary contacts as normally closed contact

1
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

230 ... 230 V
Rated operation current Ie at AC-1, 400 V

50 A
Rated operation power at AC-3, 400 V

18.5 kW
Rated operation power at AC-4, 400 V

7.5 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Spring clamp connection
Number of normally open contacts as main contact

3

Power Contactor TeSys D AC3 38A 3P 1NO 1NC Coil 230VAC Spring Terminals LC1D383P7
