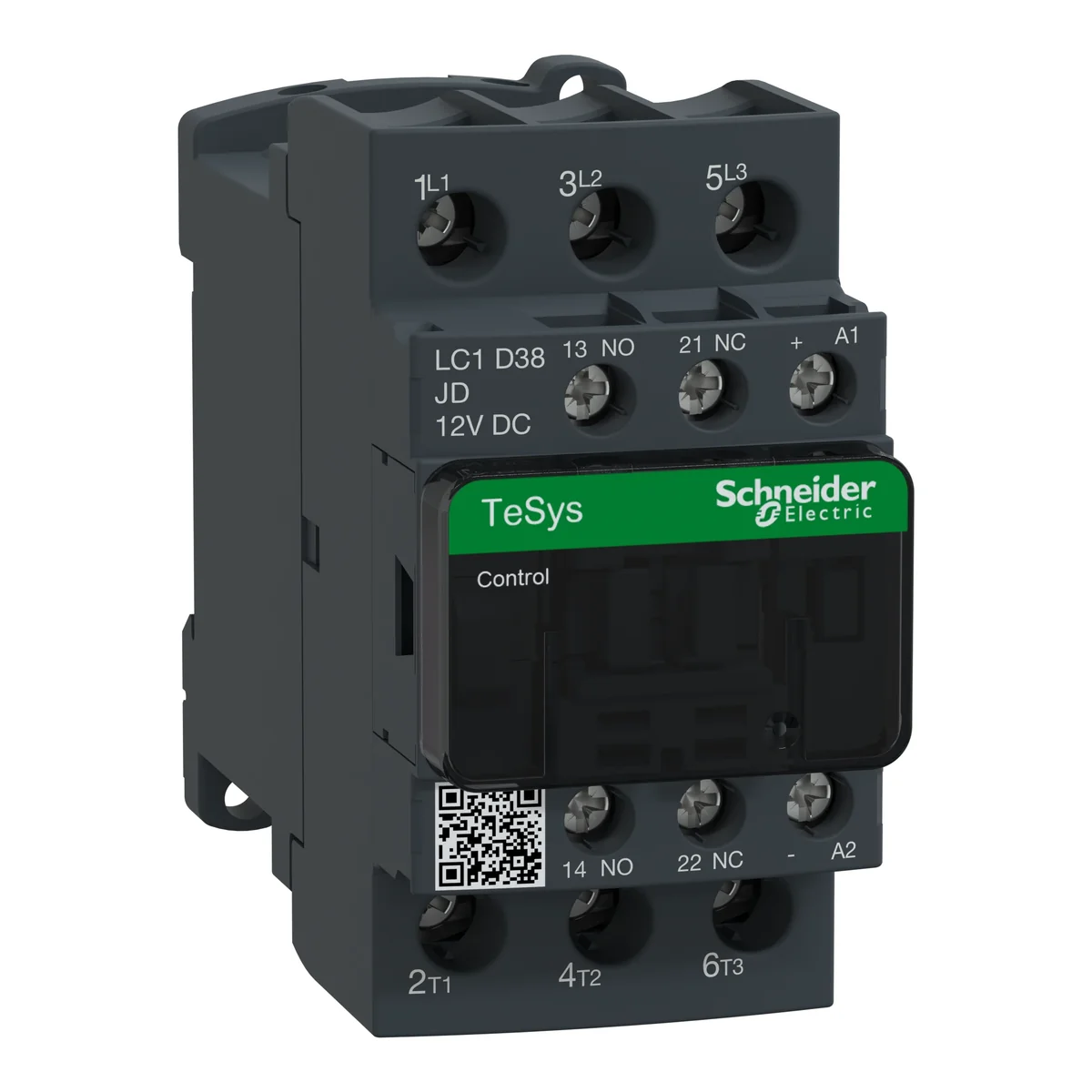

Power contactor TeSys D AC3 38A 3P 1NO 1NC coil 12VDC box terminals LC1D38JD
local index:
ATD218SCHN
Catalog No:
LC1D38JD
EAN code:
3389110360158
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]:
12
See full description
Price:
177,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 38A 3P 1NO 1NC coil 12VDC box terminals
Technical data
DC control voltage [V]
12
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage DC
12 ... 12 V
Rated operation current Ie at AC-1, 400 V
50 A
Rated operation power at AC-3, 400 V
18.5 kW
Rated operation power at AC-4, 400 V
7.5 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
38 A
Rated operation current Ie at AC-4, 400 V
18 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Files to download
Internal PEP ENVPEP110230EN_V2_1.pdf
EoLI_ENVEOLI1102030_V2_1.pdf
PP_EU_Doc_LC.D25-38_SC16040408J.docx.pdf
137830401A55-14.pdf
