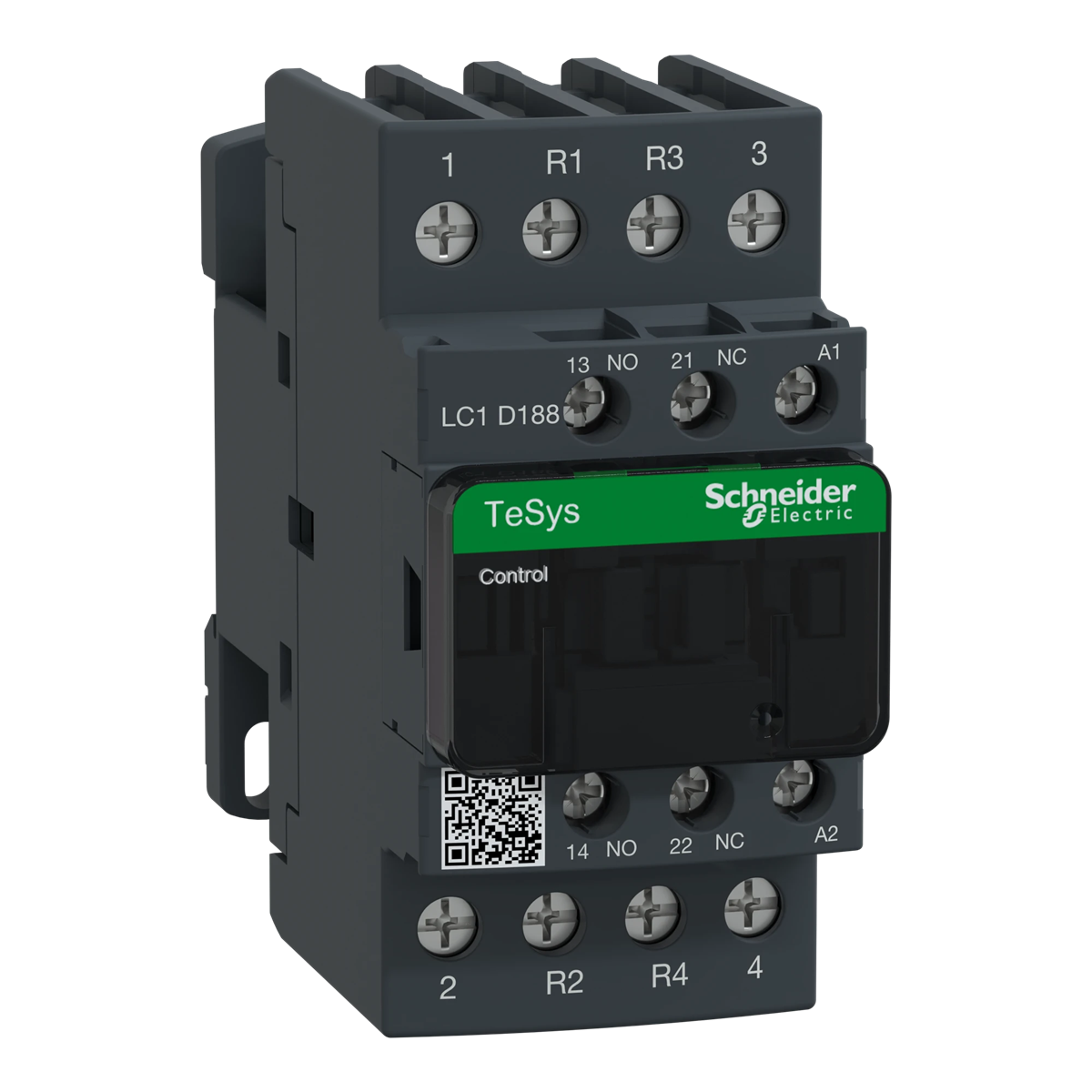

Power contactor TeSys D AC3 32A 4P 2NO 2NC coil 24VAC LC1D188B7

local index:
ATA142SCHN
Catalog No:
LC1D188B7
EAN code:
3389110334173
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 4
Control circuit voltage [V]: 24
Contact: 2NO+/2NC
Price:
84,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D AC3 32A 4P 2NO 2NC coil 24VAC

Technical data

  • Number of poles
    4
  • Contact
    2NO+/2NC
  • PKWIU
    27.12.24.0
  • Control circuit voltage [V]
    24
  • Rated operational current [A]
    18

Other technical data

  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    2
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    32 A
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    2
