Electrical apparatus
contactors
DC contactors

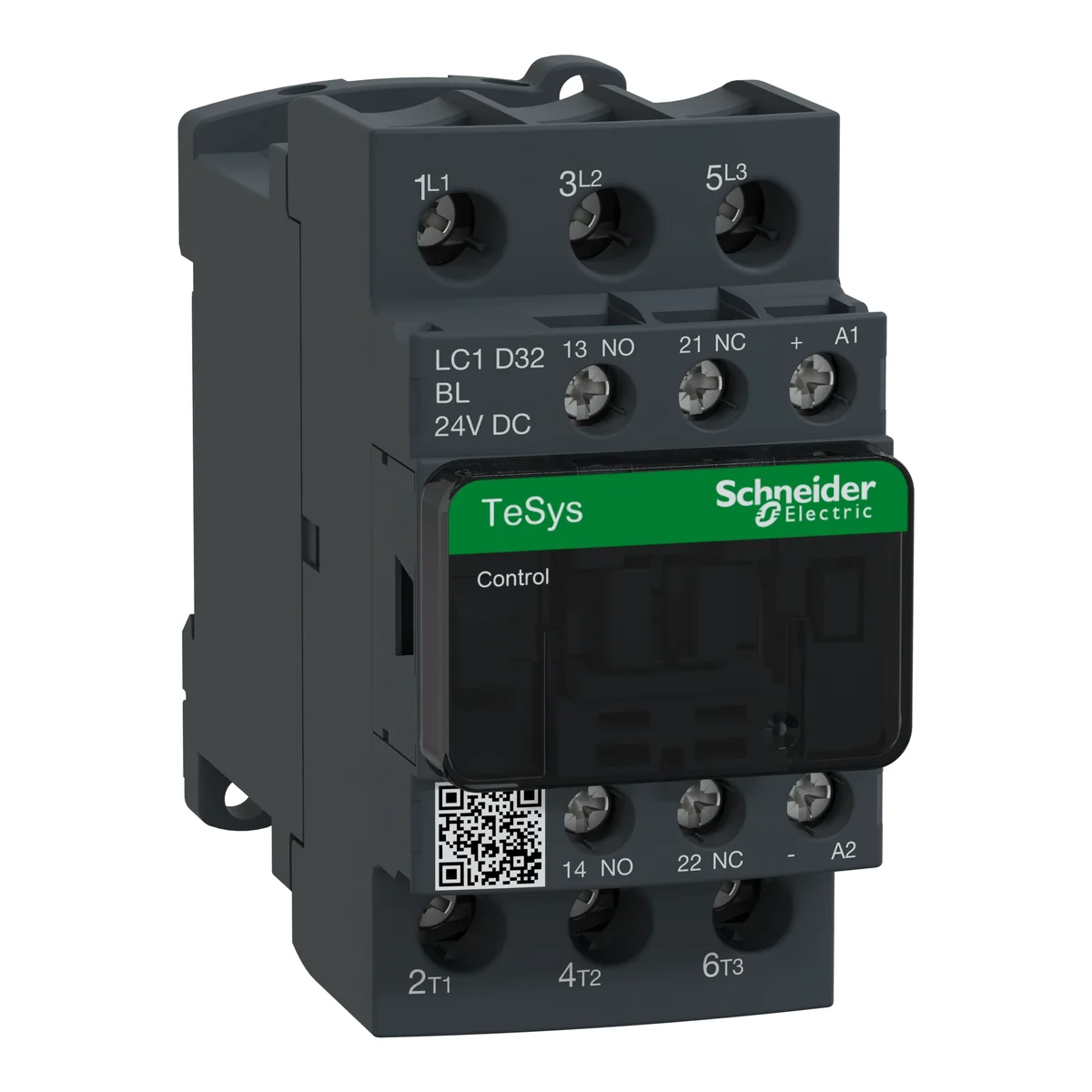

Power contactor TeSys D AC3 32A 3P 1NO 1NC coil 24VDC low consumption LC1D32BL
local index:
ATD060SCHN
Catalog No:
LC1D32BL
EAN code:
3389110361834
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]:
24
See full description
Price:
112,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 32A 3P 1NO 1NC coil 24VDC low consumption
Technical data
DC control voltage [V]
24
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage DC
24 ... 24 V
Rated operation current Ie at AC-1, 400 V
50 A
Rated operation power at AC-3, 400 V
15 kW
Rated operation power at AC-4, 400 V
7.5 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
32 A
Rated operation current Ie at AC-4, 400 V
18 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Files to download
PP_EU_Doc_LC.D25-38_SC16040408J.docx.pdf
137830401A55-14.pdf
