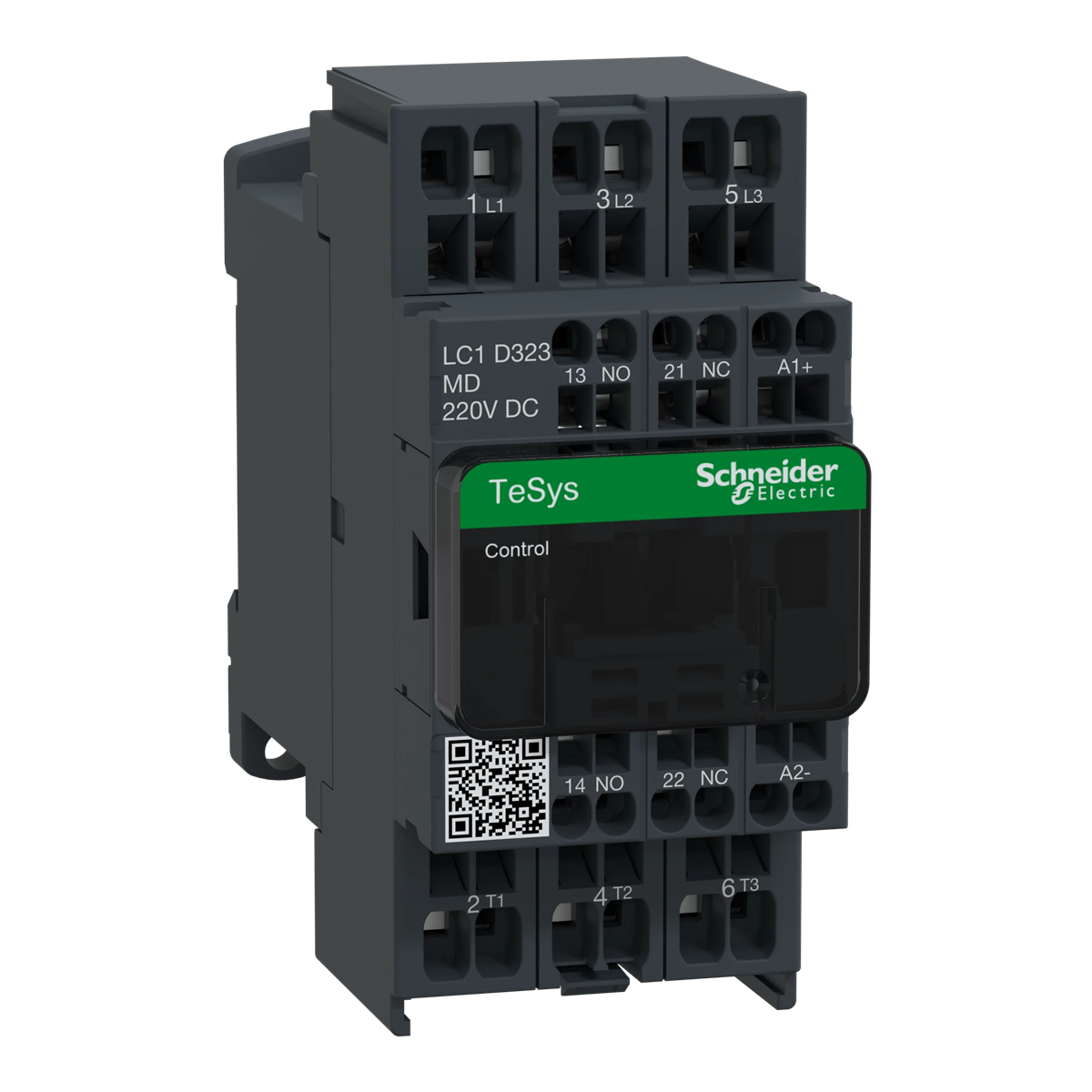

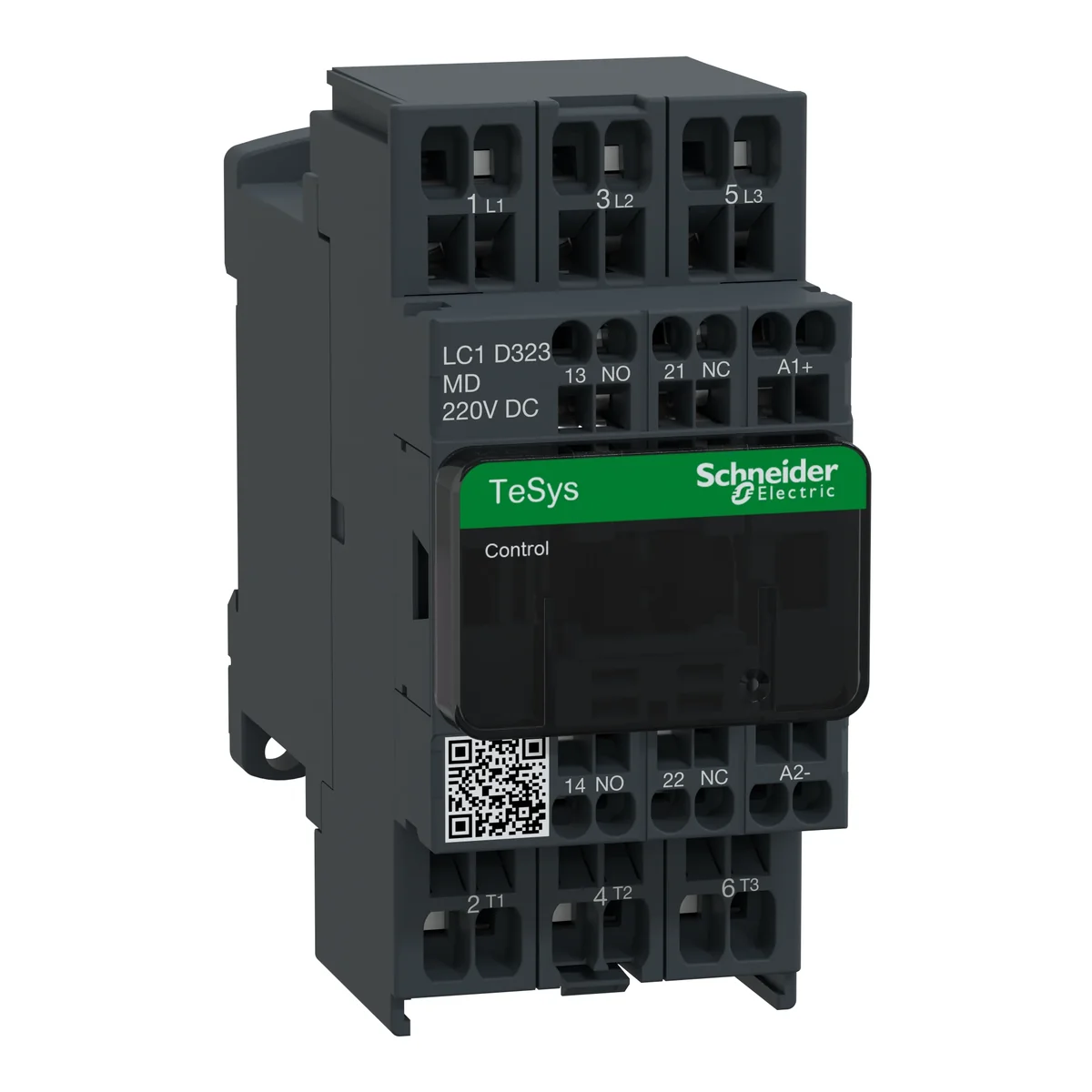

Power Contactor TeSys D AC3 32A 3P 1NO 1NC Coil 220VDC Spring Terminals LC1D323MD
local index:
ATD213SCHN
Catalog No:
LC1D323MD
EAN code:
3389110807868
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 220
Price:
169,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power Contactor TeSys D AC3 32A 3P 1NO 1NC Coil 220VDC Spring Terminals
Technical data
-
DC control voltage [V]220
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC220 ... 220 V
-
Rated operation current Ie at AC-1, 400 V40 A
-
Rated operation power at AC-3, 400 V15 kW
-
Rated operation power at AC-4, 400 V7.5 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitSpring clamp connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V32 A
-
Rated operation current Ie at AC-4, 400 V18 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Tax identification number5220011965
-
GLN5900009931556
