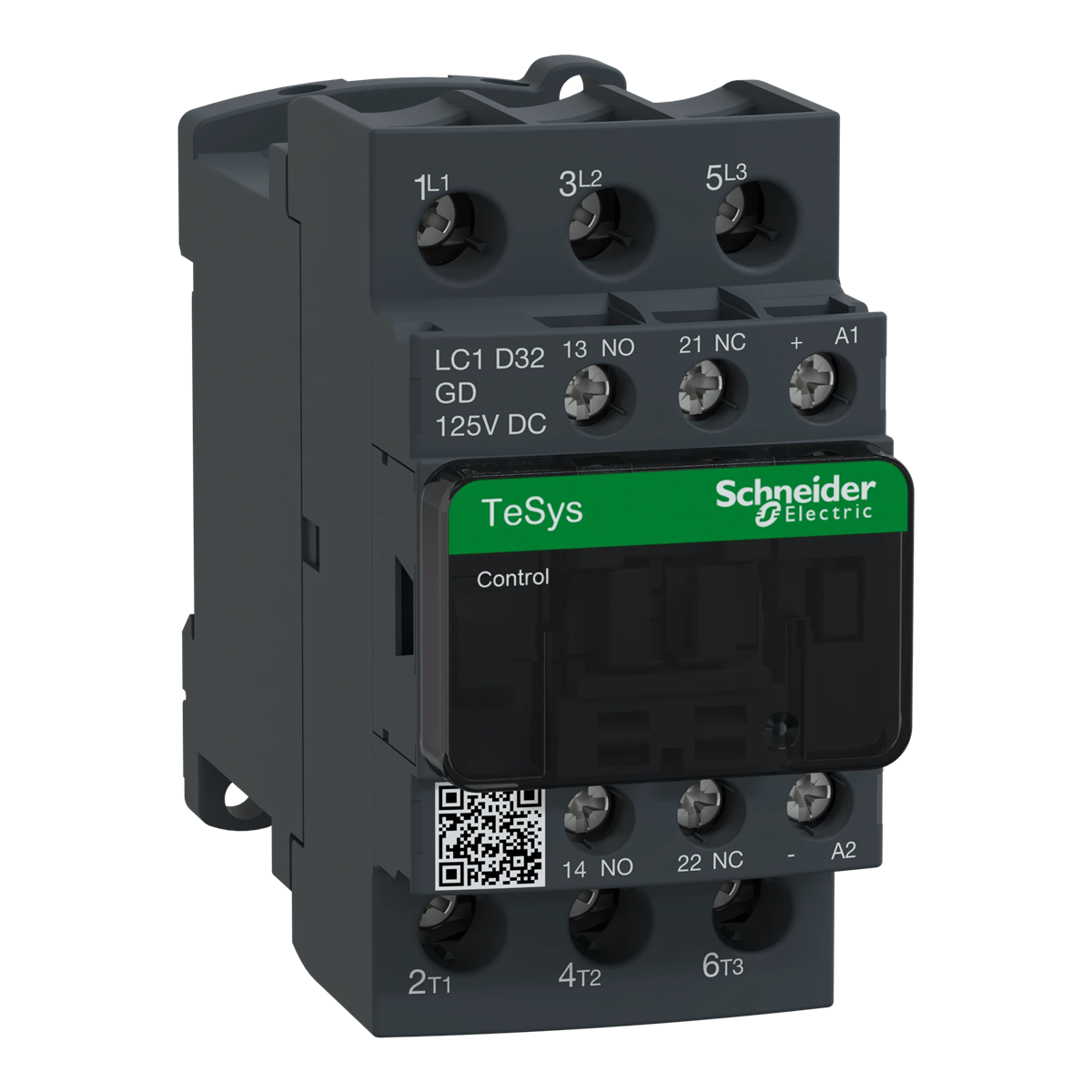

Power contactor TeSys D AC3 32A 3P 1NO 1NC coil 125VDC box terminals LC1D32GD
local index:
ATD211SCHN
Catalog No:
LC1D32GD
EAN code:
3389110357615
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 125
Price:
154,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 32A 3P 1NO 1NC coil 125VDC box terminals
Technical data
-
DC control voltage [V]125
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC125 ... 125 V
-
Rated operation current Ie at AC-1, 400 V50 A
-
Rated operation power at AC-3, 400 V15 kW
-
Rated operation power at AC-4, 400 V7.5 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V32 A
-
Rated operation current Ie at AC-4, 400 V18 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
