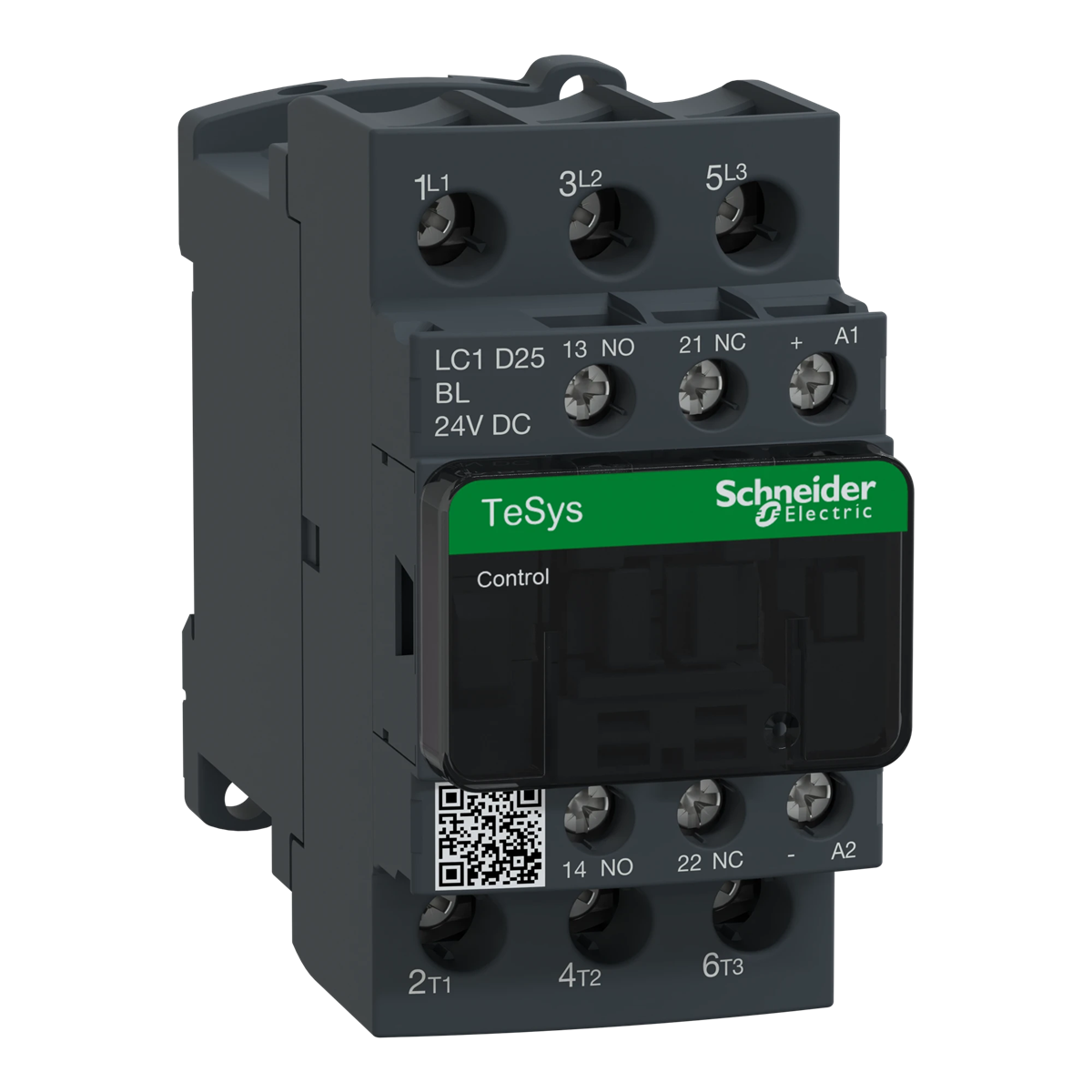

Power contactor TeSys D AC3 25A 3P 1NO 1NC coil 24VDC low consumption LC1D25BL
local index:
ATD059SCHN
Catalog No:
LC1D25BL
EAN code:
3389110361773
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 24
Price:
83,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 25A 3P 1NO 1NC coil 24VDC low consumption
Technical data
-
DC control voltage [V]24
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V40 A
-
Rated operation power at AC-3, 400 V11 kW
-
Rated operation power at AC-4, 400 V5.5 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V25 A
-
Rated operation current Ie at AC-4, 400 V12 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
