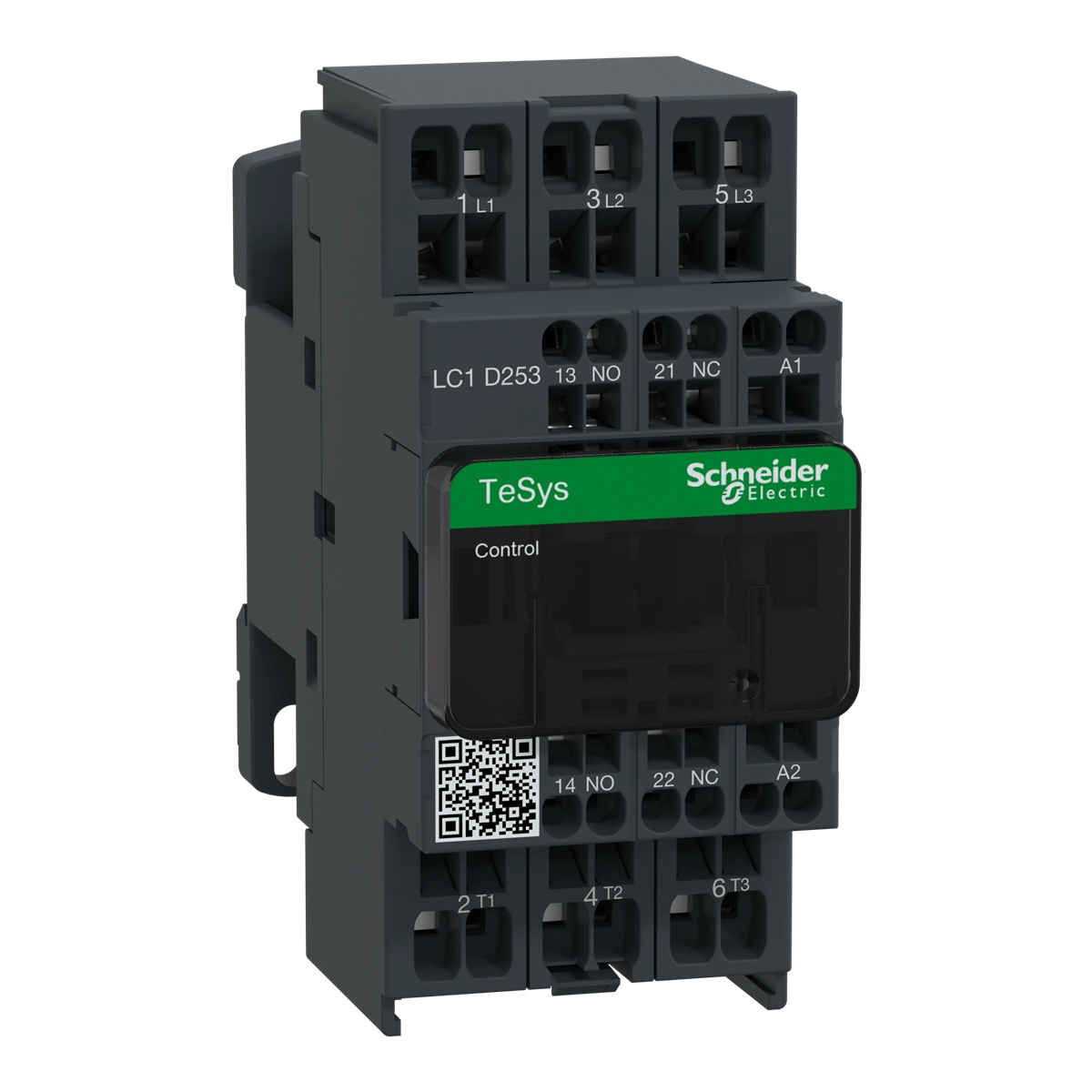

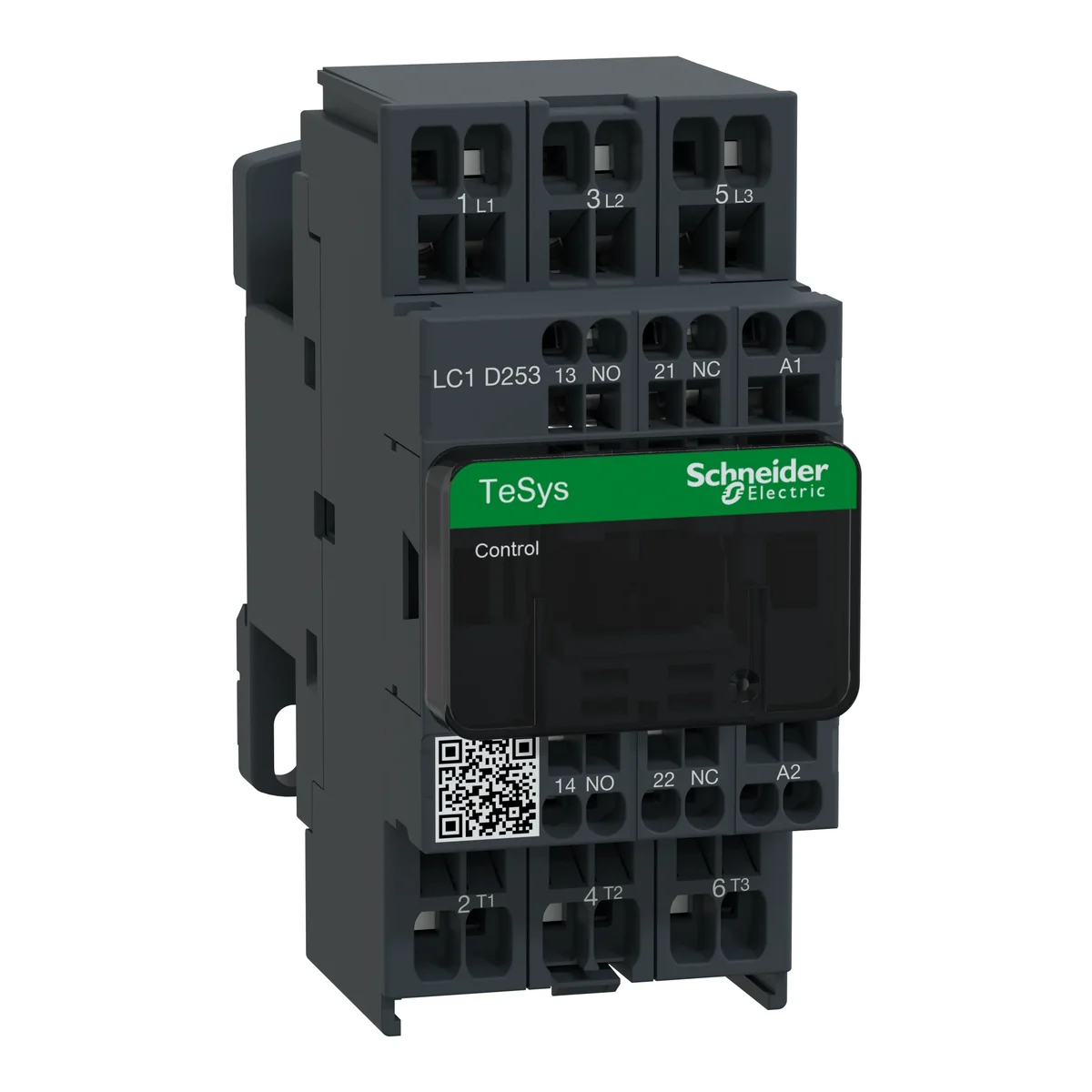

Power Contactor TeSys D AC3 25A 3P 1NO 1NC Coil 230VAC Spring Terminals LC1D253P7

local index:
ATA377SCHN
Catalog No:
LC1D253P7
EAN code:
3389110804386
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 230
Price:
81,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power Contactor TeSys D AC3 25A 3P 1NO 1NC Coil 230VAC Spring Terminals

Technical data

  • AC control voltage [V]
    230
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    25 A
  • Rated operation current Ie at AC-4, 400 V
    12 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Rated operation current Ie at AC-1, 400 V
    40 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation power at AC-4, 400 V
    5.5 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Spring clamp connection
  • Number of normally open contacts as main contact
    3
