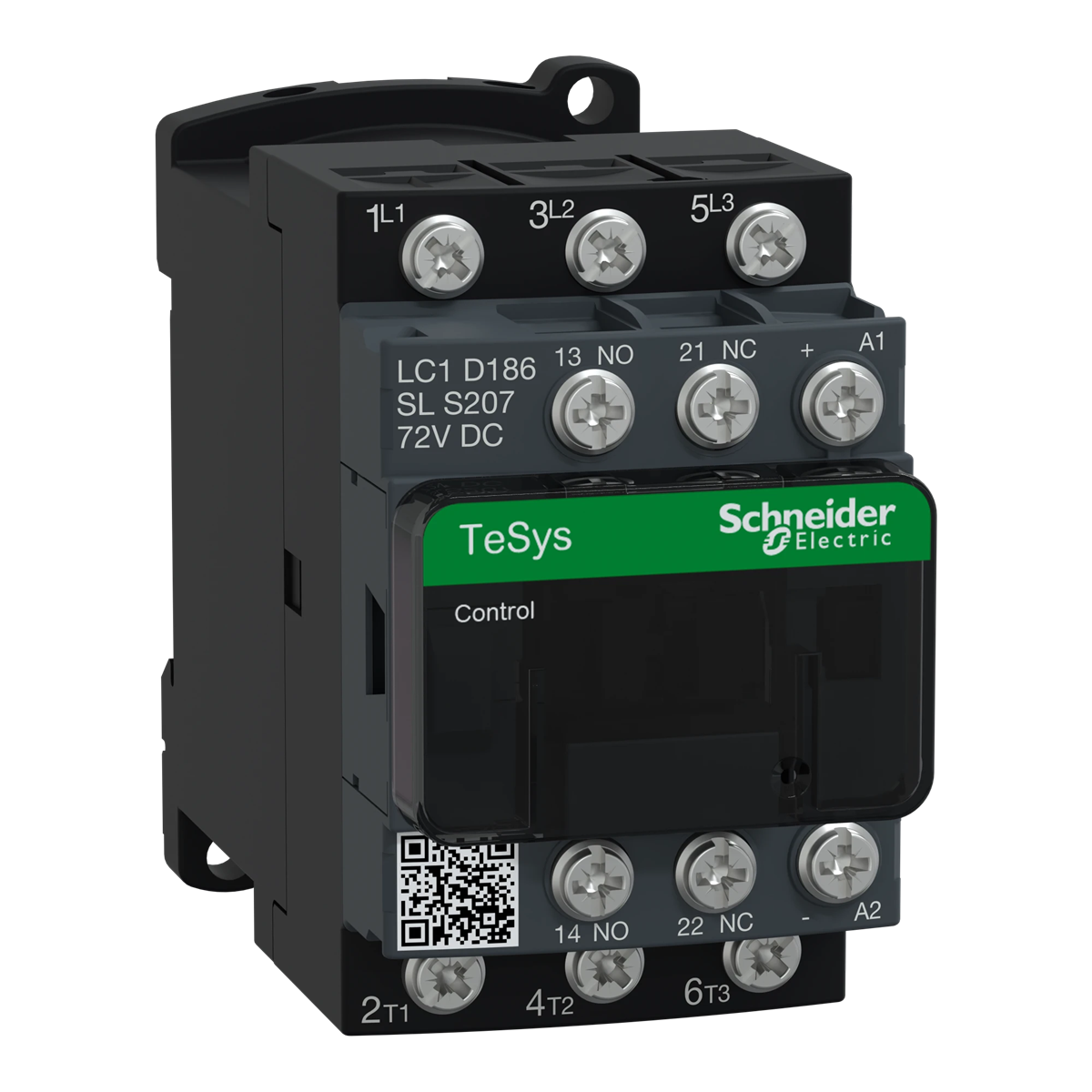

Power Contactor TeSys D AC3 18A 3P 1NO 1NC Railway Coil 72VDC Low Power LC1D186SLS207
Lokaler Index:
ATD306SCHN
Katalognummer:
LC1D186SLS207
EAN-Code:
3389118234437
Hersteller:
SCHNEIDER ELECTRIC
DC control voltage [V]: 72
Preis:
305,78 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Power Contactor TeSys D AC3 18A 3P 1NO 1NC Railway Coil 72VDC Low Power
Technische Daten
-
DC control voltage [V]72
-
PKWIU27.12.24.0
Weitere technische Daten
-
Rated control supply voltage DC72 ... 72 V
-
Rated operation current Ie at AC-1, 400 V32 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Rated operation power at AC-4, 400 V4 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitOther
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V18 A
-
Rated operation current Ie at AC-4, 400 V9 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
Hersteller-Details
-
HerstellerSchneider Electric Polska Sp. z o.o.
-
Adresse02-673 Warszawa ul. Konstruktorska 12
-
Steueridentifikationsnummer5220011965
