SCHNEIDER ELECTRIC

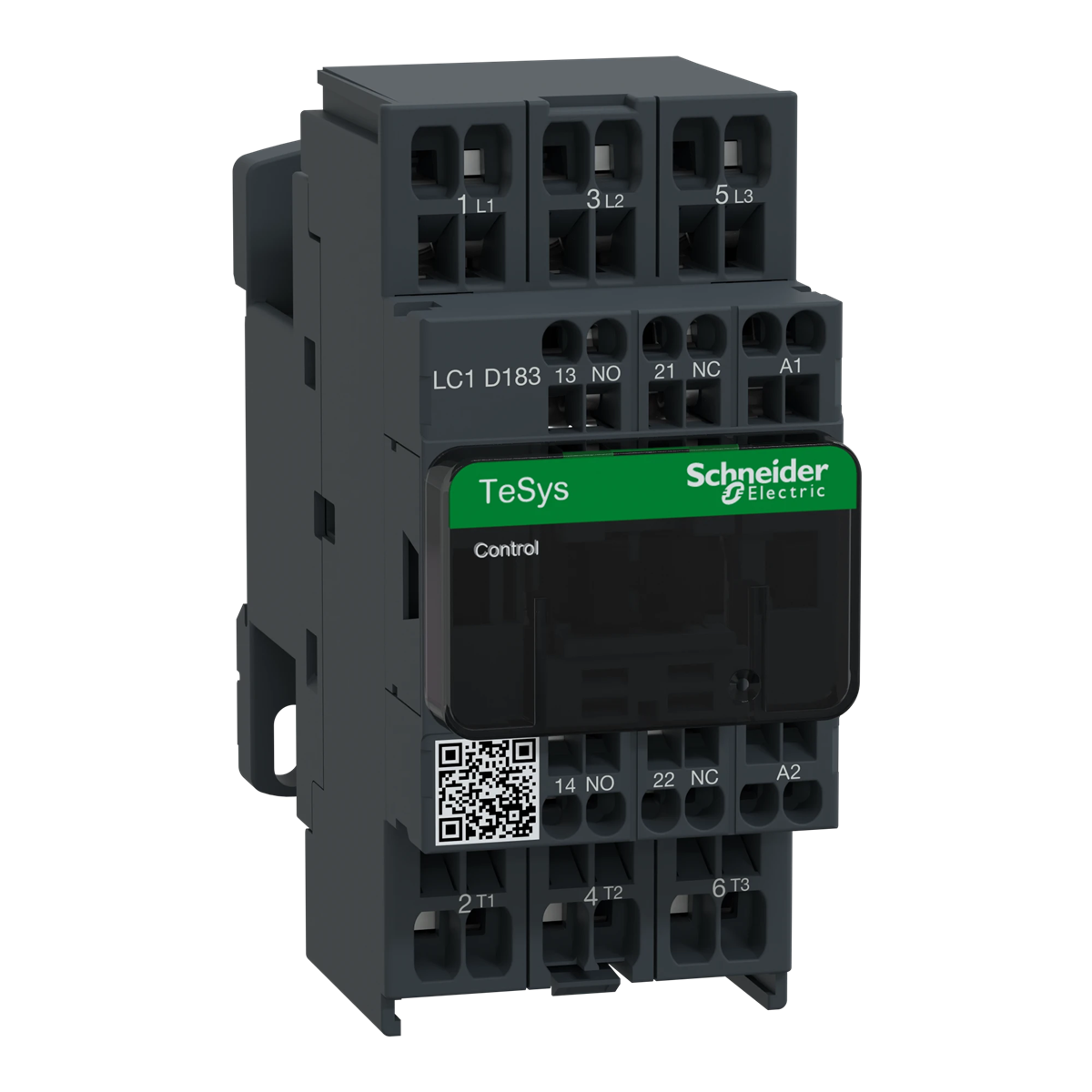

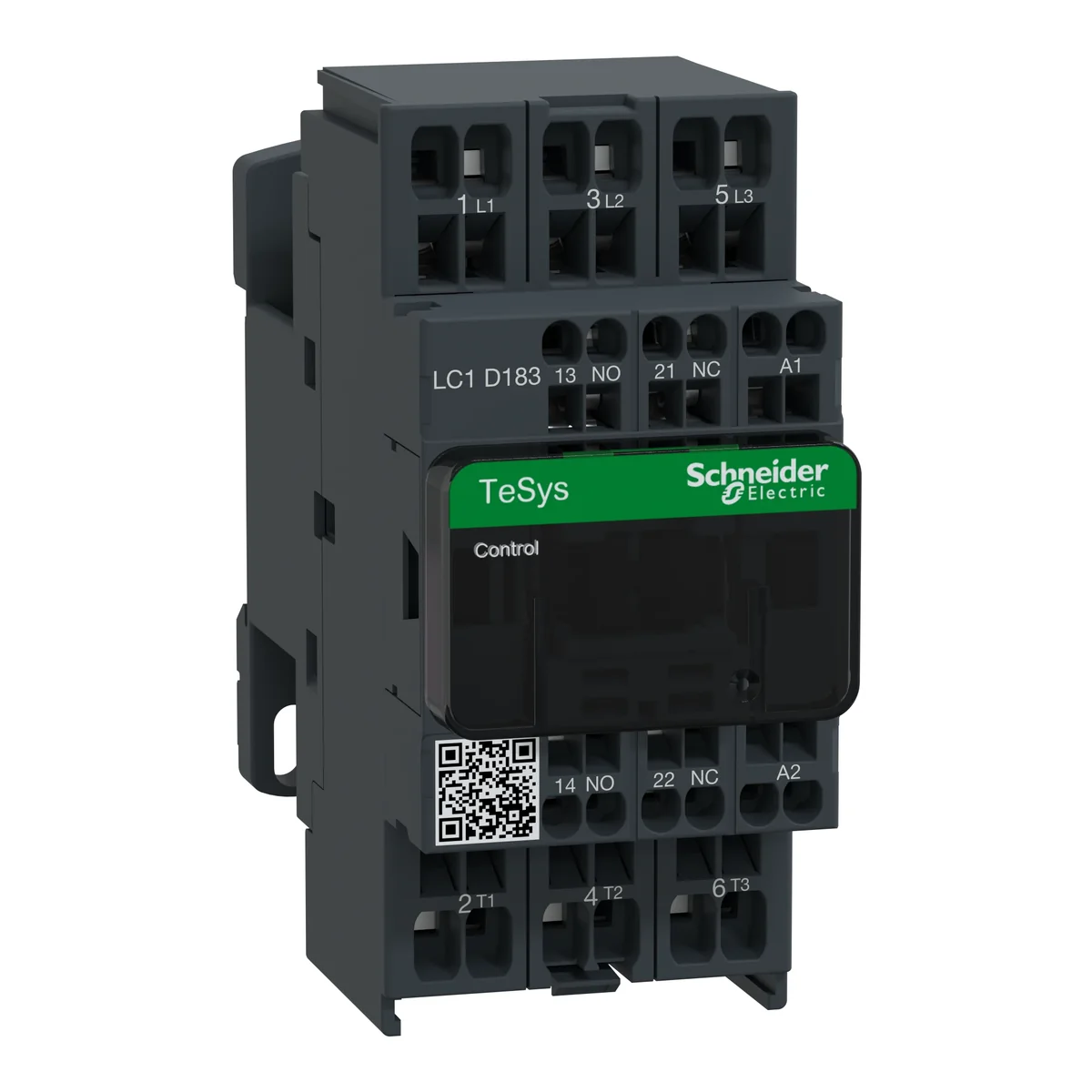

Power contactor TeSys D AC3 18A 3P 1NO 1NC coil 48VAC LC1D183E7

local index:
ATA168SCHN
Catalog No:
LC1D183E7
EAN code:
3389110803679
Price:
59,00 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Power contactor TeSys D AC3 18A 3P 1NO 1NC coil 48VAC

Technical data

  • AC control voltage [V]
    48

Other technical data

  • Rated control supply voltage AC 50 Hz
    48 ... 48 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    18 A
  • Rated operation current Ie at AC-4, 400 V
    9 A
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    48 ... 48 V
  • Rated operation current Ie at AC-1, 400 V
    32 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Rated operation power at AC-4, 400 V
    4 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Spring clamp connection
  • Number of normally open contacts as main contact
    3

Catalog cards, diagrams, certificates
